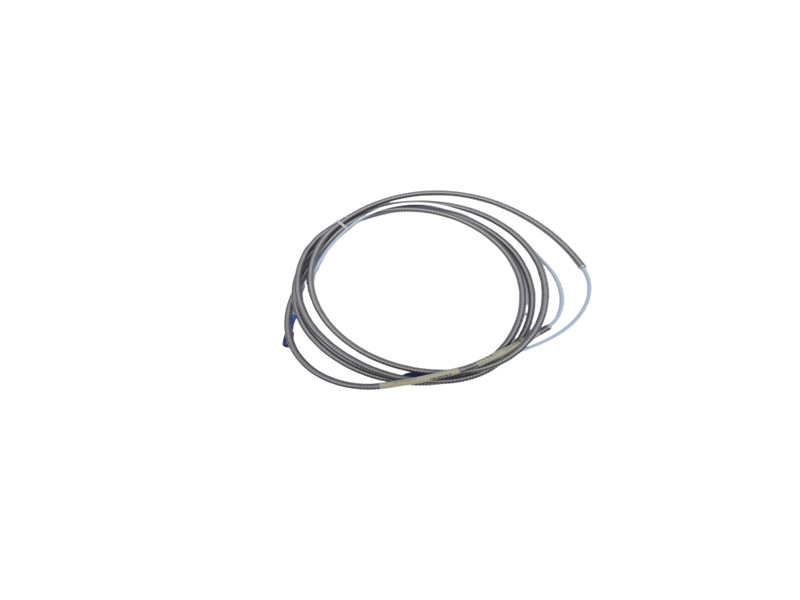

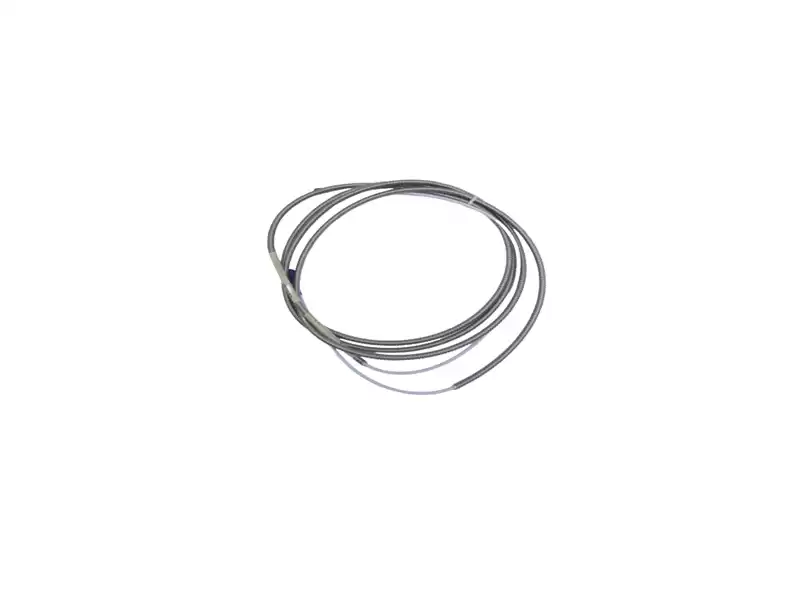

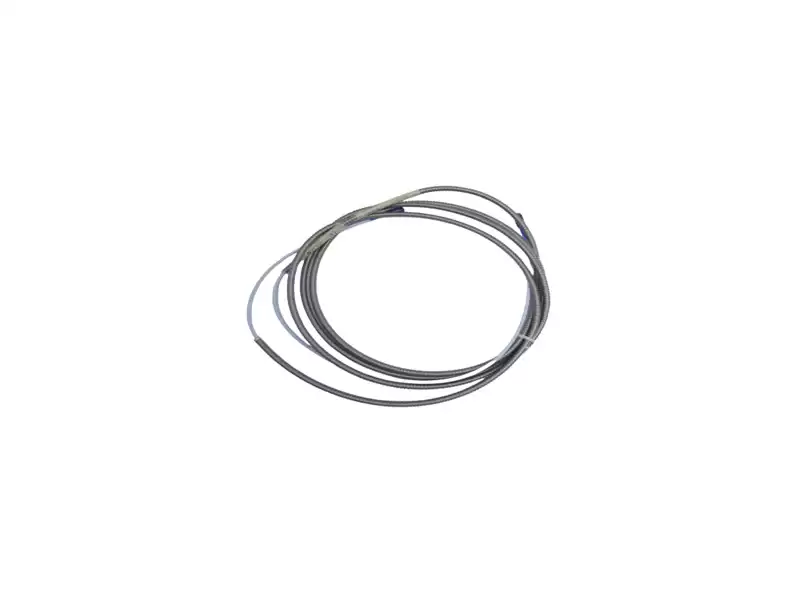

Quick-Order Guide: 330130-045-01-05 4.5 m Armored Extension Cable
The “Stretch” Cable
At 4.5 m, 330130-045-01-05 sits between the popular 4 m and 5 m lengths, giving engineers just enough slack to bridge turbine casings without coiling excess slack inside the junction box.
Armor vs. Cost
Stainless-steel braid (code 01) adds < 20 % mass but eliminates the need for rigid conduit in petro-chemical plants—field data shows 30 % faster install times and zero EMI-related false alarms compared to un-armored runs.
Quick-Check Compatibility
• Works with any 3300 XL 8 mm probe (thread 3/8-24 or M10)
• Pairs natively with 330180-50-05/-51-05 proximitors
• No recalibration required—API 670 “plug-and-play” clause verified
Field Tips
Bend radius ≥ 25 mm keeps capacitive shift below 0.5 %; torque ClickLoc to 0.565 N·m to prevent loosening under 10 kHz turbine harmonics.
Stock Snapshot
Cables ship coiled, not kinked, in antistatic pouches; 4.5 m armored stock ready for same-day dispatch worldwide.
One-Line Bill of Materials
330130-045-01-05 4.5 m armored extension cable (this SKU)
330105-02-12-05-02-05 Reverse-mount 8 mm probe, 3/8-24 UNF
330180-51-05 5 m Proximitor with ATEX/IECEx approvals
3500/42M 140734-02 Four-channel vibration monitor
3500/50M 286566-01 Tachometer module for zero-speed & Keyphasor
3500/22M 288055-01 Rack interface module for Ethernet SCADA
149992-01 24 V dc DIN-rail power supply
