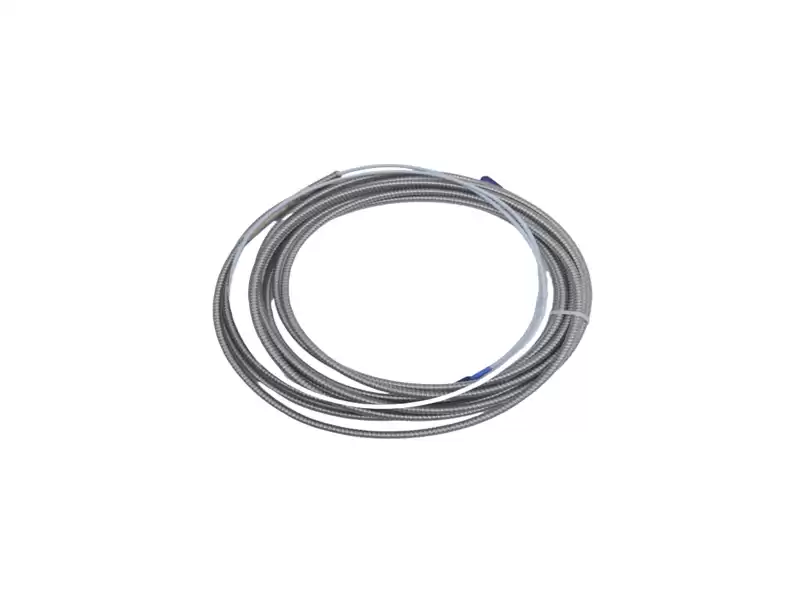

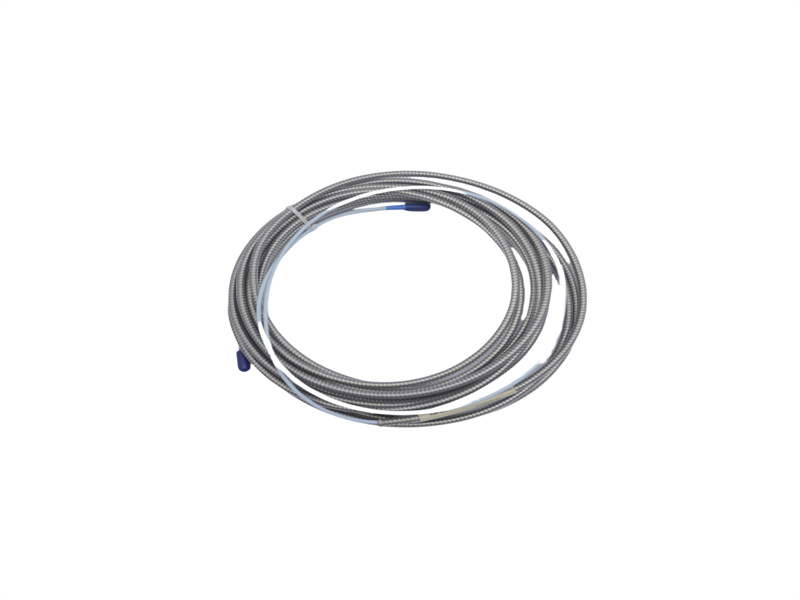

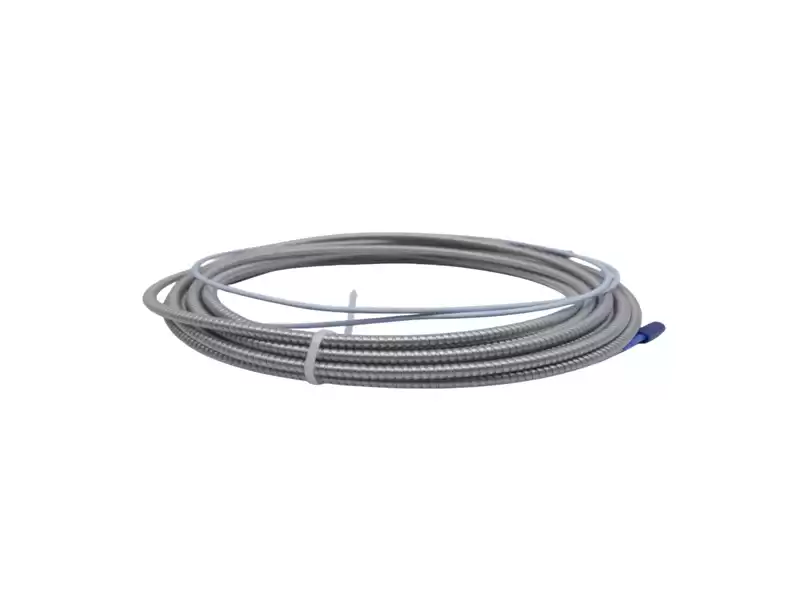

Field Sheet: Bently Nevada 330130-080-01-05 3300 XL 8 mm Armored Extension Cable
Purpose
330130-080-01-05 is the 8-metre armored extension cable that joins a 3300 XL 8 mm probe to its Proximitor without recalibration.
The stainless-steel braid replaces conduit and survives refinery wash-downs, vibration, and EMI.
Core Datasheet Values
|
Parameter
|
Specification
|
|
Length (electrical)
|
8 m (26.2 ft)
|
|
Jacket/armor
|
FEP-insulated, stainless-steel braid (code 01)
|
|
Temperature range
|
–52 °C … +177 °C continuous
|
|
Frequency response
|
0 – 10 kHz, < 1 % amplitude loss
|
|
Capacitance
|
64 pF/m nominal
|
|
Connector
|
ClickLoc miniature coax, gold-plated, 0.565 N·m
|
|
Agency approvals
|
CSA, ATEX, IECEx (suffix 05)
|
Installation Notes
• Bend radius ≥ 25 mm to maintain 75 Ω impedance.
• Straight-run only—no kinks within 100 mm of connector.
• 16–24 AWG tinned triad recommended for field wiring up to 305 m total loop.
Typical Applications
• Steam-turbine bearing vibration loops on Frame 7/9 E-class gas turbines.
• Compressor surge detection on offshore FPSOs.
• Over-speed protection for hydro-pump drives.
Related Bently Nevada Components (same-day stock)
330105-00-08-10-02-05 8 mm probe, 1 m integral cable
330180-50-05 5 m Proximitor system
3500/42M Four-channel vibration monitor
149992-01 24 Vdc DIN-rail power supply
137491-02 Aluminum probe clamp bracket
