1. One-line summary

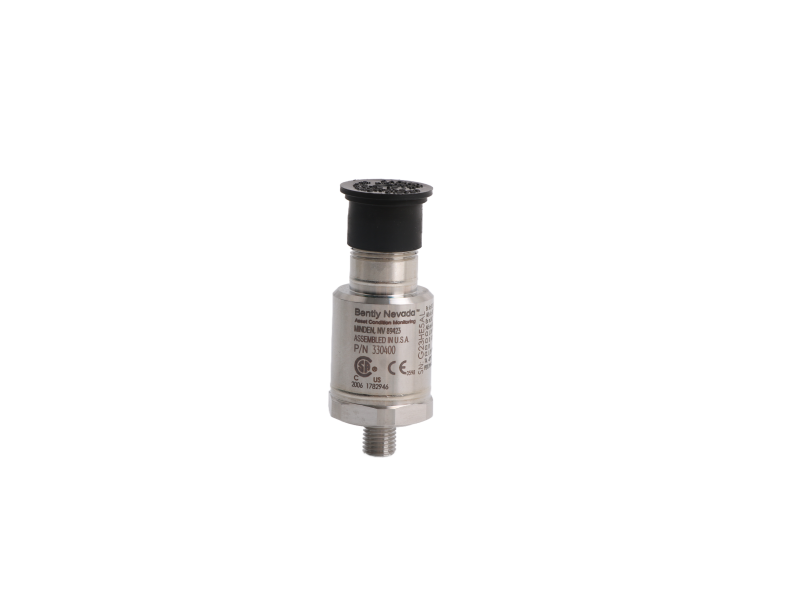

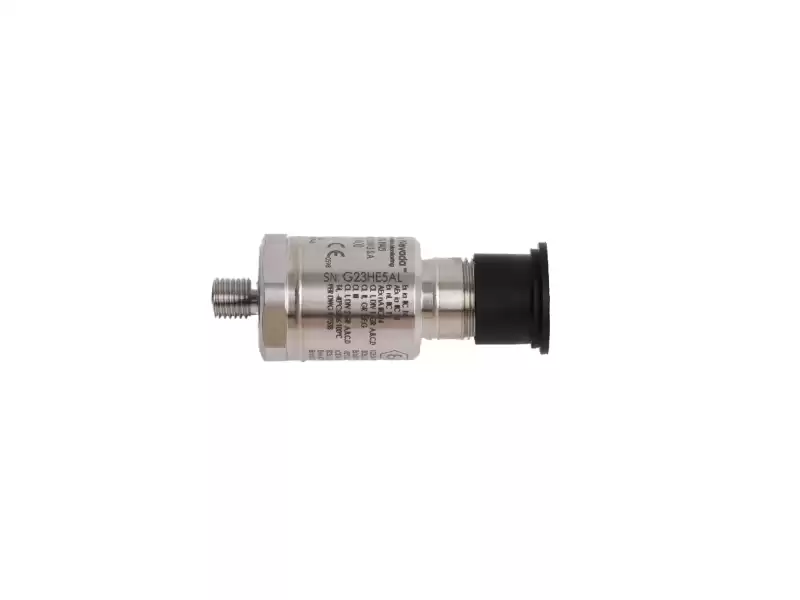

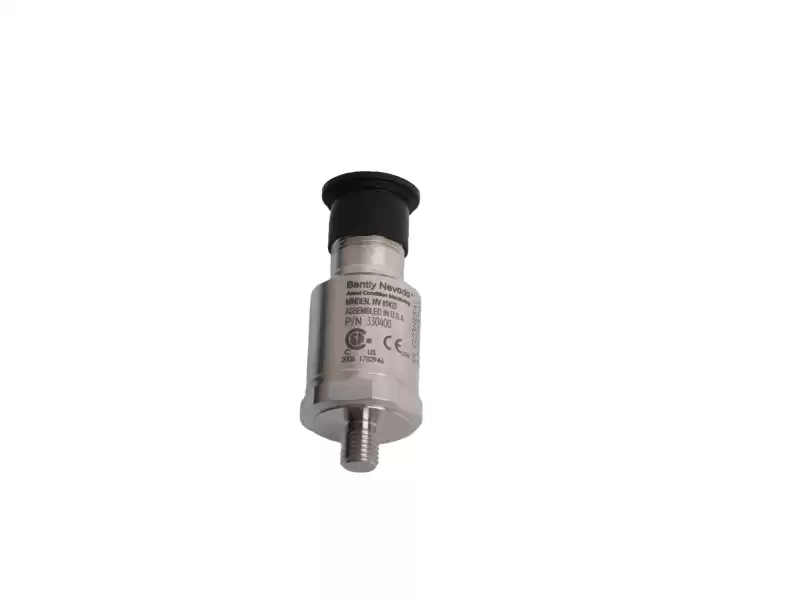

The 330400-02-05 is Bently Nevada’s most quoted 100 mV/g general-purpose accelerometer: hermetic, titanium, ¼-28 integral stud, certified for Zone-2, ATEX, IECEx, ABS & DNV—ready for gas turbines, cooling-tower fans or offshore pumps.
2. Instant Spec Table
|
Parameter
|
Value
|
Notes
|
|
Sensitivity
|
100 mV/g ±10 %
|
10–5 000 Hz ±3 dB
|
|
Range
|
0–80 g peak
|
overload 1 000 g shock
|
|
Temperature
|
–55 °C … +125 °C
|
no thermal zero shift
|
|
Supply
|
15 – 30 Vdc @ 2 mA
|
constant-current 2–10 mA
|
|
Housing
|
Hermetic titanium
|
0.7″ hex, 1.4″ height
|
|
Stud
|
¼-28 UNF integral
|
no adapter needed
|
|
Seal
|
IP 68 / NEMA 4X
|
100 h salt-spray per ASTM B117
|
|
Approvals
|
ATEX II 3G Ex ic IIC T4 Gc, IECEx, CE, ABS, DNV
|
multi-card ready
|
3. Approval Matrix (why it travels everywhere)
|
Cert Body
|
Code
|
Zone / Class
|
|
ATEX
|
Sira 21ATEX2187X
|
Zone 2, Ex ic IIC T4 Gc
|
|
IECEx
|
IECEx SIR 21.0040X
|
Zone 2, Ex ic IIC T4 Gc
|
|
ABS
|
21-2156721-PDA
|
Marine hull & machinery
|
|
DNV
|
TAA00001R9
|
Offshore vibration monitoring
|
4. Mounting Cheat-Sheet
ü Spot-face ≤ 32 µin Ra
ü 5–7 N·m (45–60 in-lb) on integral stud – no grease
ü Orient connector toward junction box → reduces drip-loop stress
ü Lock-wire optional for > 4 000 RPM fans
5. One-Minute Order Path
Sales Manager May
ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat: dcsfcs
Send: “330400-02-05 + cable length + destination” – price in 15 min, 1-year warranty.
6. Take-away
Need a single, globally-accepted accelerometer that bolts on with one hand and forgets the world for ten years? 330400-02-05 is the titanium workhorse—keep a few in the store-room and stop hunting approvals.
