990-04-XX-01-00 MOD:147202-01 |vibration transmitter
PLC Autocontroller| Sales Manager May | Wechat id: dcsfcs
Product Overview

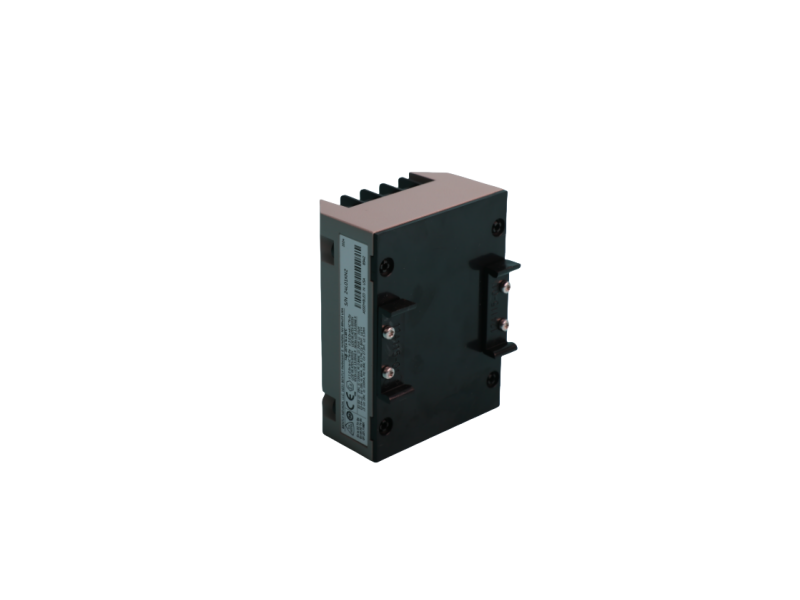

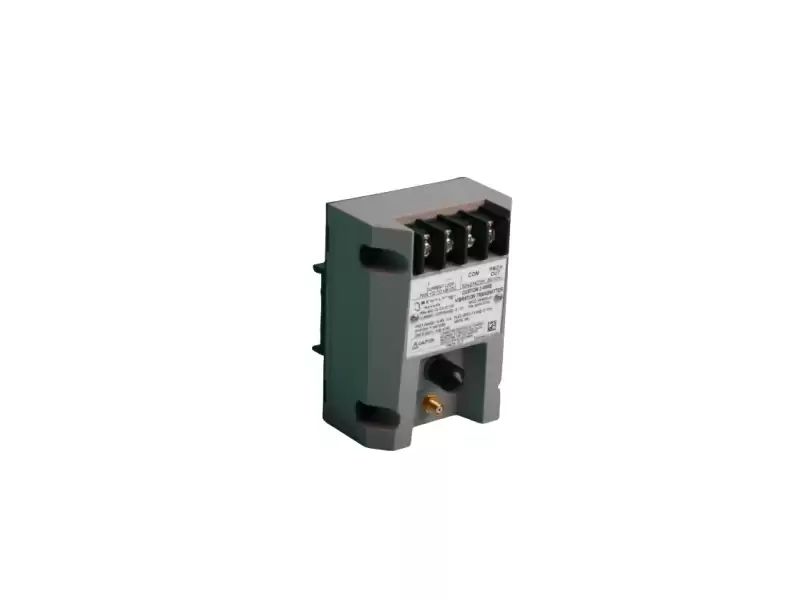

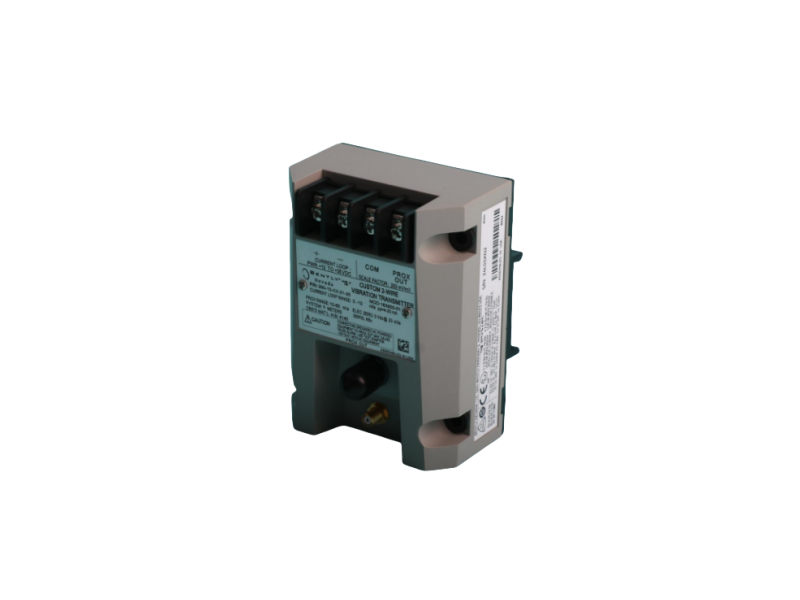

990-04-XX-01-00 MOD:147202-01 is a 2-wire vibration transmitter designed for OEM and general mechanical equipment users in the Bently Nevada 990 series. This device, when used in conjunction with the 3300 NSv proximity probe and its extension cable, can convert the mechanical vibration/shaft displacement signal detected by the probe into a standard 4-20 mA analog output, facilitating integration into PLC/DCS/monitoring systems. It is used for vibration trend monitoring or protection of basic machinery.
Key Technical Specifications
Ø Probe Input supports 3300 NSv proximity probe + corresponding extension cable
Ø Output signal: 4-20 mA DC
Ø The System Length can be selected as 5 m or 7 m
Ø Mounting Method: 35mm DIN - rail clips
Ø Frequency Response: 5 Hz to 6,000 Hz (±3 dB)
Ø Probe Gap 0.5 to 1.75 mm (20 to 55 mils) - Ensure full-scale range output
Ø Maximum Loop Resistance: 1,000 Ω (including cable) @ 35 VDC
Ø Additional Output (Diagnostics Output) "PROX OUT" coaxial output - provides dynamic vibration/gap voltage signals (for diagnostics)
|
Product advantages
|
Typical application scenarios
|
|
Simple integration - 2-wire loop-powered design + 4-20 mA output, convenient for direct integration with analog input modules of systems such as PLC/DCS
|
Vibration monitoring of rotating machinery such as centrifugal air compressors, small pumps, fans, and motors
|
|
Universal compatibility - Compatible with 3300 NSv proximity probes, providing standardized vibration monitoring solutions for Oems and industrial equipment manufacturers
|
Factory equipment Condition Monitoring/Preventive Maintenance
|
|
High precision and wide frequency band - output accuracy ±1.5%, frequency response covering 5 Hz - 6,000 Hz, capable of monitoring the vibration characteristics of most rotating machinery
|
OEM equipment integration - Build vibration monitoring functions into new equipment
|
|
Diagnostic function - In addition to the basic 4-20 mA output, it also provides PROX OUT dynamic signal interface for maintenance diagnosis and fault analysis
|
Industrial systems with requirements for vibration trend monitoring (such as petrochemical, manufacturing, HVAC, water treatment, etc.)
|
