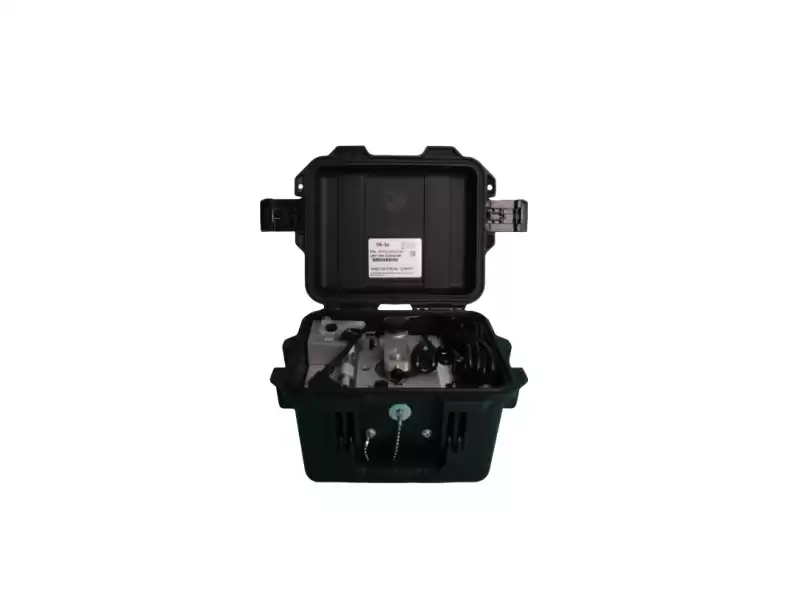

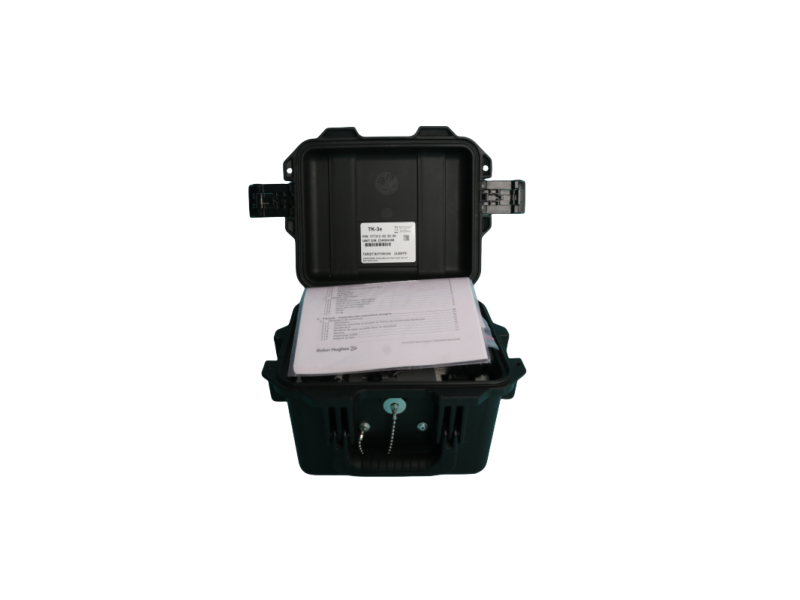

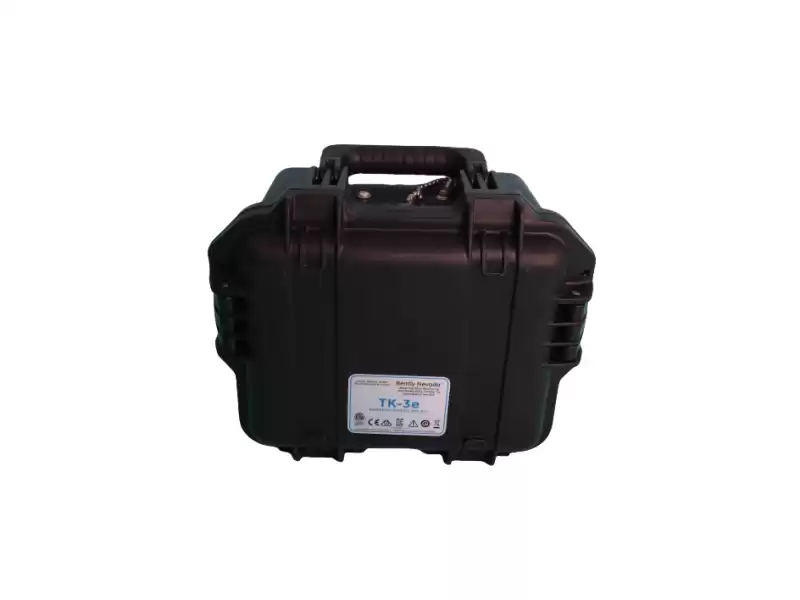

Bently Nevada TK-3E 177313-02-02 Electric-Driven Proximity System

What is the TK-3E 177313-02-02?

Bently Nevada  tk-3e 177313-02-02 Proximity System Test Kit is an electrically driven calibration tool produced by Bently Nevada for simulating shaft vibration and displacement signals. Calibrate or conduct health checks on proximity probes and monitors. This device can simulate the signals in actual mechanical operation, allowing engineers to verify the system performance without stopping the machine or disassembling it

What is the main function of TK-3E 177313-02-02?

Precise calibration capability: By simulating mechanical vibrations through an adjustable "wobble plate", it helps calibrate the accuracy of proximity systems.

Universal probe installation: The Universal probe fixture supports probes ranging from 5mm to 19mm, eliminating the need to prepare multiple adapters for probes of different diameters.

No oscilloscope requirement: Signals are generated through the built-in simulation mechanism in vibration mode, allowing for reading and calibration without the need to connect an oscilloscope.

Portability & Durability: Robust housing (IP54), easy on-site maintenance, detachable spindle micrometer + magnetic base design.

Standard compatibility: Compatible with Bently 3300/3300 XL series proximity probes and monitoring modules, it can be widely used for on-site calibration and maintenance

What are the key technical specifications?

 Typical application scenarios

ü Calibration and verification of proximity probe systems for key rotating equipment (such as turbines and compressors)

ü System health check during the equipment maintenance cycle (routine maintenance)

ü Perform Factory Acceptance/Site Acceptance Test when installing the 3500/3300 series monitoring system

ü It is used for the linearity and deviation inspection of probes in predictive maintenance (PdM)
