Garbage Compactor Truck also can be called garbage compactor truck，Trash Compressor Truck, Refuse Compression Truck, Refuse Collection Truck, Rubbish Compactor Truck, Bin Lorry Truck etc. China best price Dongfeng / DFAC refuse compressor trucks are mainly designed and produced to collect, compress and transport municiple solid waste.

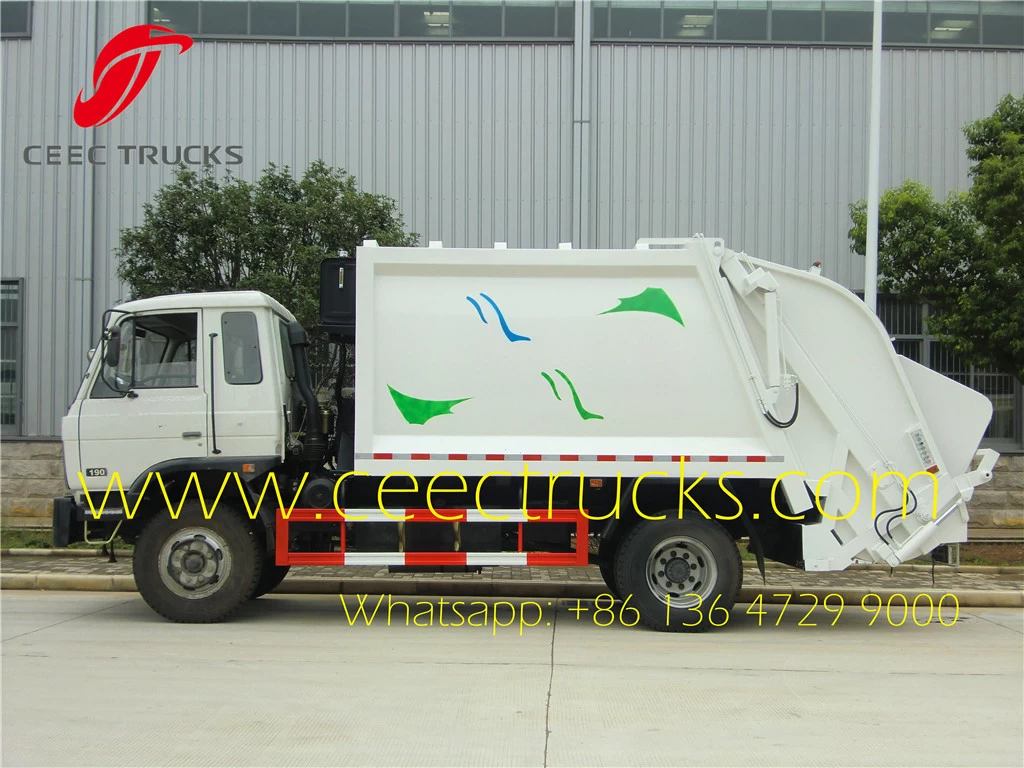

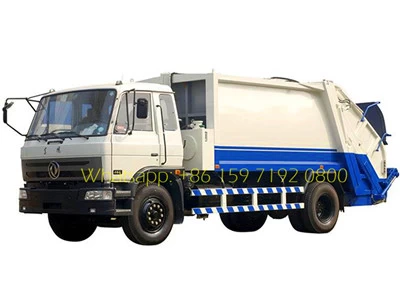

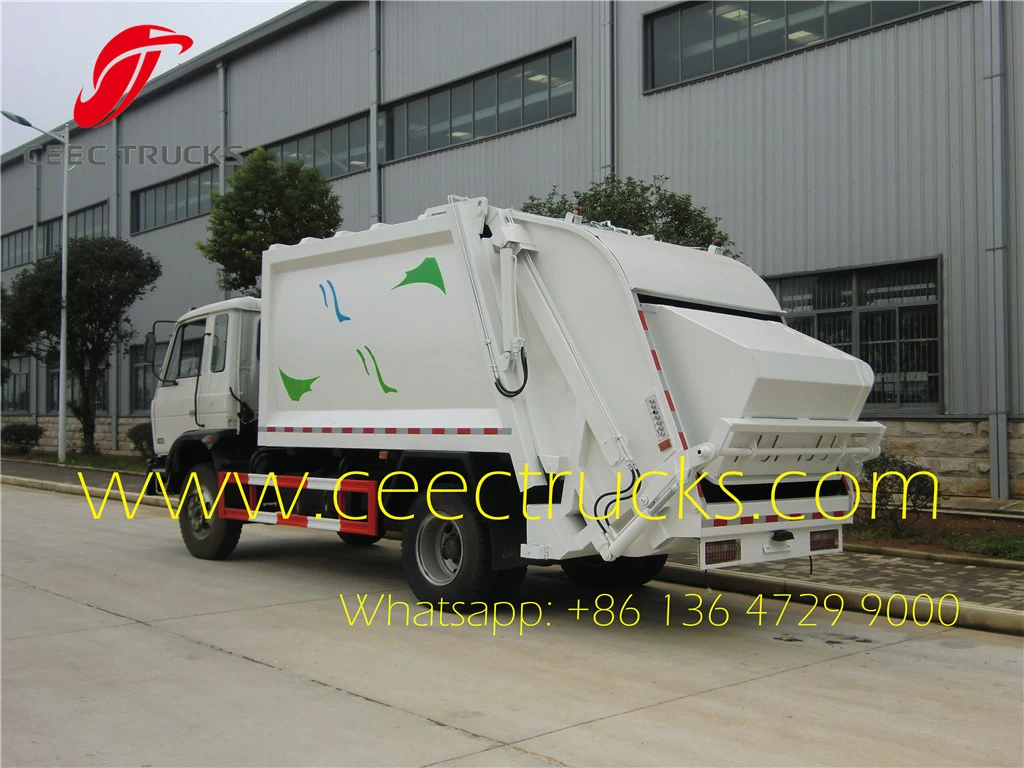

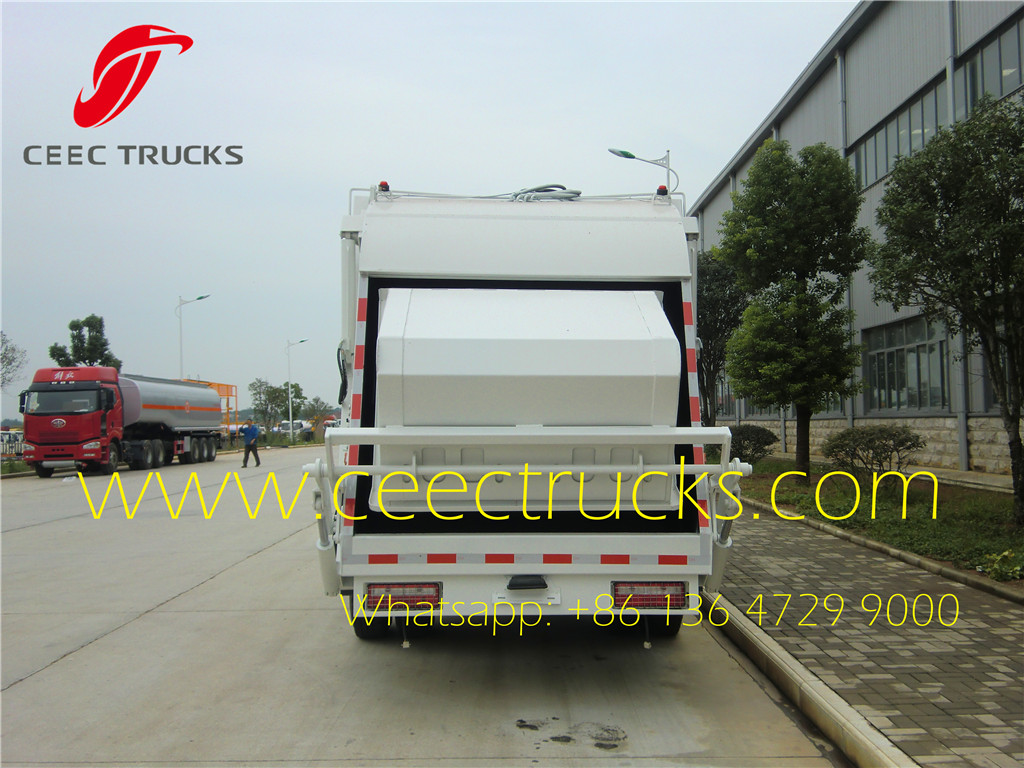

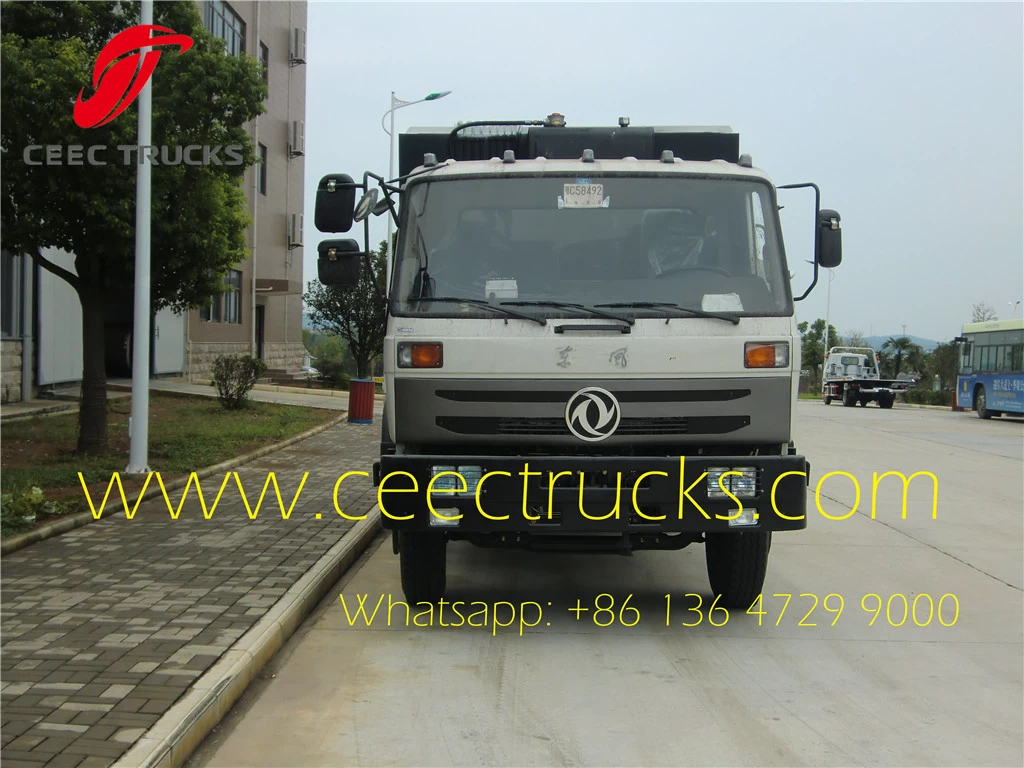

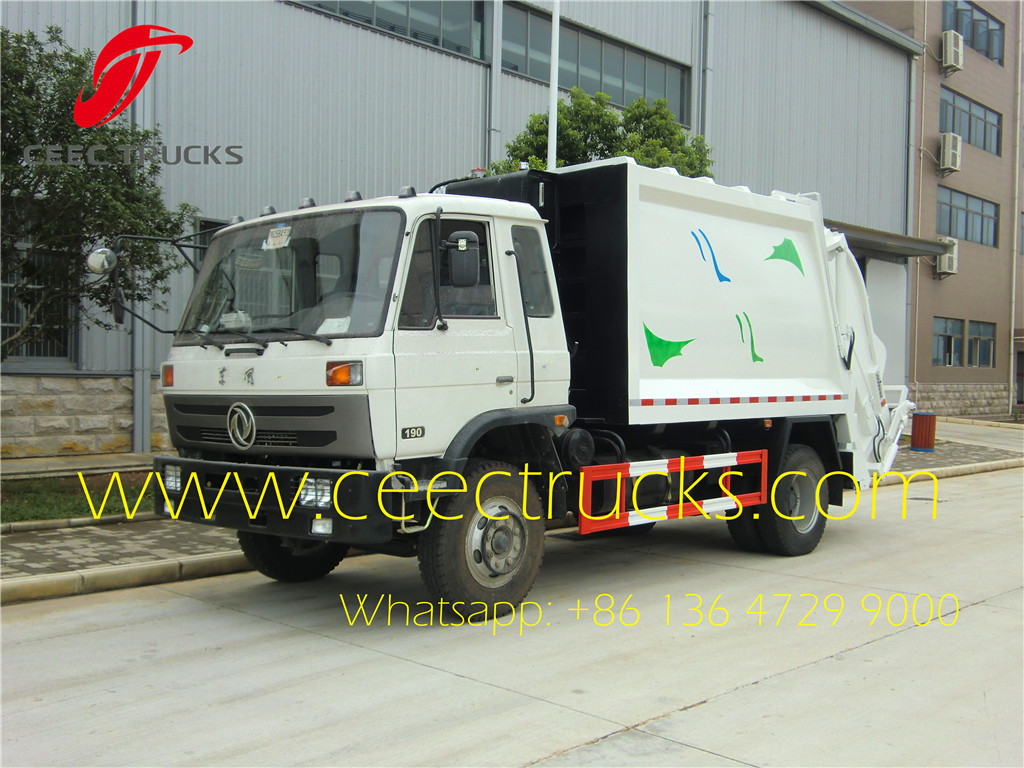

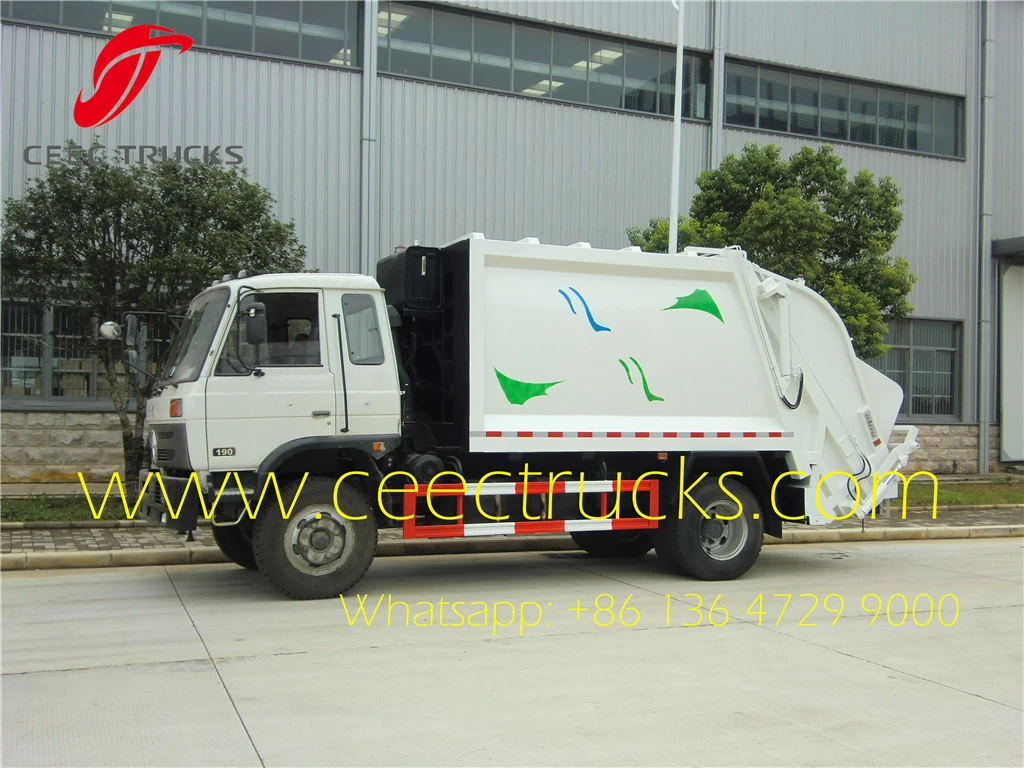

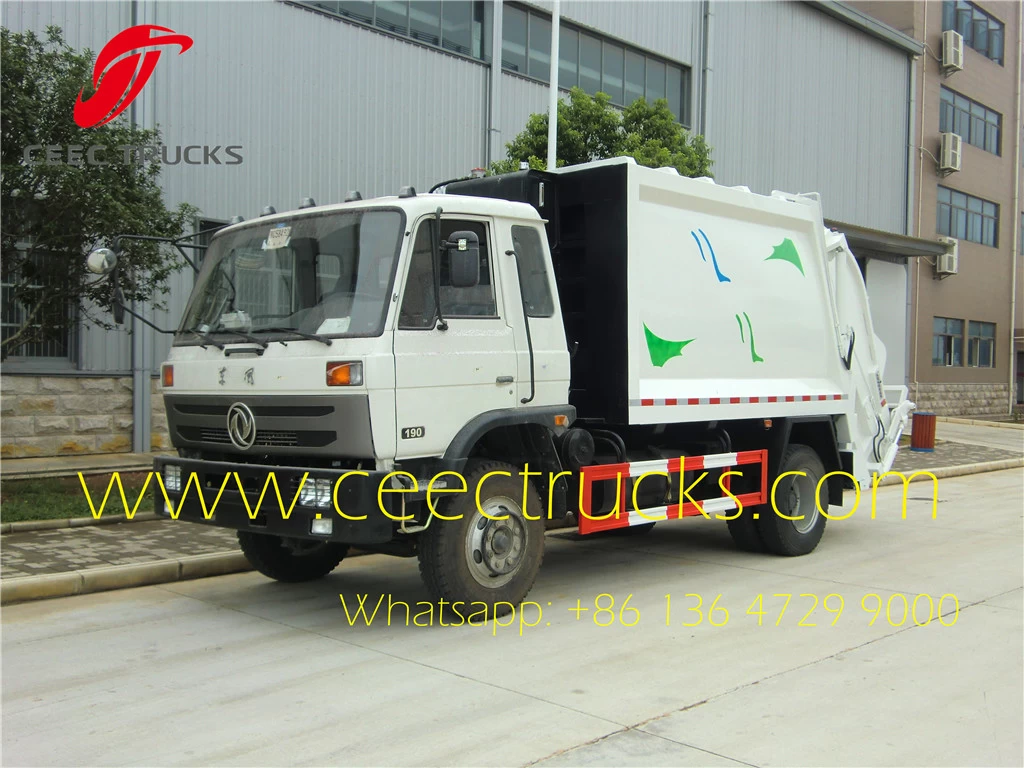

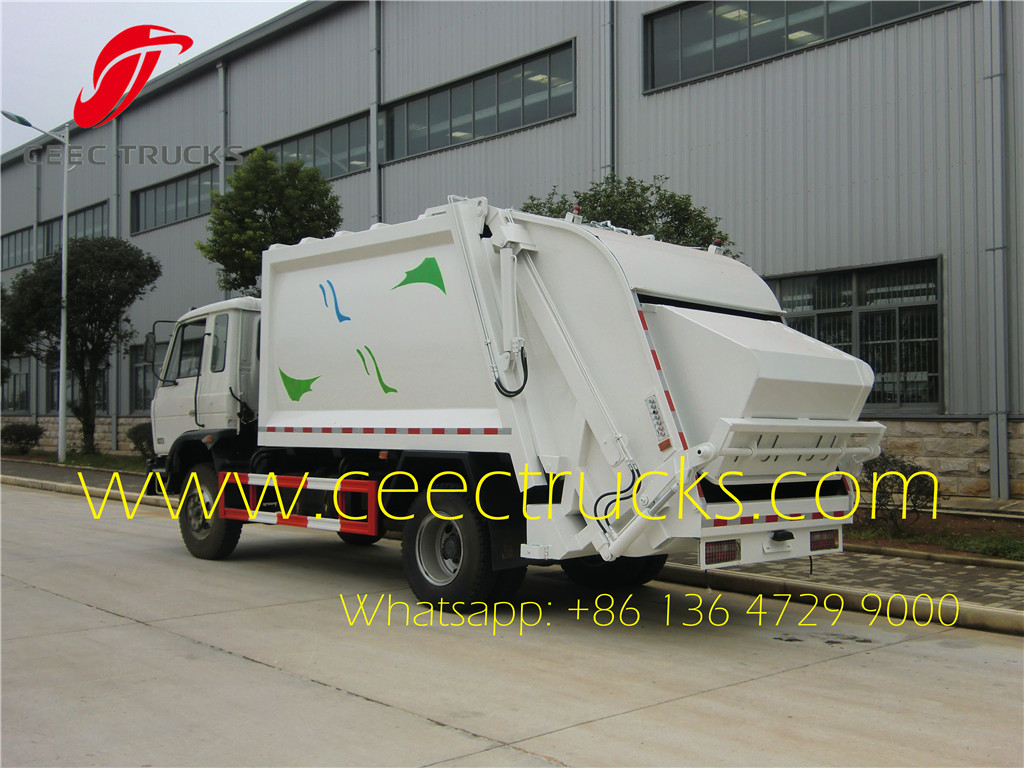

Dongfeng 10 CBM refuse compression trucks price
Best Dongfeng 10 CBM trash compactor trucks functions and features:
1. We CEEC TRUCKS are manufacturer, specializing in producing garbage compactor truck many years with good reputation.
2. The Sudan 9CBM garbage compactor truck control system PLC (programmable logic controller) originally imported from Italy.
3. Collecting tank is well sealed, which can prevent second pollution.
4. Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, against corrosion resistant, rust protection and well-resisting.
5. Relatively smaller space between scraper and loading device can let garbage more sufficiently into the body.
6. The garbage compression truck adopt double direction compression techniques, which can make the whole compression work smoothly and efficiently. All the garbage compactor trucks are easy to operate and maintenance!
7. Different hopper can be provided to satisfy our customers. And the Hopper is hydraulically and automatically locked when closed.
CEEC TRUCKS produced and export garbage compactor trucks mainly export Africa countries, including Kenya,
Algeria, Ethiopia, Angola, Botswana, Togo, Gambia, Congo, Guinea,
Ghana, Zimbabwe, Cameroon, Cote d'Ivoire, Rwanda, Mali, Mozambique,
Sudan, Tanzania, etc. Our best selling models mainly as below: 5 CBM garbage compactor trucks, 8 CBM compressed garbage truck, 12 CBM refuse compression truck, 20 CBM trash compactor trucks. with ISUZU, Dongfeng, Foton, Beiben chassis LHD / RHD for optional.
Similar Key Words: dongfeng
garbage compactor trucks, DFAC 9 CBM trash compressor trucks, rubbish
collection compactor, waste management trucks, dongfeng 9000 liters
compactor trucks, Africa garbage compactor, bin lorry supplier
| Main specification
|
| Product model and name
|
CEEC5160ZYS 12 CBM Garbage Compactor Truck Manufacturer
|
| Gross weight(Kg)
|
16000
|
Drive type
|
4X2, LHD
|
| Curb weight(Kg)
|
9005
|
Overall dimension(mm)
|
8600X2490X3100
|
| Approach/departure angle(°)
|
20/12
|
Cab seats
|
3
|
| Axle No.
|
2
|
Front/rear hang(mm)
|
1430/2670
|
| Axle load(Kg)
|
5000/10000
|
Wheelbase(mm)
|
4500
|
| Max speed(Km/h)
|
90
|
|
|
| Chassis specification
|
| Chassis model
|
DFL1160
|
Manufacturer
|
Dongfeng Motor Co., Ltd
|
| Brand name
|
Dongfeng
|
Dimension(mm)
|
7790×2460×2840
|
| Tyre specification
|
10.00-20
|
Tire No.
|
6+1(one spare tire)
|
| Steel spring number
|
8/10+8
|
Front track base(mm)
|
1880
|
| Fuel type
|
Diesel
|
Rear track base(mm)
|
1860
|
| Emission standard
|
Euro III
|
Transmission
|
6 forward gear & 1reverse gear
|
| Cab
|
Single row, Luxurious interior trim with power steering and A/C
|
| Engine model
|
Engine manufacturer
|
Displacement(ml)
|
Power(Kw)
|
| B190-33
|
Dongfeng Cummins Engine Co.,Ltd
|
5900
|
140(190HP)
|
| Performance
|
| Box volume
|
12-14cbm
|
Box material
|
Q235
|
| Box dimension
|
Side 4mm,buttom 4mm
|
Operation control system
|
Manual + Automatic
|
| Main Characteristic
|

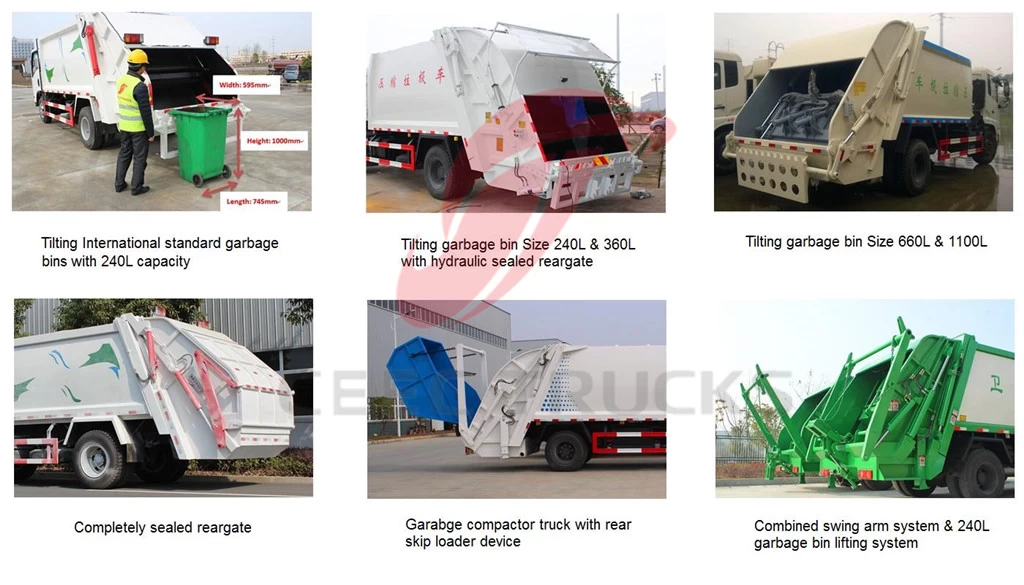

| 1,Can choose 240L(single bin, double bins)or 360L,660L,1100L standard lifting and turnover device(plastic or steel garbage bin), can also choose ground hopper ,swing arm device or other kinds of loading device.
2,With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. With working device of emergency braking stop button.
3,Garbage body use frame design, elegant, strong structure, large effective capacity.
4,Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.
5,Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.
|
