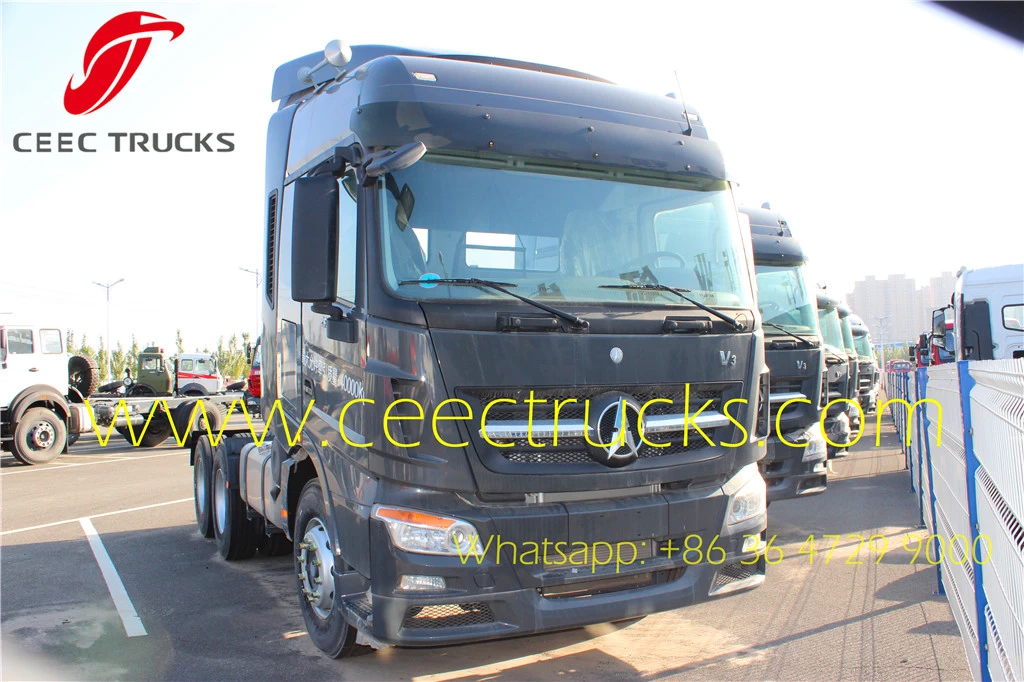

Best price Beiben V3 truck head for Africa 6x4 head truck off road China tractors

Brand new beiben 2542 V3 towing truck, WP10.420E32 engine with 420HP super powerful, FAST 12-shift manual gearbox for easy operation, JOST single direction, maximum towing weight can be 60T



China Best beiben 2542 V3 Towing Truck Supplier



beiben 2542 tractor truck supplier



We are the most professional supplier on beiben V3 tractor trucks, beiben V3 2534, 2538,2540,2542,2548 tractor trucks. The best full solution for customer logistic solutions on north benz V3 tractor trucks.
Our beiben V3 tractor trucks are ideal versions instead of imported benz actors. With outstanding performance and high quality, . Now our beiben V3 trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth.

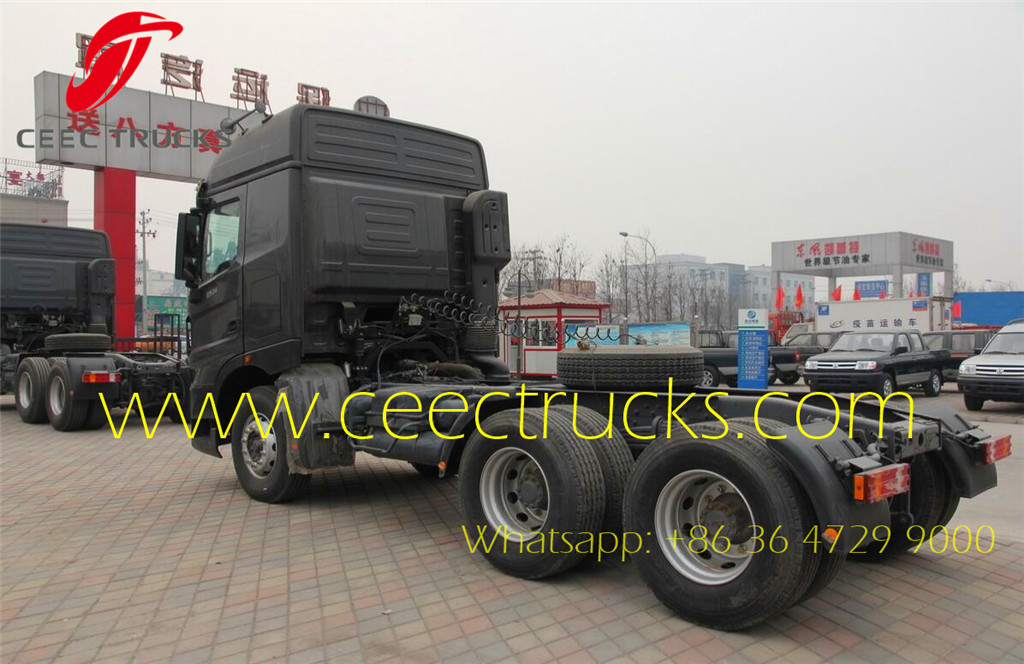

beiben V3 2538 prime mover

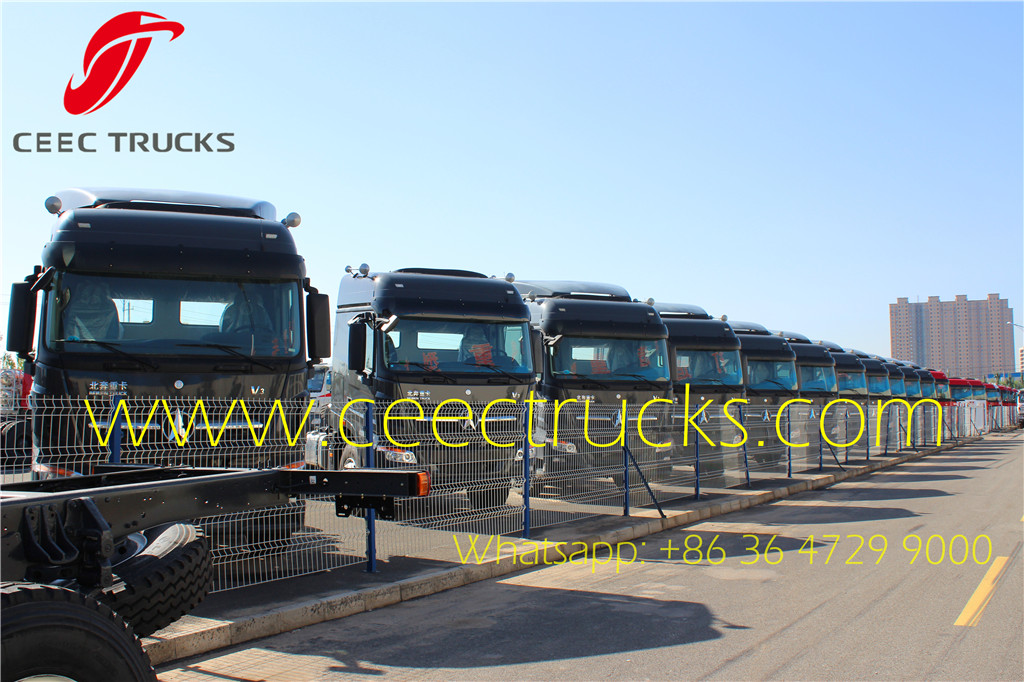

Beiben V3 tractor trucks widely export Africa Kenya, Tanzania, Congo, Ivory Coast

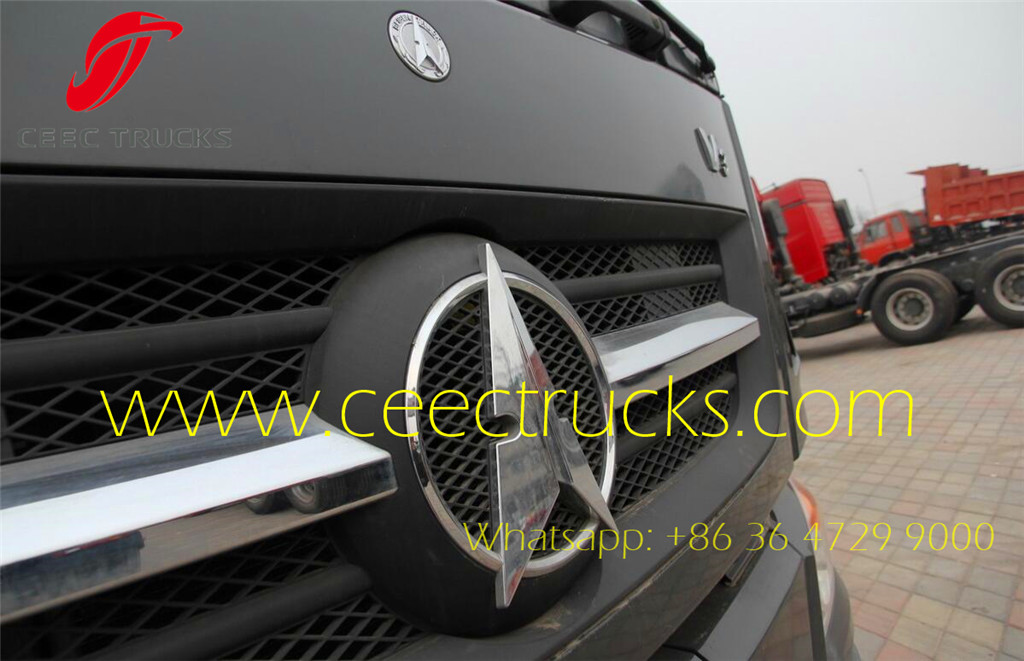

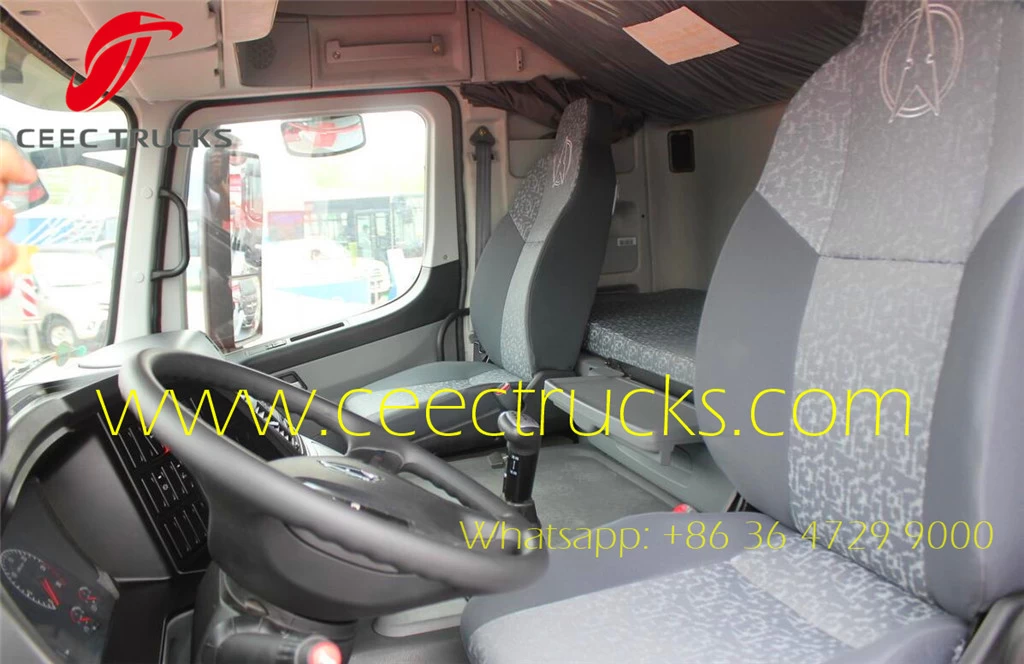

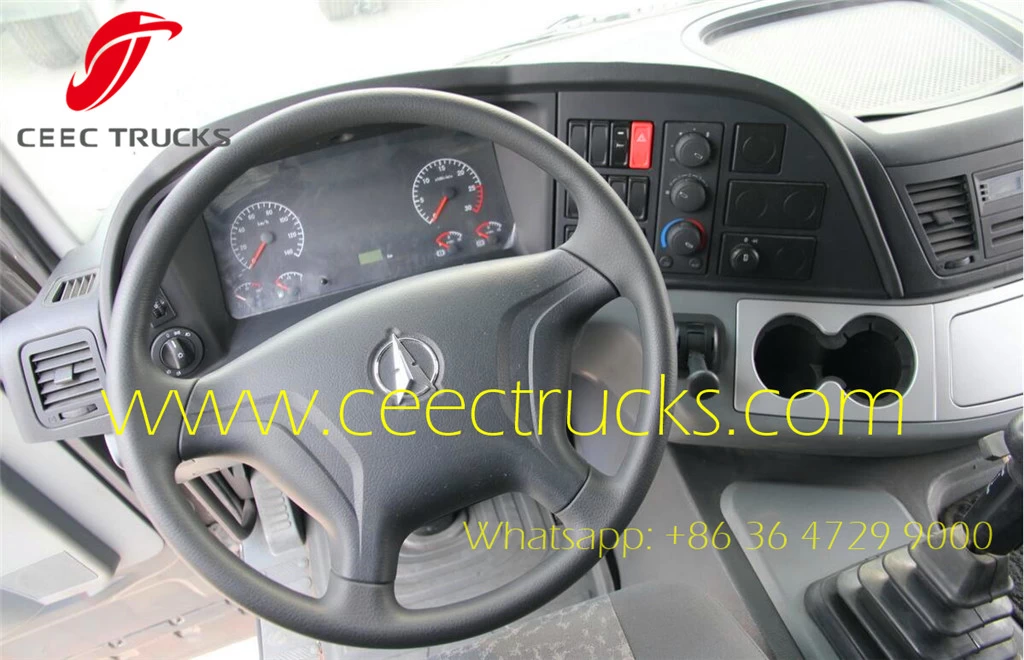

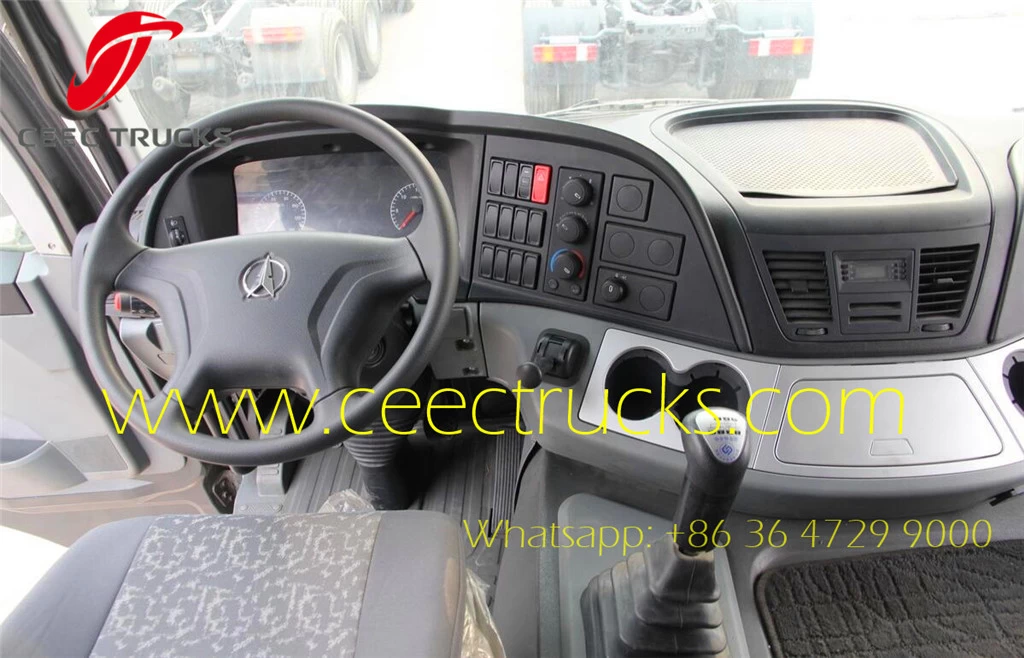

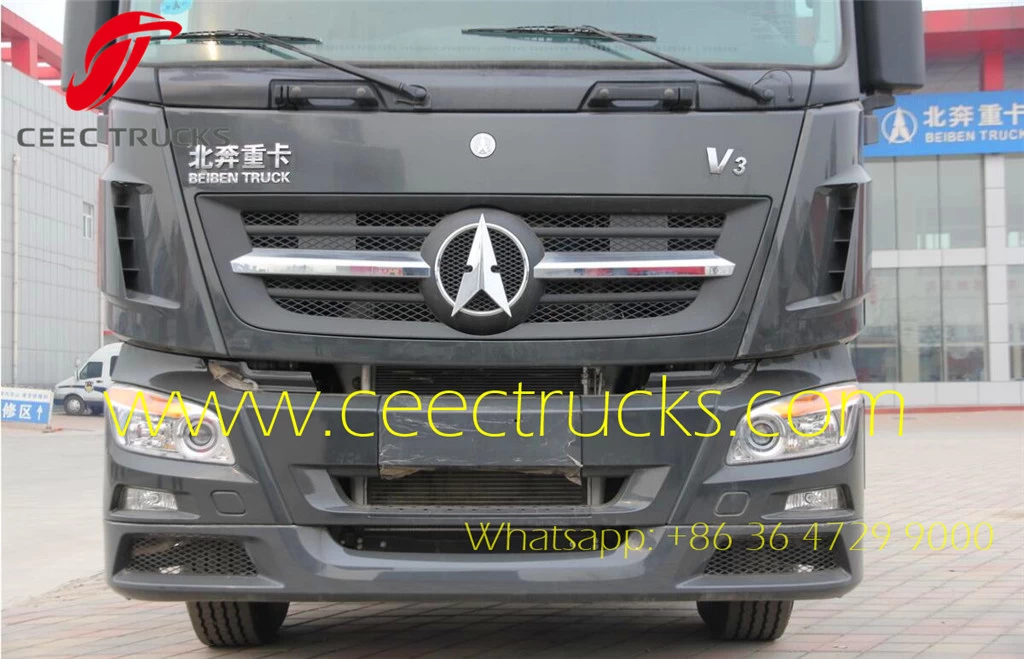

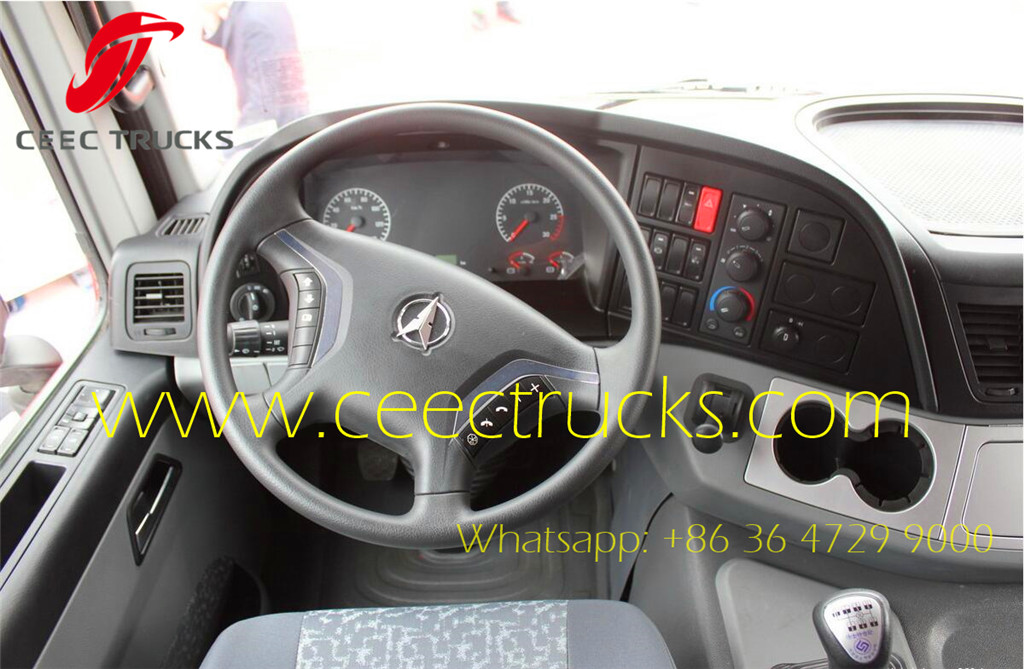

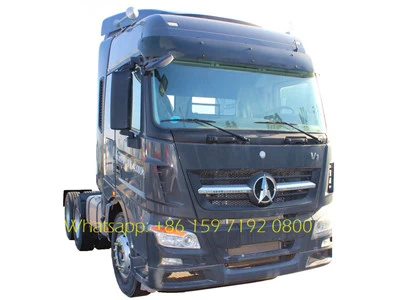

Germany BENZ actros CABIN.The beiben V3 tractor truck cabin was designed by the same design team of the Mercedes Actros, and is similar to the Actros. Clean, simplistic and comfortable with a full sleeper cabin.
World famous Weichai Engine .The north benz V3 trailer truck is powered by a 12L WP12E40 / WP12E50 engine meeting Euro IV and Euro V emission standards. The WP12 engine is designed with Austria's AVL and utilizes BOSCH Common Rail as its fuel system, similar to MAN and Cummins.

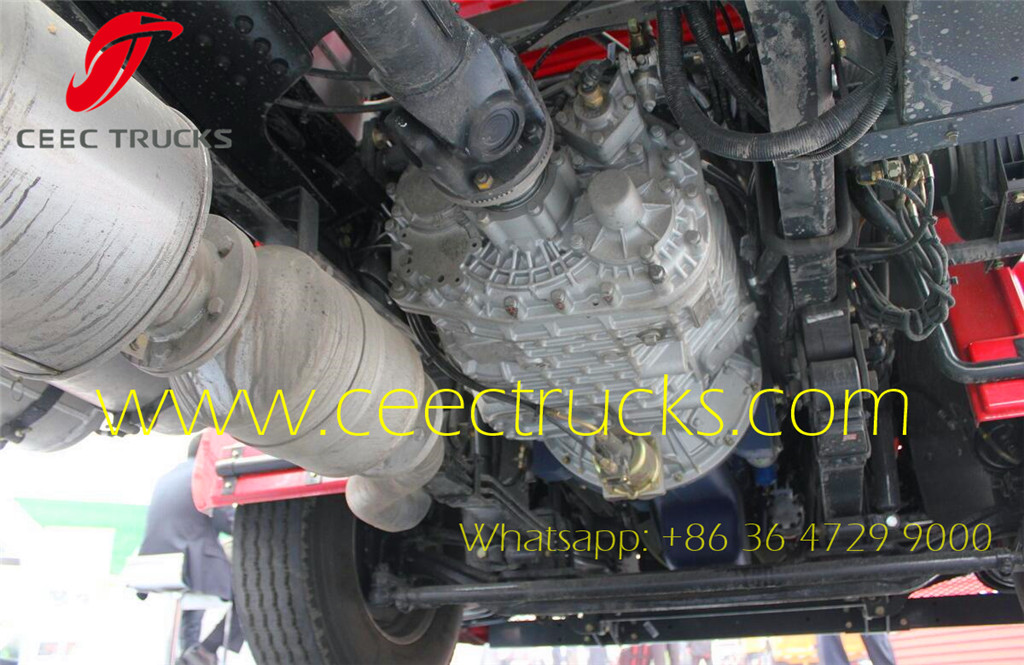

ZF Gearbox.Choose from the 9-speed ZF manual or efficient 12/16-speed FAST manual gearboxes. For ultimate comfort, there is the option of the FAST F-SHIFT AMT

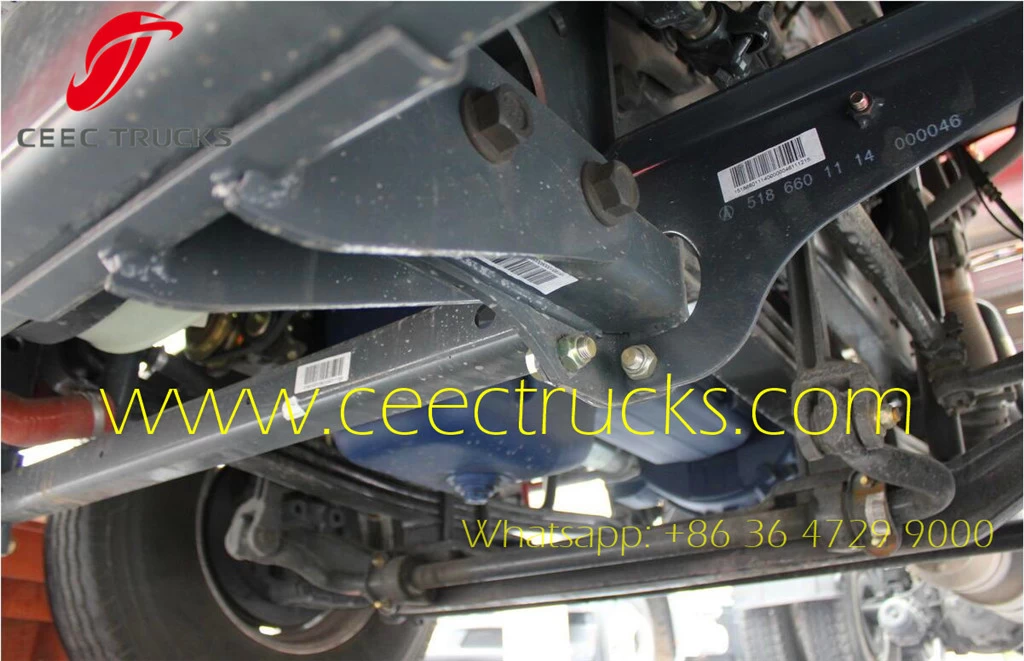

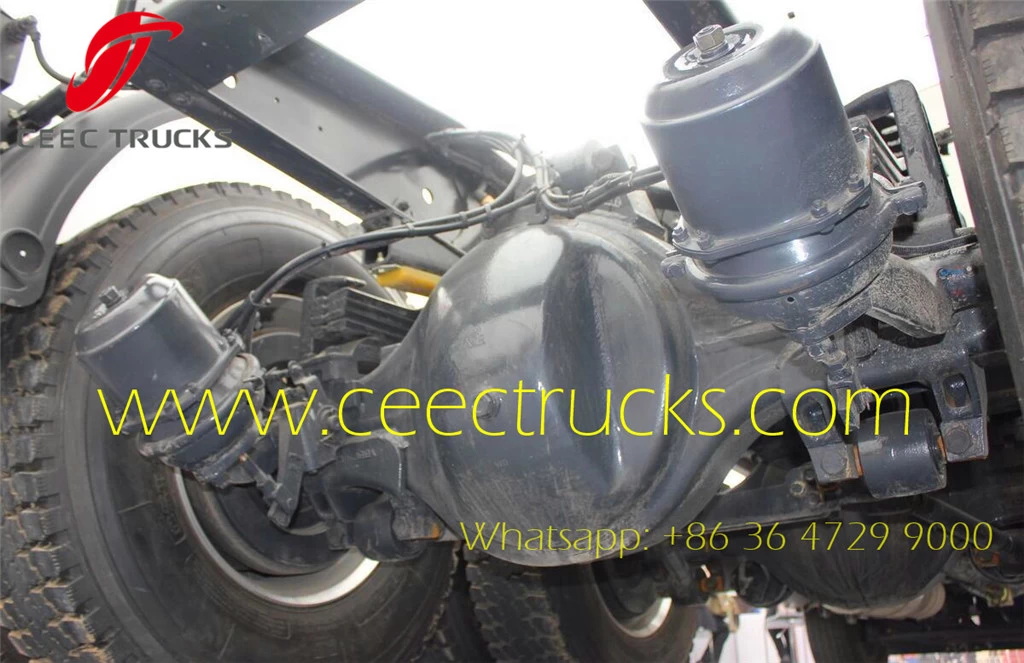

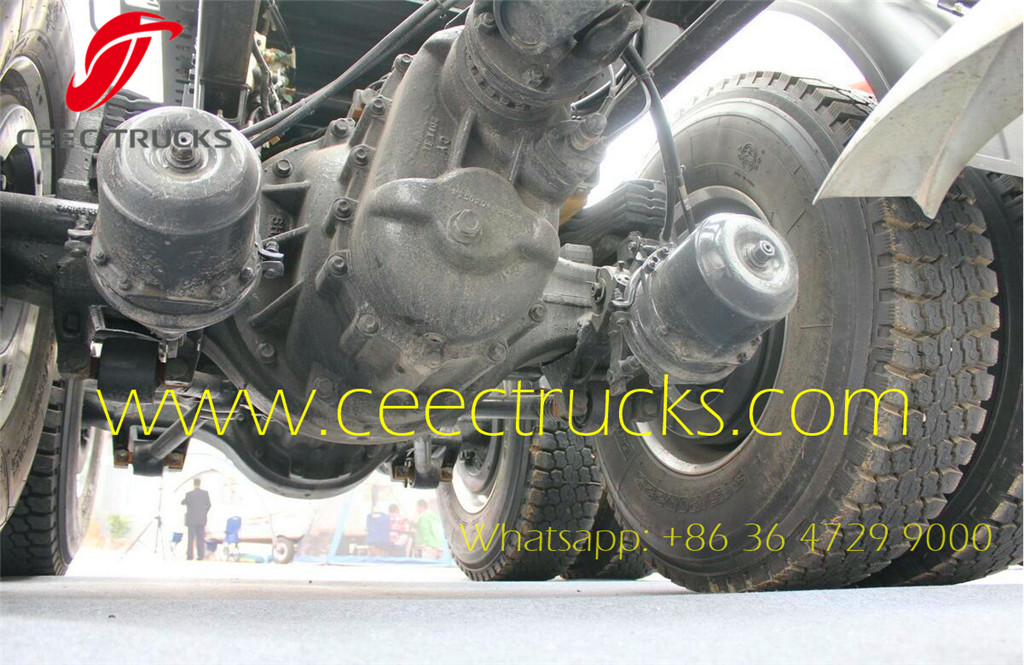

Benz Front & Rear Axle .BEIBEN V3 tractors is equipped with the VR-4 front axle (7.5T) and the HL-7 (16T) rear axle. The 6x4 is equipped also with the HD-7 throughdrive axle. Mercedes Benz licensed front and rear axles for trucks and buses.
ZF 8098 Steering Gear .All BEIBEN V3 trucks are equipped with ZF 8098 steering gear. This is the same steering gear equipped on certain Mercedes, MAN, IVECO, Scania and Volvo trucks.

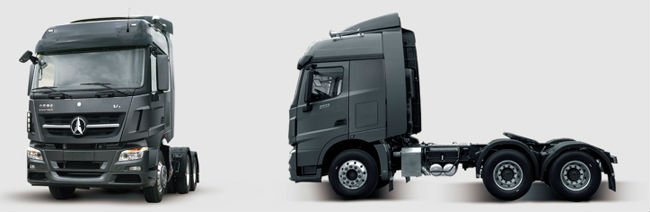

beiben 6x4 tractor trucks drawing



beiben 2542 tractor truck for Congo



Similar key words: beiben 2538 tractor truck, north benz 2538 prime mover, beiben 2538 towing truck, beiben 2538 trailer truck. kenya beiben 2538 tractor truck, tanzania beiben 2538 tractor truck, china beiben 6*4 drive v3 tractor truck supplier, baotou beiben V3 tractor truck manufacturer. africa beiben NG80 tractor truck



Beiben 2542 LHD / RHD V3 prime mover sale

Wheel base (mm)

3450+1450

Curb weight kg

9300

Engine

Model

WP12.480(WeiChai Engine Based on Styre technology, made in China),water-cooled,four strokes,6 cylinders straight in line,turbocharged, directly injection

Displacement L

12/Diesel

Power, max kw/rpm

309/2200

Emission

EURO3

Fuel tanker capacity L

300

Clutch

Model

φ430, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

12JS200T

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.

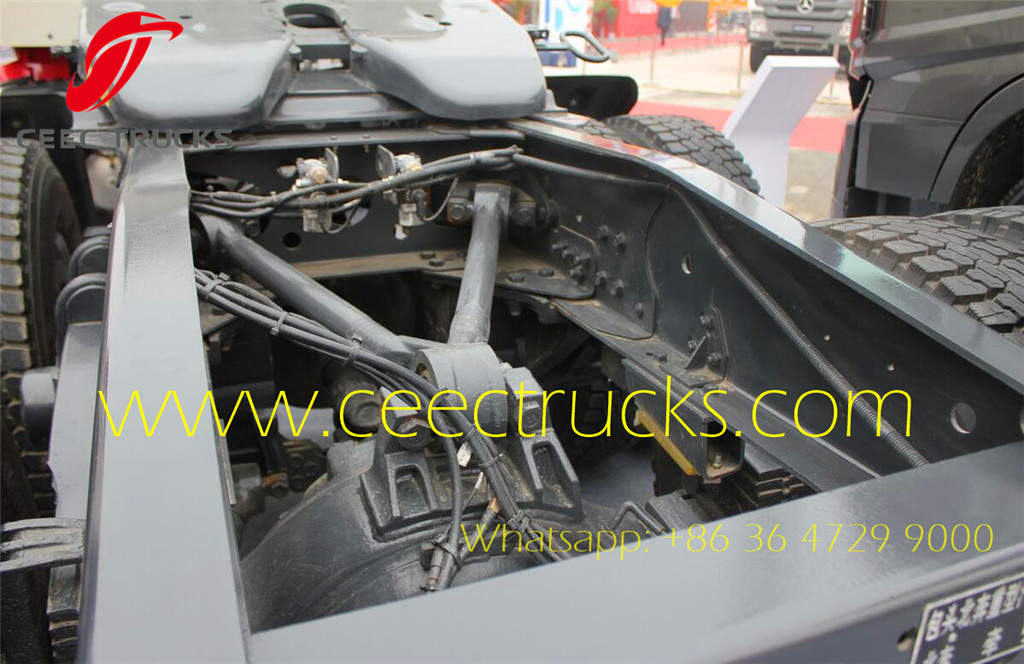

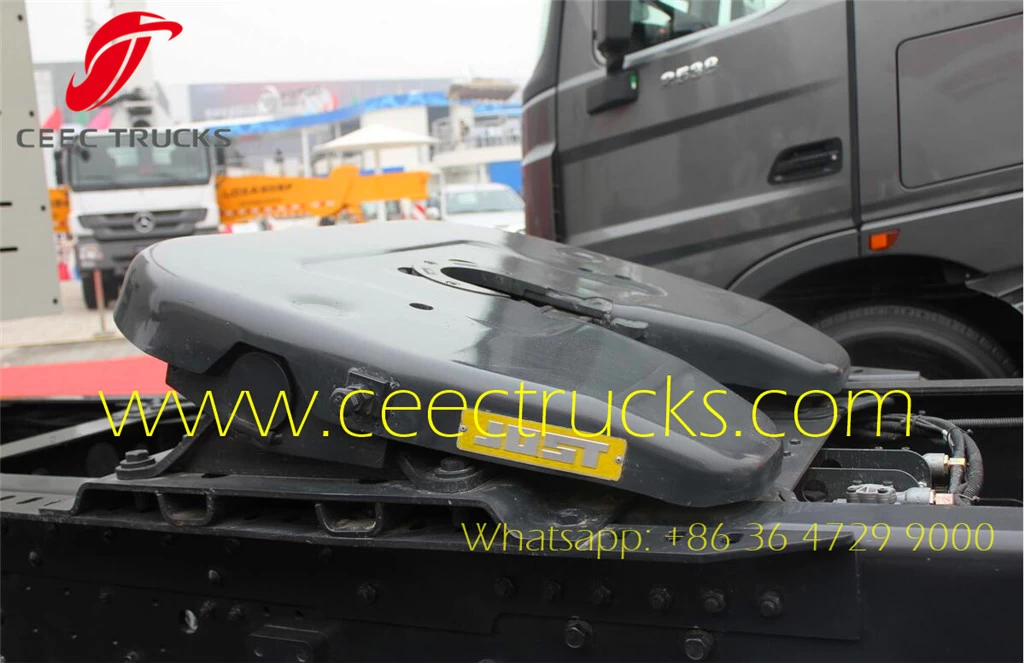

The Fifth wheel

90 #single



beiben 2542 tractor truck for Congo



beiben 2542 tractor truck for Congo    beiben 2542 tractor truck for Congo



beiben 2542 tractor truck for Congo



beiben 2542 tractor truck for Congo



beiben 2542 tractor truck for Congo    beiben 2542 tractor truck for Congo



Beiben 30T, 40T, 50T, 60T, 70T tractor truck on sale
