Jaminnar is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Jaminnar can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / promecam european, Trumpf / Wila, Bystronic/Beyeler, LVD type, EHT type, American type, Gasparini Type, Colgar Type，Colly Type，Ajial-Axial Type, Hämmerle-bystronic Type, Special tools, Shear blades, Crowning Table, Rolla-V, Adjustable Die, Custom Rotary Dies, Clamping system, Tools Storage Cabinets, Protective Traceless Film, etc. Jaminnar has two in-house R&D department specializing in designing technologically advanced solutions and focuses on innovative solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project. The tools - our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and uses advanced equipment for production with Implement strict quality control and the guarantee of highly qualified employees. Our molds undergo rigorous testing to ensure stability and durability; Reliability and competitive pricing are two other distinguishing features of our bending tools.
INFORMATION
|
Art.No.: JM - LG-HK
|
|
|
Tooling system
|
JM - System Crowning Table
|
|
Adjustment Method
|
CNC electric or manual adjustment △ H1
+ local scale bolt fine adjustment △ H2
|
|
Length
|
Customizable Size
|
|
Width
|
Customizable Size
|
|
Height
|
Customizable Size
|
|
Max adjustment height
|
1.0 - 4.5 mm max.
|
|
Other Information 1
|
|
|
Other Information 2
|
|
Quality And Precision
▶△HMAX 1.0 - 4.5 mm max.
▶Precision ground
▶Crowning Table marking with all technical information

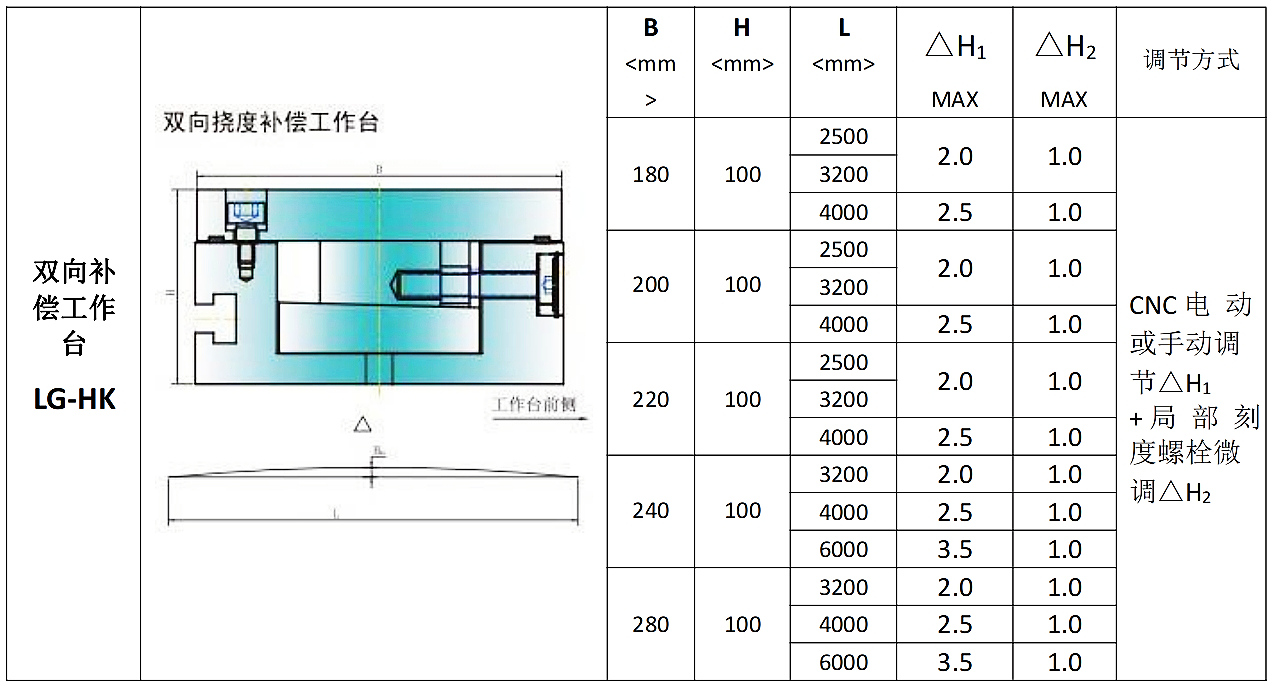

Crowning Table LENGTHS

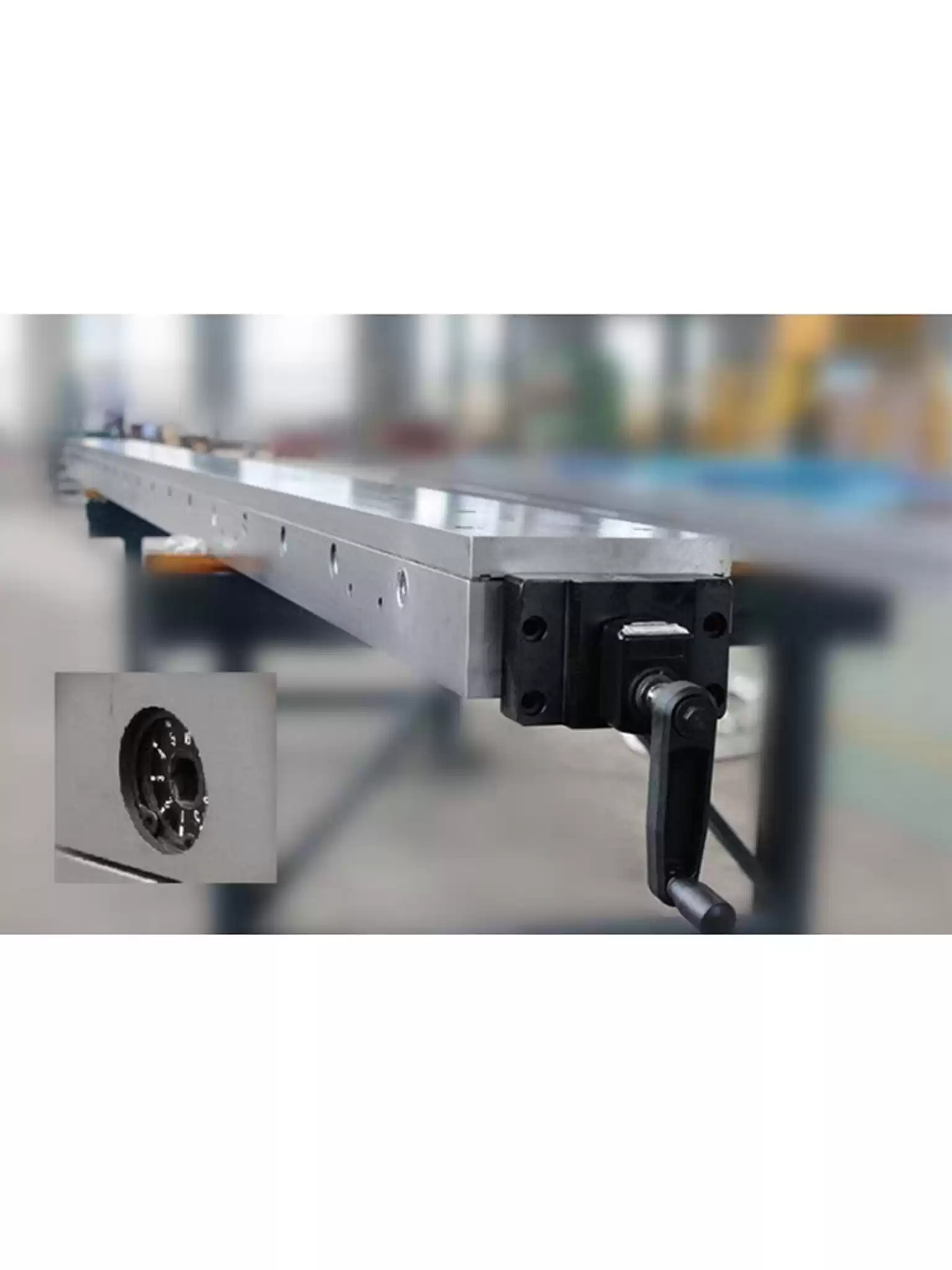

Crowning Table
6000 mm
5100 mm
4000 mm
3100 mm
2500 mm
Different lengths, different adjustment height ranges.
▶Length 2500mm/3200mm, △ H1 MAX=1.7mm or 2mm, △ H2 MAX=1.0mm
▶Length 4000mm, △ H1 MAX=2.5mm, △ H2 MAX=1.0mm
▶Length 6000mm, △ H1 MAX=3.5mm, △ H2 MAX=1.0mm
■ In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory production experience?
A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.
2. Q: Can you put my brand logo on these products?
A: Yes, we can.
3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: MOQ is 1pcs. Purchase amount not less than $50.
4. Q: When can you ship the products after we make payment?
A: Production time is normally 15-25 days.
5. Q: What materials and processing techniques are used for press brake tooling?
A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting
6. Q: How long is the warranty period for your products?
A: Under normal use, the warranty period is 1 year.
7. Q: What payment methods do you support?
A: T/T, Western Union, WeChat etc.
