INFORMATION
|
Art.No.: JM - 24050
|
|
|
Tooling system
|
JM - System Bystronic
|
|

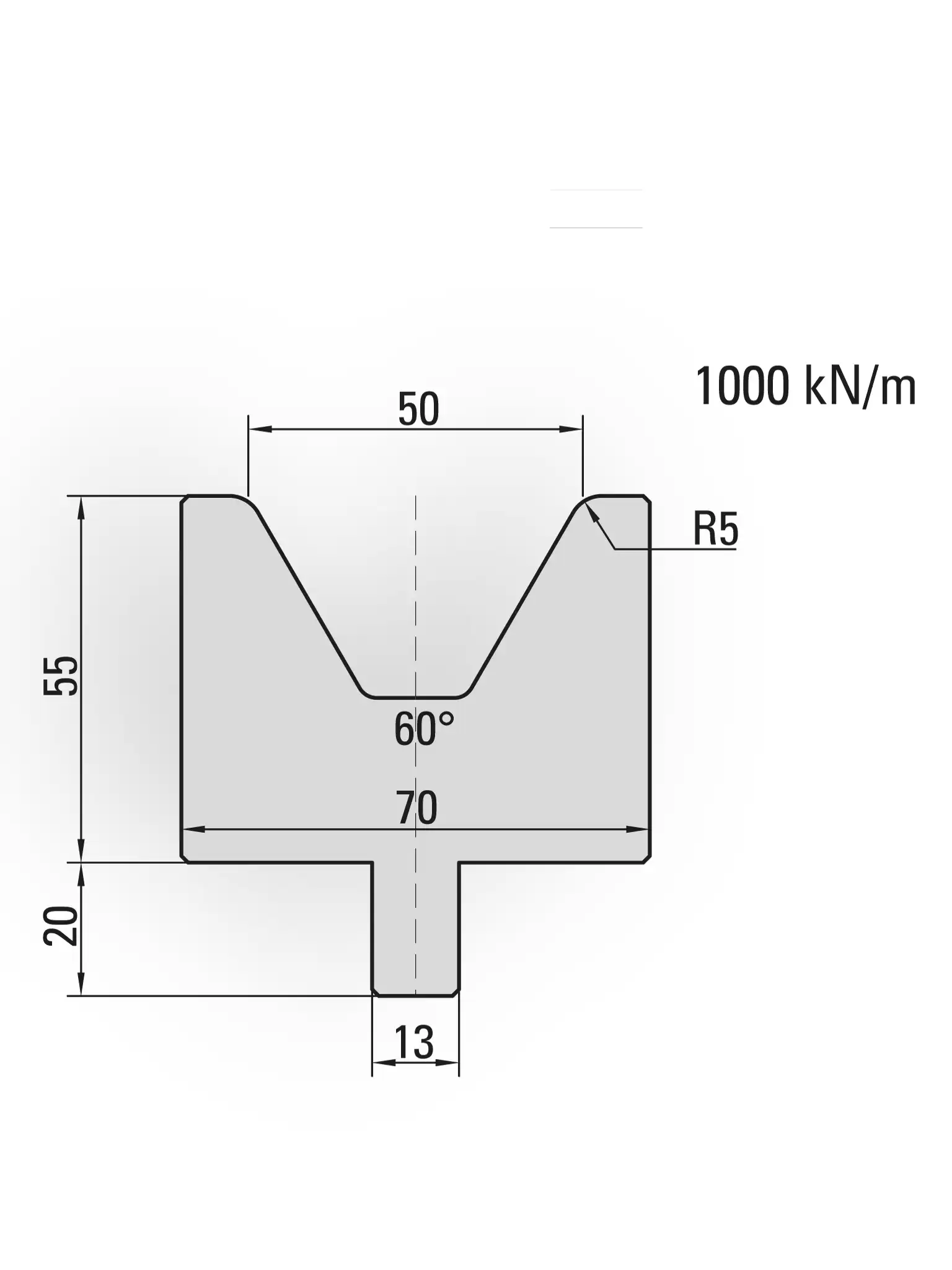

Angle
|
60°
|
|
Die opening
|
V = 50 mm
|
|
Radius
|
5mm
|
|
Effective Height
|
55 mm
|
|
Max load
|
1000 kN/m max.
|
|
Material
|
42CrMo
|
|
Length and weight
|
550mmSect/13.5kg、515mm/12.6kg
|
Quality And Precision
▶Optimum materials
▶42CrMo4, tempered to 1100- 1200 N/mm²
▶Bending Radius/Intake Radius Hardens to 54 – 60 HRC
▶Precision ground
▶Guaranteed exchangeability and parallelism
▶Tool marking with all technical information
TOOL LENGTHS
DIES/lower-TOOLS

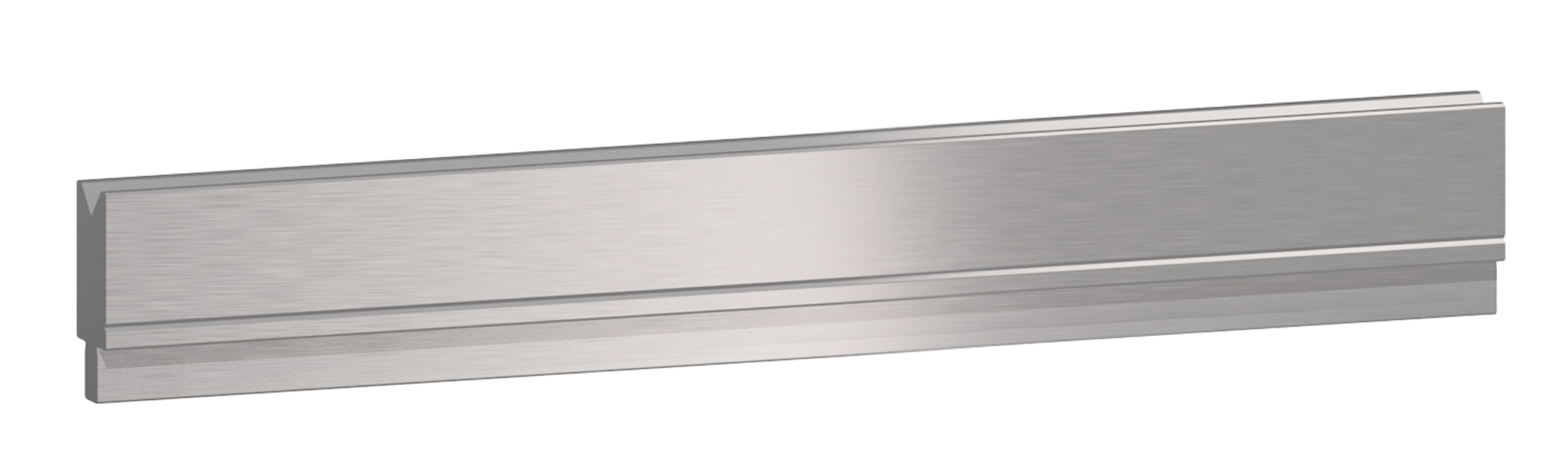

515 mm

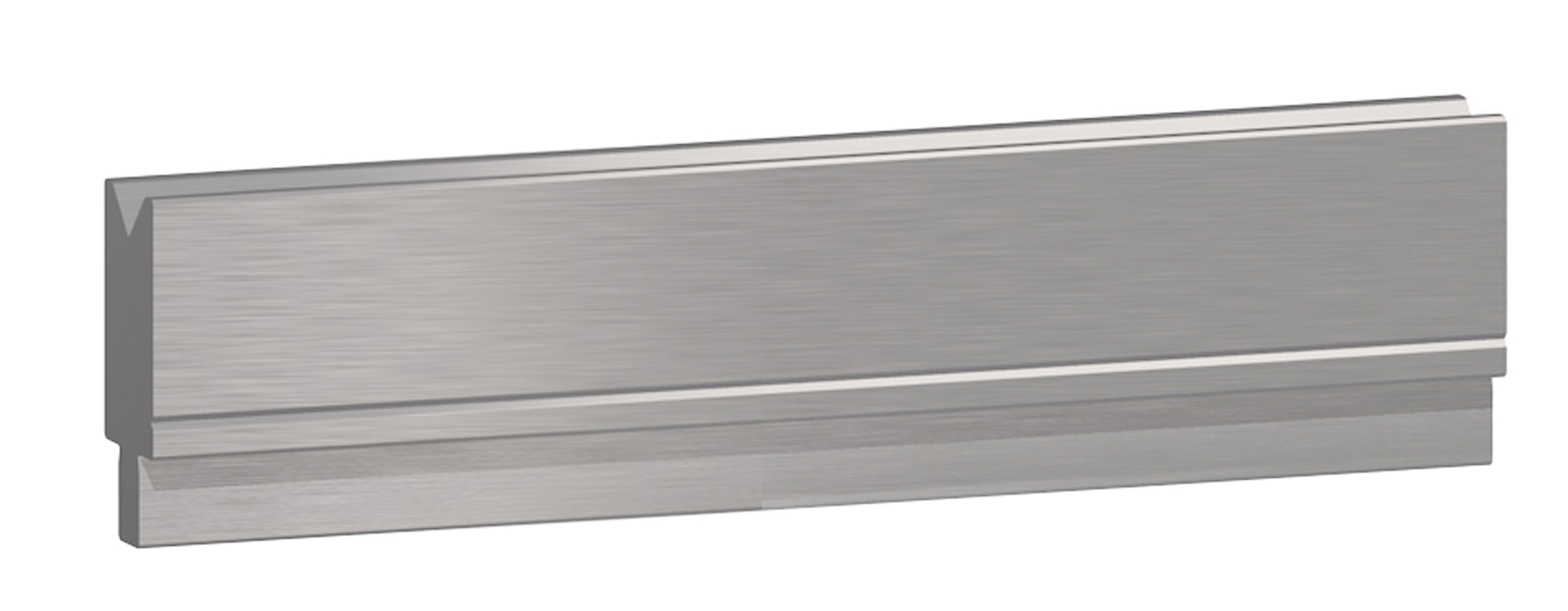

300 mm

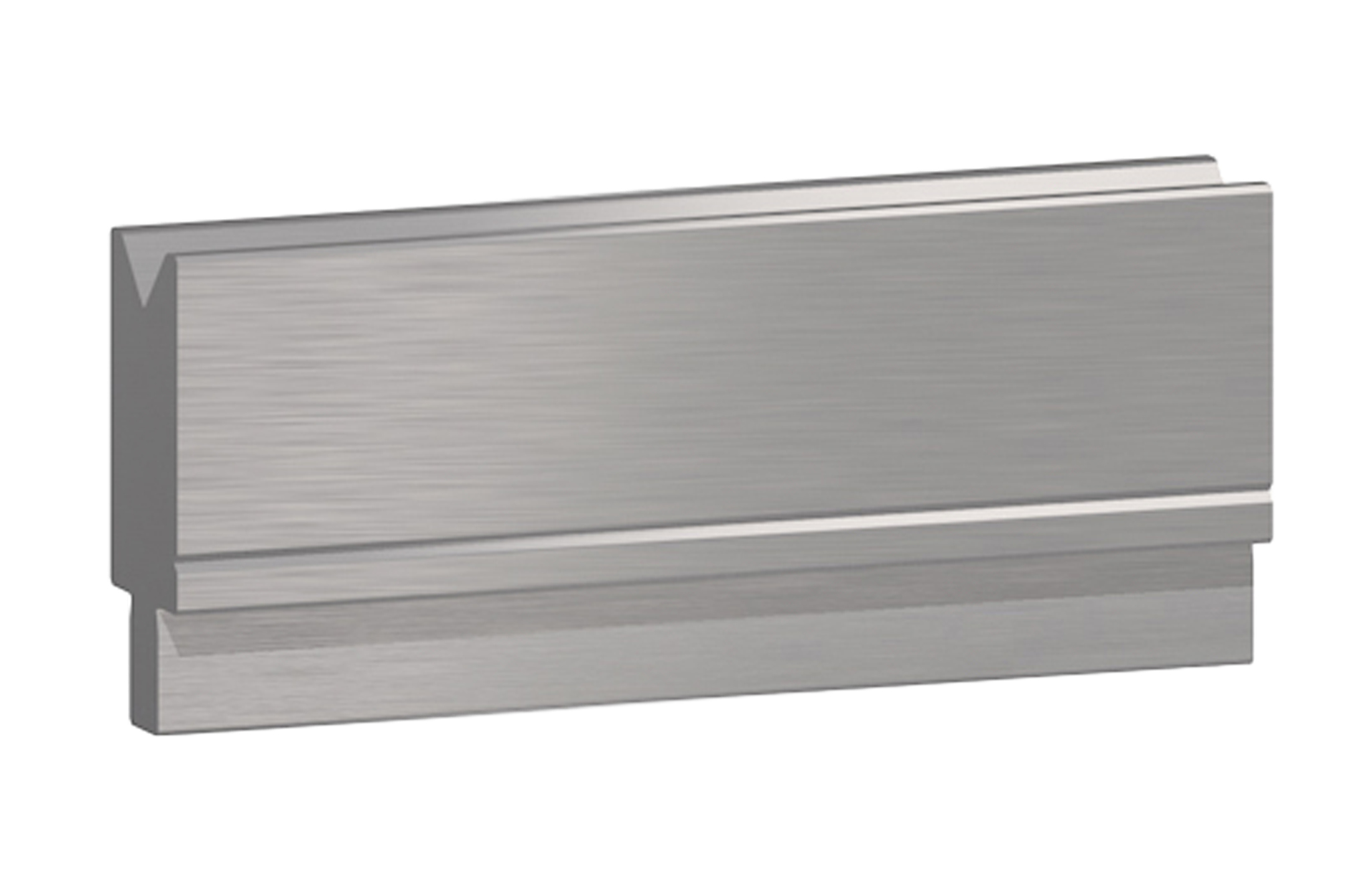

200 mm

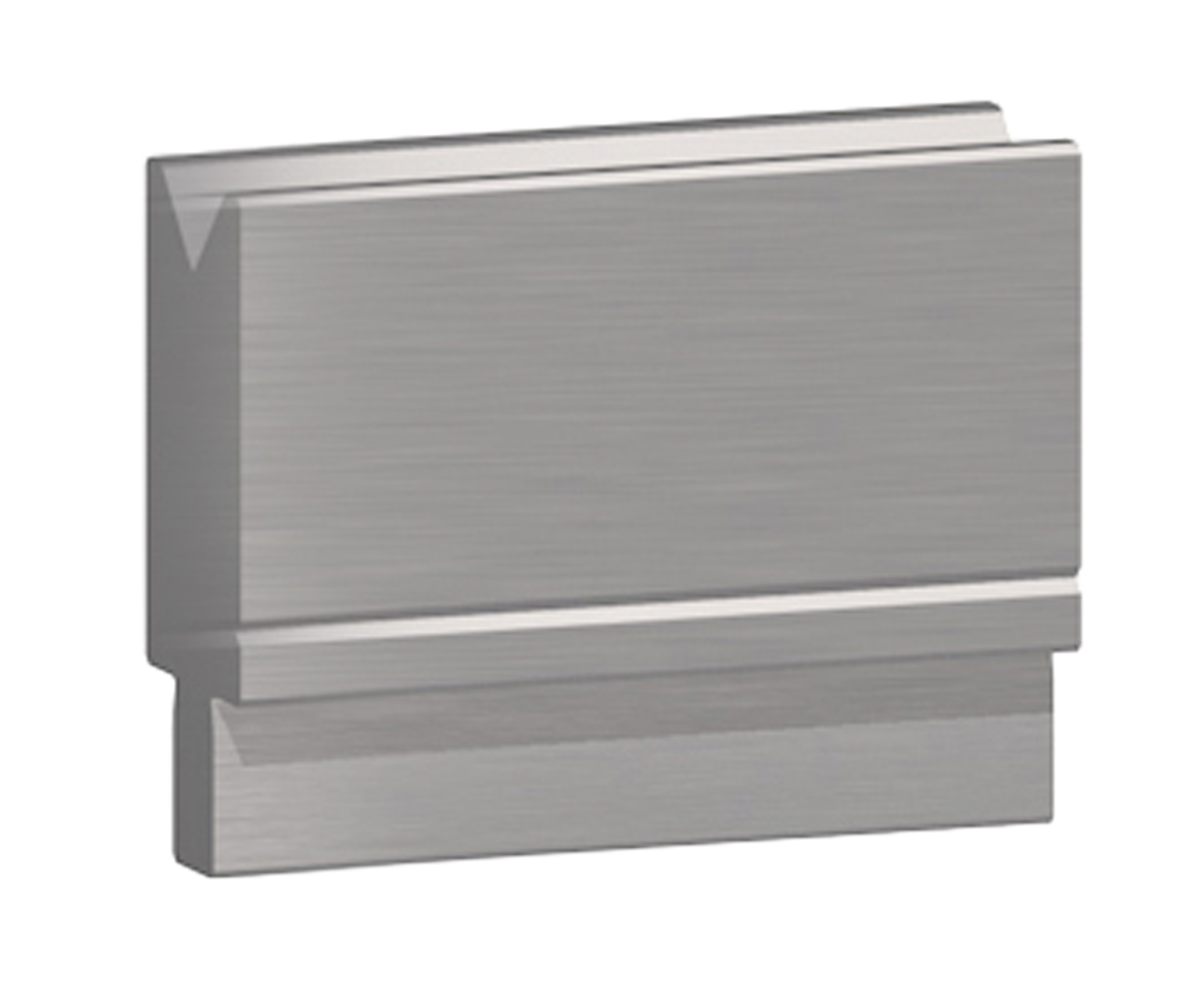

100 mm

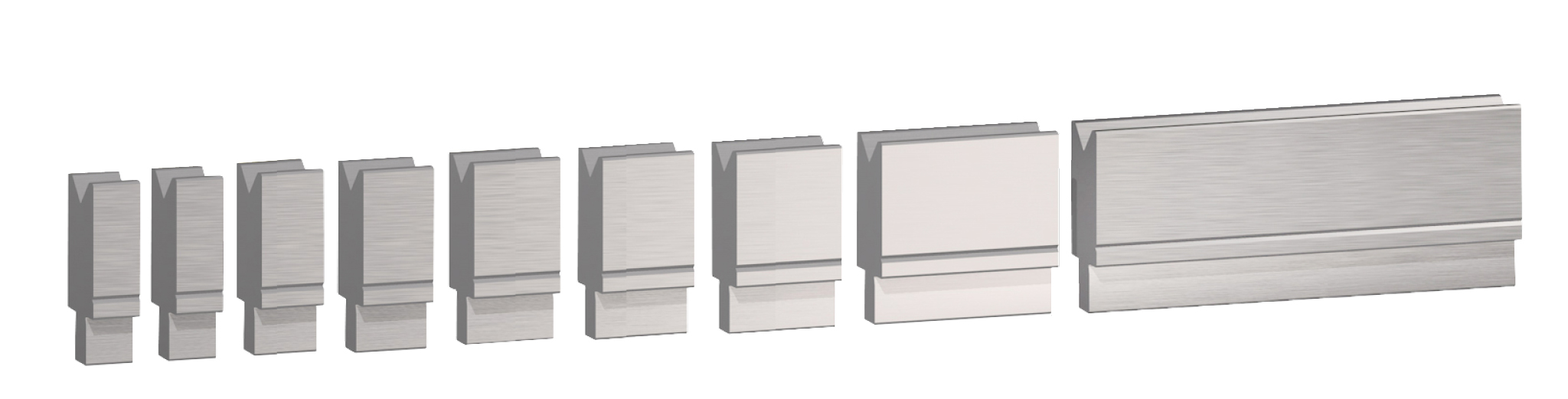

550 mm sectionalized
▶ 9 Segments
▶ Sectionalized dies are delivered as a complete set
▶ Dies : 25, 25, 30, 35, 40, 45, 50, 100, 200 = 550mm (set)
■ In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory extrusion experience?
A: We are a factory. 23years Manufacturing experience.Leading supplier in Maanshan city.
2. Q:Can you put my brand logo on these products?
A:Yes we can.
3. Q:What is the Minimum Order Quantity (MOQ) for your OEM service?
A:MOQ is 1pcs.
4. Q:When can you ship the products after we make payment?
A:Production time is normally 15-25 days.
