EVD15 Transformer Bobbin Horizontal Bobbin With 4+4 Pins

4+4 Pins Horizontal Bobbin. Phenolic Material. Pin pitch=3.7mm. Bobbin Size=17.9mmX15.5mmX10.4mm. Parallel Distance=15.0mm. We can make bobbin tooling to meet customer's need. UL REC:94V-0

EVD35 Horizontal High Frequency Transformer Bobbin with 7+7 Pins

7+7 Pins EVD horizontal transformer bobbin. PA66 bobbin. Parallel Distance=29.1mm. EVD35 phenolic bobbin. Bobbin Size=40.6mmX30mmX21.4mm. UL REC:94V-0.

EVD25 Horizontal 4+4 Pin Four Slots Transformer Bobbin

High frequency EVD25 four slots transformer bobbin. Bobbin Size=25.8mmX24mmX20mm. Nylon material EVD25 transformer bobbin. Parallel Distance=20mm. Pin pitch=5.0mm. UL REC:94V-0.

Double Slots EVD25 4+4 Pin Horizontal Transformer Bobbin

4+4 pin double slots EVD25 transformer bobbin. Horizontal type EVD25 coil bobbin. Bobbin Size=25.8mmX24mmX20mm. Nylon material EVD25 transformer bobbin. Parallel Distance=20mm. Pin pitch=5.0mm. UL REC:94V-0.

Horizontal EVD25 4+4 Pin Transformer Bobbin Made by Nylon

4+4 pin EVD25 ferrite core bobbin. Horizontal type EVD25 transformer bobbin. Bobbin Size=25.8mmX24mmX20mm. Nylon material EVD25 transformer bobbin. Parallel Distance=20mm. Pin pitch=5.0mm. UL REC:94V-0.

EVD25 Horizontal 10+10 Pin Flyback Power Transformer Bobbin

10+10 pin EVD25 bobbin for ferrite core. Basf material EVD25 transformer bobbin. Bobbin Size=37.5mmX27.18mmX11mm. Parallel Distance1=31mm. Parallel Distance2=21mm. Pin pitch=5.0mm. UL REC:94V-0.

High Frequency Transformer EVD25 Bobbin 10 Pin 5+5 Pins

Lead free 5+5 pin EVD25 bobbins. Horizontal type EVD25 transformer bobbin. Bobbin Size=33mmX26mmX18.9mm. Phenolic material EVD25 transformer bobbin. Parallel Distance=27mm. Pin pitch=5.0mm. UL REC:94V-0.

Common Mode Choke Inductor Bobbin 5+5 Pin EVD25 Bobbin

EVD25 ferrite fore horizontal bobbin. 5+5 pins EVD25 transformer bobbin. Bobbin Size=26.1mmX25.8mmX19.9mm. Parallel Distance=20mm. Pin pitch=4.0mm. PA66 material EVD25 transformer bobbin. UL REC:94V-0.

EVD25 Horizontal 5+5 Pin Double Slots Transformer Bobbin

EVD25 ferrite fore horizontal bobbin. 5+5 pins EVD25 transformer bobbin. Bobbin Size=26.1mmX25.8mmX19.9mm. Parallel Distance=20mm. Pin pitch=4.0mm. PA66 material EVD25 transformer bobbin. UL REC:94V-0.

EVD25 Power Supply Transformer Bobbin 4+4 Pin Horizontal Bobbin

Horizontal EVD25 transformer bobbin pin 4+4. Nylon material EVD25 transformer bobbin. Bobbin Size=25.8mmX24mmX20mm. Parallel Distance=17.4mm. Pin pitch=5.0mm. UL REC:94V-0.

Double Slots 4+4 Pin EVD25 Bobbin For Switching Power Transformer

EVD25 transformer horizontal coil bobbin. 4+4 pin double slots EVD25 coil bobbin. Bobbin Size=25.8mmX24mmX20mm. Nylon material EVD25 transformer bobbin. Parallel Distance=20mm. Pin pitch=5.0mm. UL REC:94V-0.

Four Slots EVD25 Horizontal High Power Transformer Bobbin

EVD25 filter inductor bobbin. 4+4 pin horizontal four slots transformer bobbin. Bobbin Size=25.8mmX24mmX20mm. Nylon material EVD25 transformer bobbin. Parallel Distance=20mm. Pin pitch=5.0mm. UL REC:94V-0.

EVD25 5+5 Pin High Voltage Transformer Bobbin

EVD25 switching power transformer manufacture. 5+5 pins EVD25 high frequency bobbin. Bobbin Pin Pitch=5.0mm. Parallel Distance=22.5mm. Bobbin Size=25.5mmX25.0mmX18.0mm. EVD25 transformer factoy. Supply matched ferrite cores.

EM15 Transformer Bobbin Vertical Bobbin With 4+3+2 Pins

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Size=19.6mmX16mmX8.9mm

EM15 High Frequency Flyback Transformer SMD Bobbin

SMD EM15 coil former. Horizontal EM15 multi-section transformer bobbin. Bobbin Size=25.0mmX15.0mmX6.22mm.Pin pitch=2.54mm. Parallel Distance=19.0mm. We accept customized EM15 small transformers mainly used in power supplies, lighting, UPS, computers, telecom communication systems, welding machines and other industries.

POT30 Electronic Transformer 5+5 Pins Vertical Bobbin

5+5 Pins POT30 electronic transformer bobbin.10 Pins vertical transformer bobbin.Parallel Distance=29.5mm. Bobbin Size=33.2mmX25mmX17.65mm. Phenolic bobbin. UL REC:94V-0.

POT23 High Frequency Power Transformer Bobbin

Supply POT23 vertical coil bobbin. 5+5 pins single slot POT transformer bobbin. Bobbin Size=22.5mmX18.8mmX8.1mm. Parallel Distance=20.4mm. Pin pitch=3.8mm. Phenolic bobbin. We have bobbin tooling, accept trial orders. UL REC:94V-0.

POT23 Power Supply High Frequency Transformer Frame

Current transformer manufacturer. 5+5 pins vertical POT transformer bobbin. Bobbin Size=23.7mmX19.2mmX7.0mm. Parallel Distance=20.2mm. Pin pitch=3.8mm. We are professional transformer bobbin factory, our bobbins are widely used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes

POT 23/18 Flyback Transformer Vertical Bobbin

LED driver transformer wholesale. POT23 5+5 pins vertical bobbin. Bobbin Size=23.5mmX22.0mmX16.5mm. Parallel Distance=20.5mm. Pin pitch=3.8mm. DIP transformer bobbin. We are professional transformer bobbin factory, our bobbins are widely used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes

Phenolic Material EOP7.5 Bobbin Horizontal 4+4 Pin

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.8mm,Pin Dia=0.5mm Size=9.2mmX7.7mmX9.8mm

EOP9.5 Horizontal 4+4P Transfromer Bobbin

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=7.3mm,Pin Dia=0.5mm Size=9.5mmX9.2mmX12.4mm

EOP9.5 Horizontal Electronic Transformer Bobbin with 4+4 Pin

4+4 Pins Phenolic Bobbin,Horizontal Bobbin,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=7.3mm,Pin Dia=0.5mm Size=9.5mmX9.2mmX11.4mm

EOP9.5 4+4P Transfromer Bobbins for Ferrite Core, Used in Flyback Transformers

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=7.3mm,Pin Dia=0.5mm Size=9.8mmX9.5mmX12.4mm

EOP9.5 4+4P for Ferrite Core, Used in High Frequency Transformers

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=7.3mm,Pin Dia=0.5mm Size=9.5mmX9.2mmX11.4mm

EOP9.5 Bobbins with Ferrite Core Used in Flyback Transformers

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=7.3mm,Pin Dia=0.5mm Size=9.8mmX9..5mmX12.4mm

PEE64 Transformer Bobbin Used For Planar Transformer

PEE64 flyback transformer bobbin, no pin PEE type bobbin made of PA66 Material, we have bobbin tooling to meet customers's requirement. Bobbin Size=79mmX32mmX15.8mm.

EPO12.6 Transformer Bobbin Horizontal Bobbin With 3+3 Pins

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=4.5mm Parallel Distance=6.4mm Size=13mmX8.4mmX8.1mm

EPO12.6 Horizontal Bobbin Dip Type With Double Slots

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=4.5mm Parallel Distance=6.4mm Size=13mmX8.4mmX8.1mm

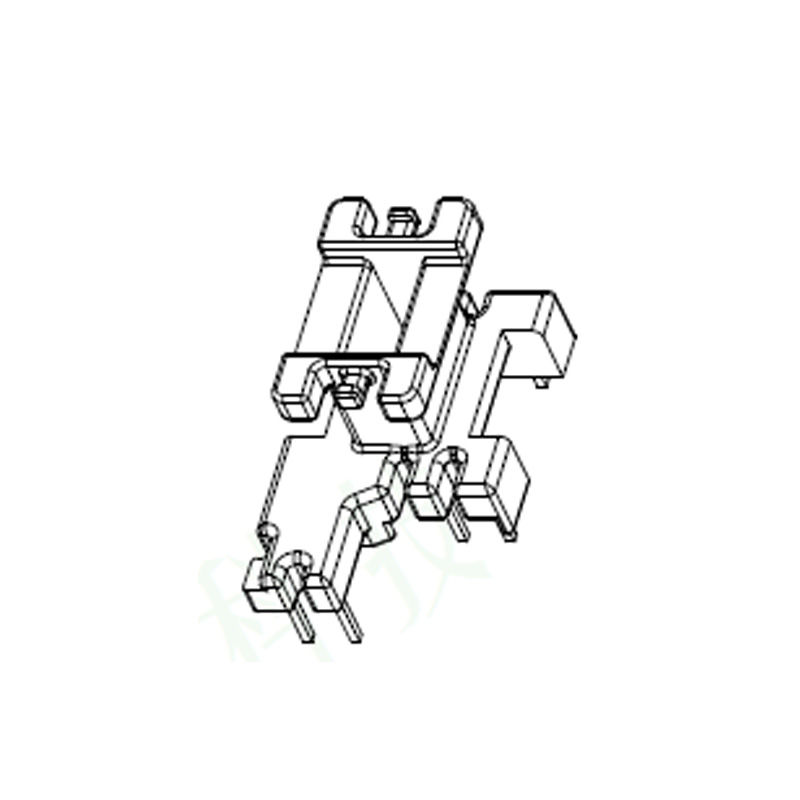

EEL13 Transformer Bobbin Vertical Bobbin With 3+2+2 Pins

3+2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch1=4.0mm, Pin pitch2=2.8mm Parallel Distance1=10.65mm

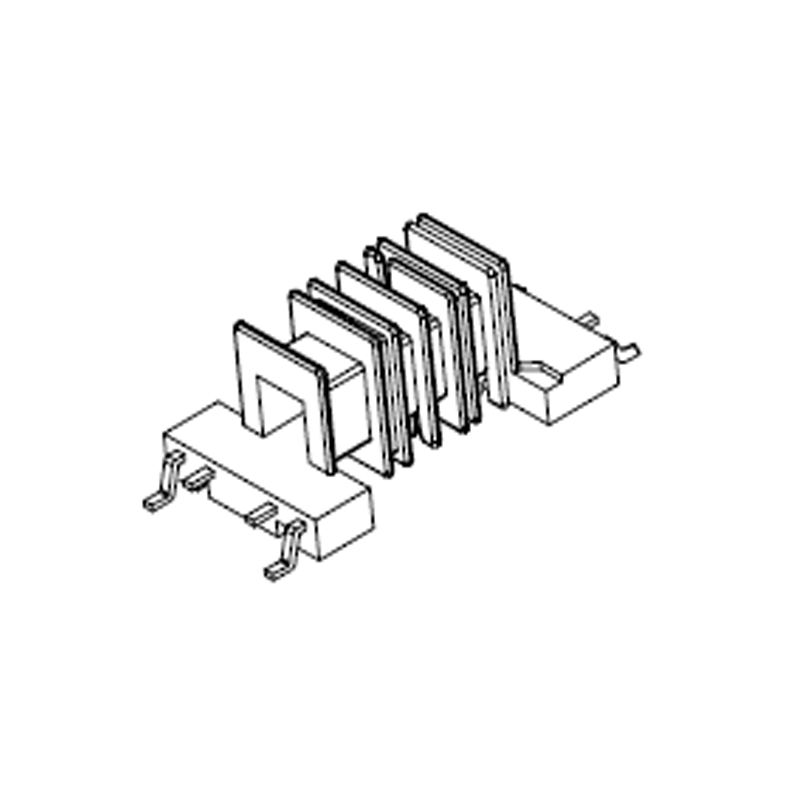

EEL10 Electronic Transformer Bobbin, 2+2 Pin and Six Slots Bobbin

2+2 Pins Horizontal EEL10 Bobbin,Phenolic Material Parallel Distance=17.45mm,UL REC:94V-0 Size=19.25mmX9.9mmX7.25mm

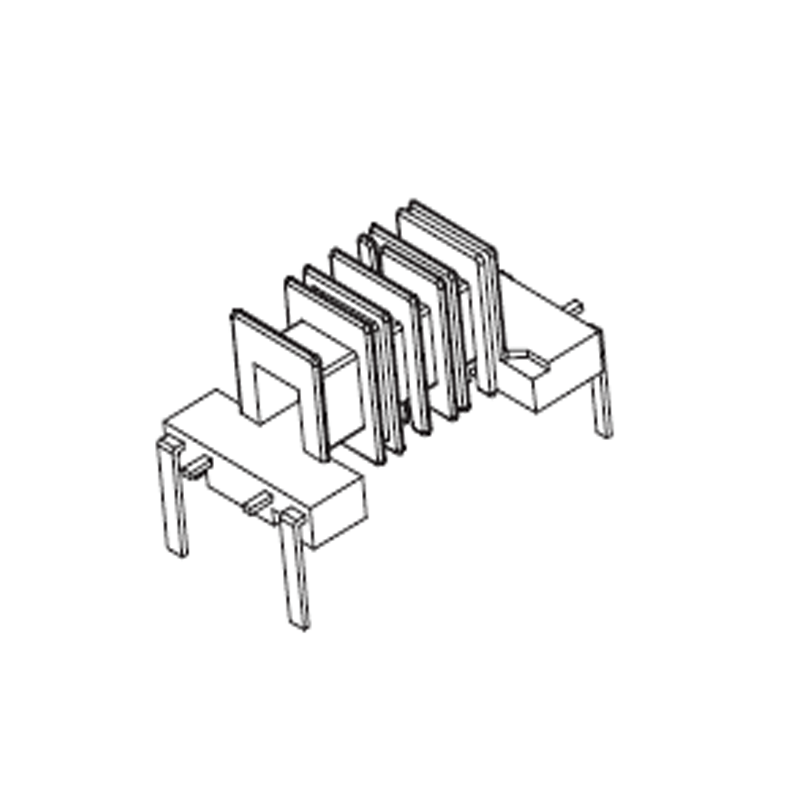

EEL10 Bobbin For High Frequency Transfromers and Inductors, Pin 2+2 Horizontal Bobbin

2+2 Pins Horizontal EEL10 Bobbin,Phenolic Material Parallel Distance=17.45mm,UL REC:94V-0 Size=17.45mmX9.9mmX7.25mm

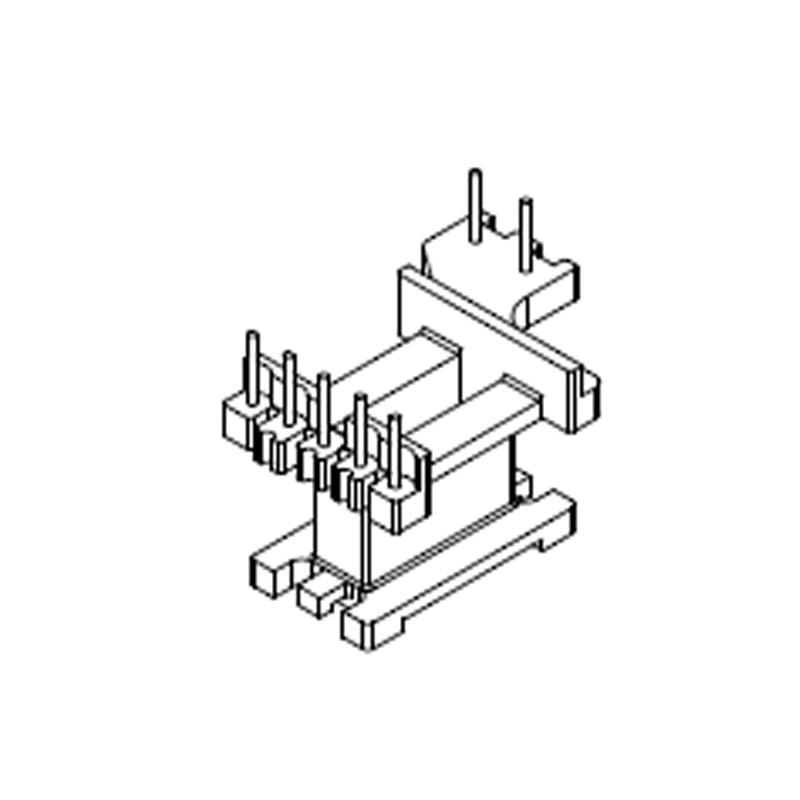

EEL15 Transformer Bobbin Vertical Bobbin With 5+2 Pins

5+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch1=3.2mm, Pin pitch2=4.5mm Parallel Distance=22.5mm

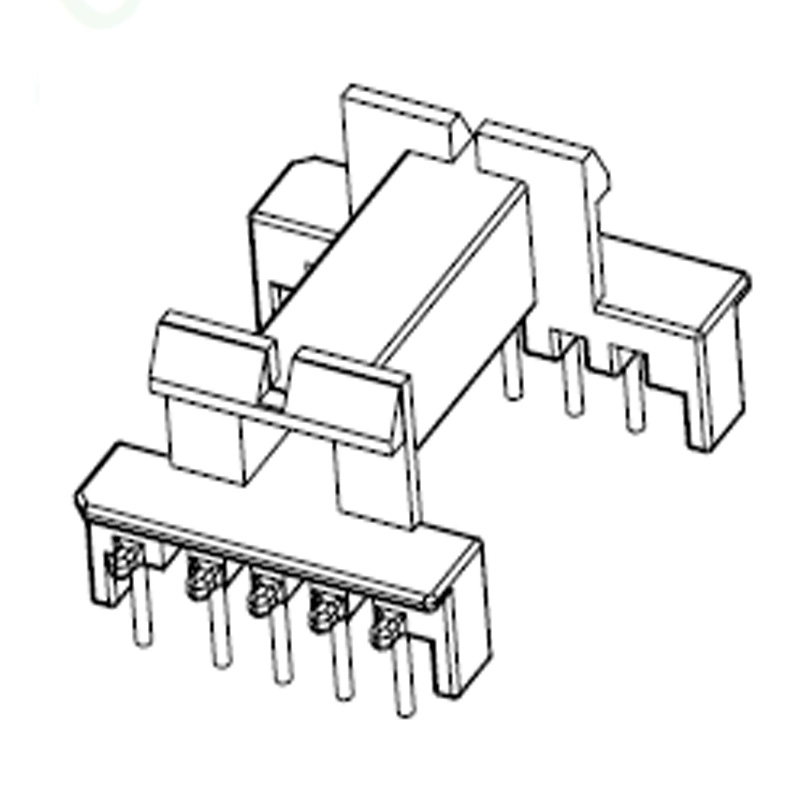

EEL19 High Frequency Horizontal Transformer Bobbin 5+7 Pin

5+7 pins EEL19 electronic transformer bobbin. Horizontal type DIP bobbin. Pin pitch1=3.5mm. Pin pitch2=4.5mm. We can make bobbin tooling. Bobbin Size=30mmX27.8mmX15.6mm. UL REC:94V-0

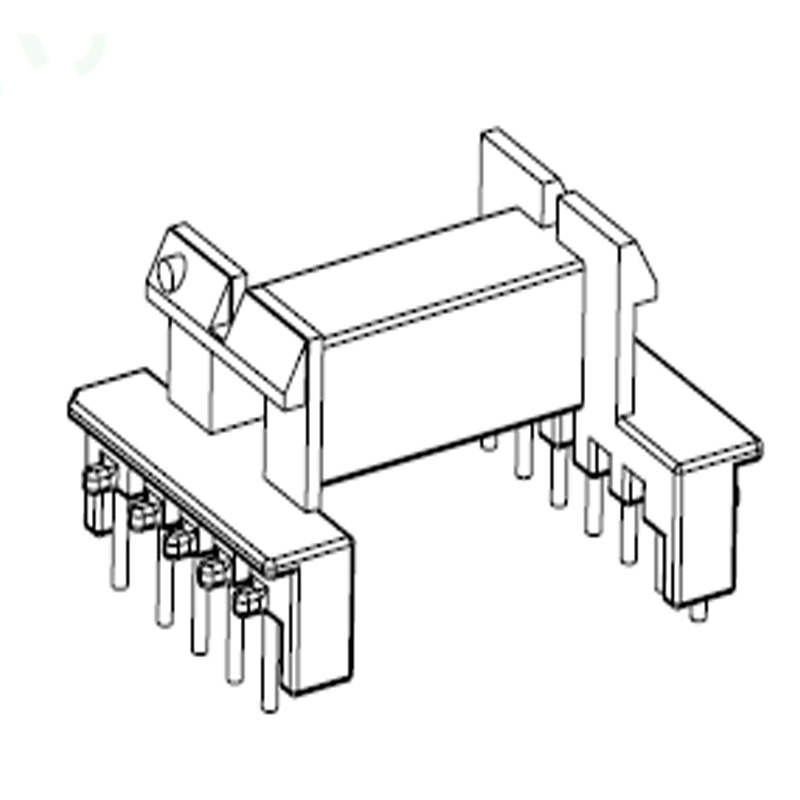

EEL19 High Frequency Bobbin 5+7 Pin Bakelite Horizontal Bobbin

12 pin EEL19 horizontal transformer bobbin. DIP bobbin. Pin pitch1=3.5mm. Pin pitch2=4.5mm. Parallel distance=24.2mm. We can make bobbin tooling. Bobbin Size=30mmX27.8mmX15.6mm.

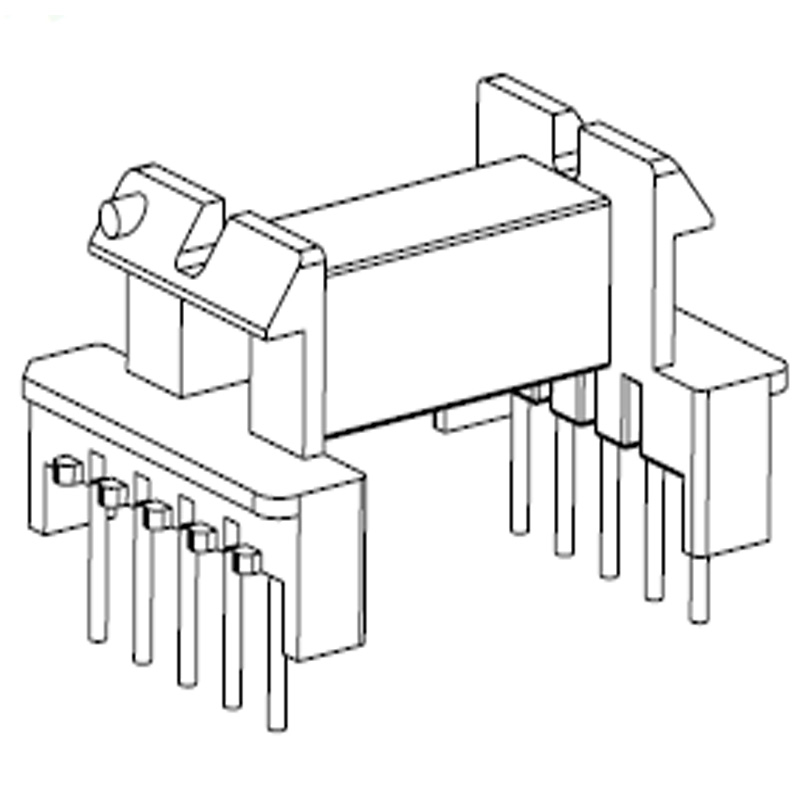

EEL19 Transformer Bobbin Horizontal Bakelite Transformer Bobbin 5+5 Pin

5+5 pin EEL19 horizontal transformer bobbin. DIP bobbin. Pin pitch1=3.5mm. Pin pitch2=4.5mm. Parallel distance=24.2mm. We can make bobbin tooling. Bobbin Size=30mmX21mmX15.6mm.
