EVD25 Horizontal 5+5 Pin Double Slots Transformer Bobbin

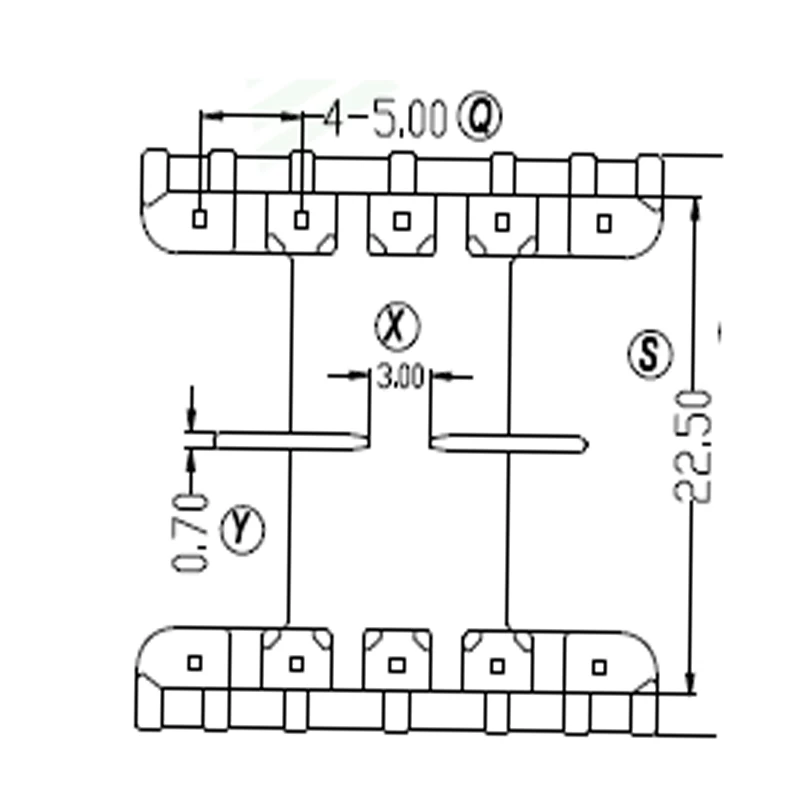

EVD25 ferrite fore horizontal bobbin. 5+5 pins EVD25 transformer bobbin. Bobbin Size=26.1mmX25.8mmX19.9mm. Parallel Distance=20mm. Pin pitch=4.0mm.  PA66 material EVD25 transformer bobbin. UL REC:94V-0.



High efficiency double slots EVD25 high frequency flyback transformer bobbin, magnetic materials with good temperature and long service life, fast delivery time and good after-sale, we can provide samples for the testing.


Quick Details

Part No: MCT-EVD2507(H5+5P2F)

Brand Name: MCT

Material: PA66

Color: Black, Beige

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EVD25 Horizontal 5+5 Pin Double Slots Transformer Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

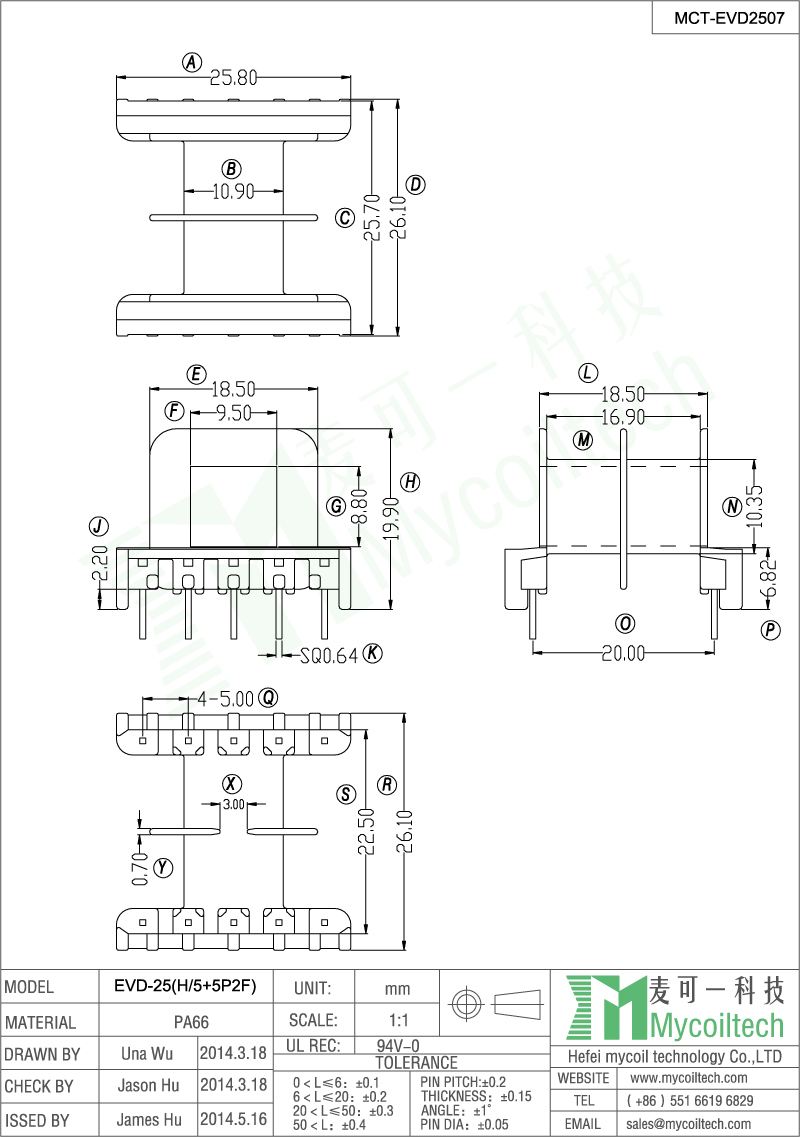

Product Specification

EVD25 Transformer Bobbin Bakelite Transformer Bobbin
