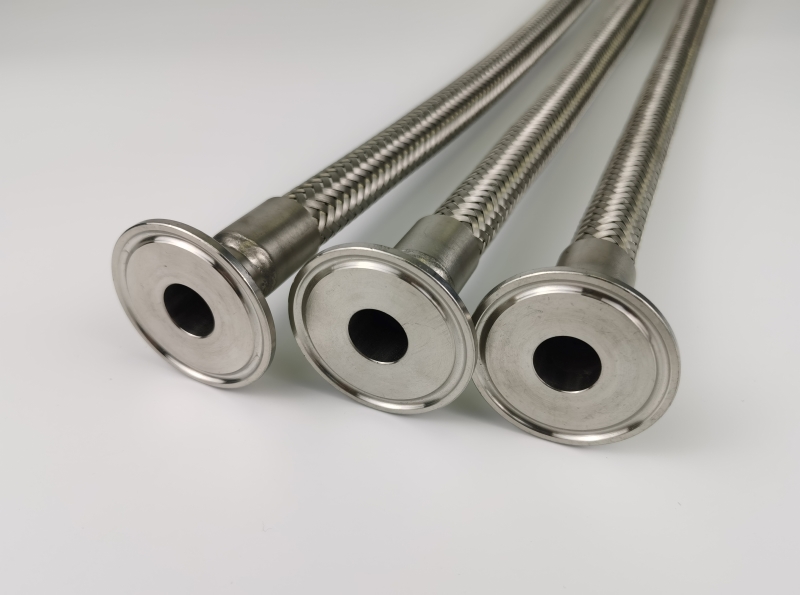

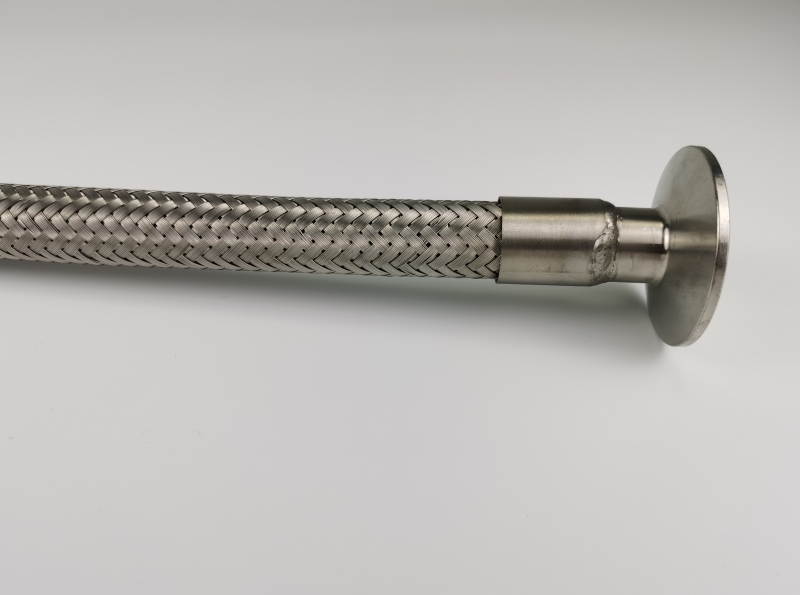

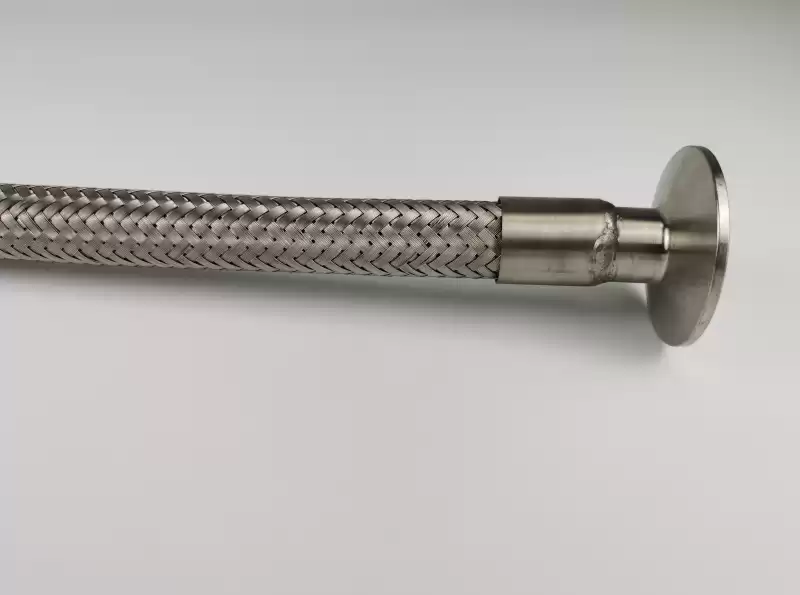

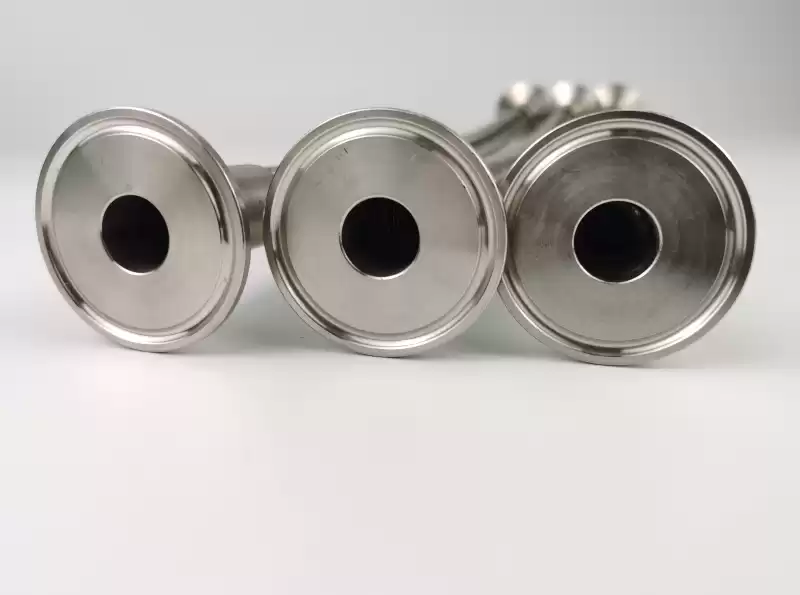

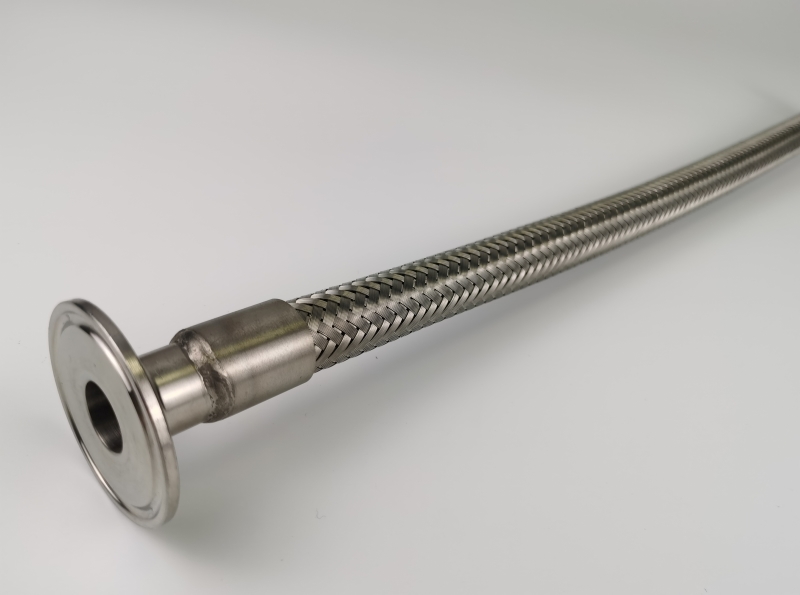

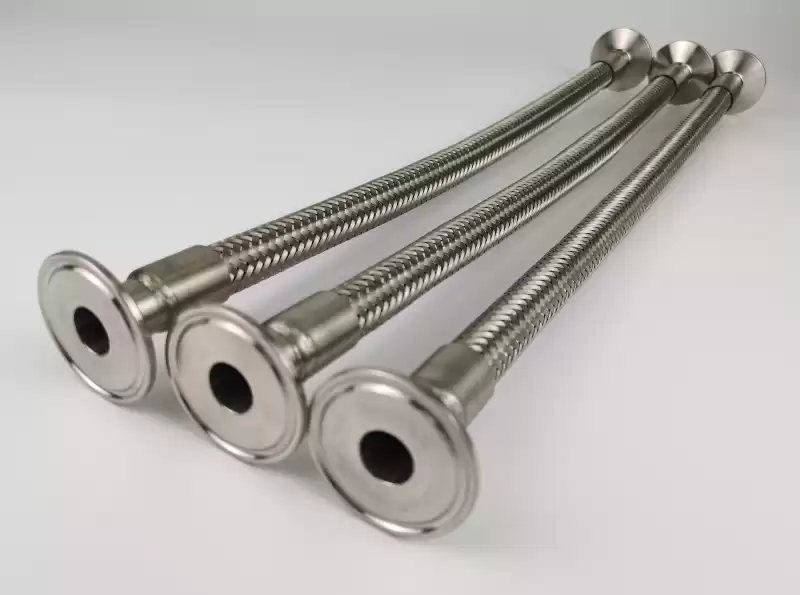

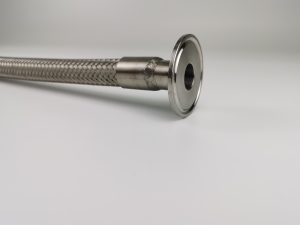

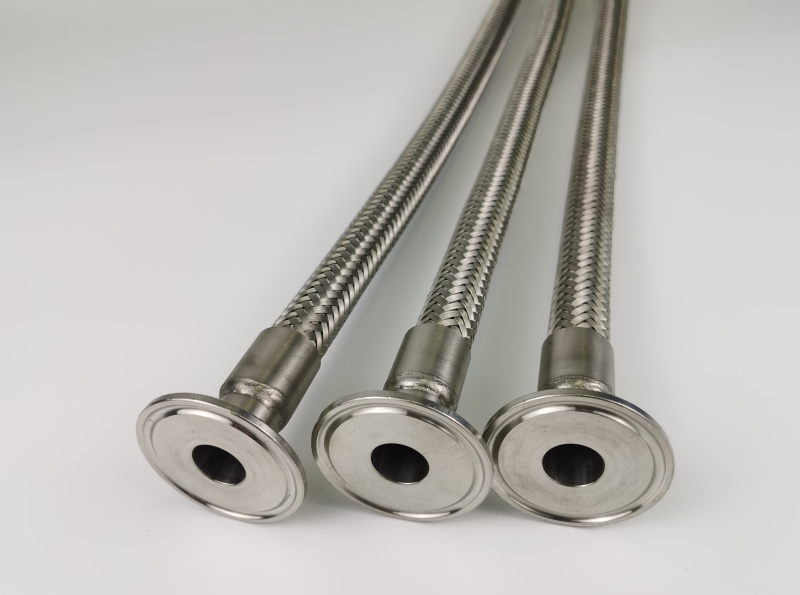

Braided Flexible Metal Hose with chuck quick coupling
Braided Flexible metal hose is made of stainless steel bellows braided with a layer or multilayer steel wire or steel belt net set, both ends with joints or flanges, that is, by the combination of corrugated flexible hose, stainless steel wires braided and joint, used for conveying various media flexible components, compensation components, sealing components, connecting components, shock absorption components.
Flexible Metal Hose can be bent at will and the internal stress produced by bending under the condition of rated bending radius is very small, so it can bring great convenience to the installation work, and also plays a certain role in ensuring the safe operation of pipeline system. This is the main reason why some piping systems must use metal hoses.
Chuck quick coupling braided flexible metal hose has good flexibility and temperature, pressure, corrosion resistance, suitable for pharmaceutical and other kinds of fluid medium transportation, clean, no slag. Thermal expansion absorption and vibration absorption play an important role in the movement of pipeline system.
Advantages:
1. Suitable for all kinds of complex, bad indoor and outdoor environment.
2. In contact with water, no oxidation stains are formed, which optically resemble corrosion.
3. Qualified superior sealability.
4. High pressure and high temperature, high temperature and low temperature resistant, corrosion resistant.
Feature's industrial flexible metal hose maintain the high quality of standard products, delivery on-time and non-standard custom long-term steady supply reliable qualified and stable supplier.
All proesses Certificated by ISO9001, all products 100% qualified before shipping.

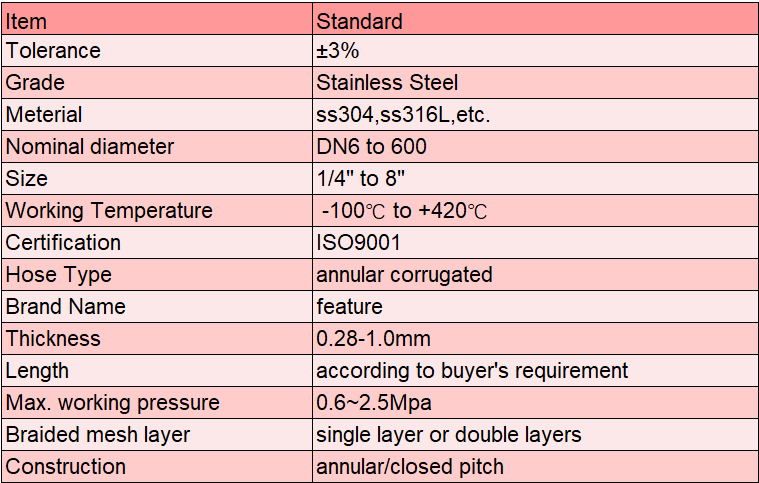

Product Standards:

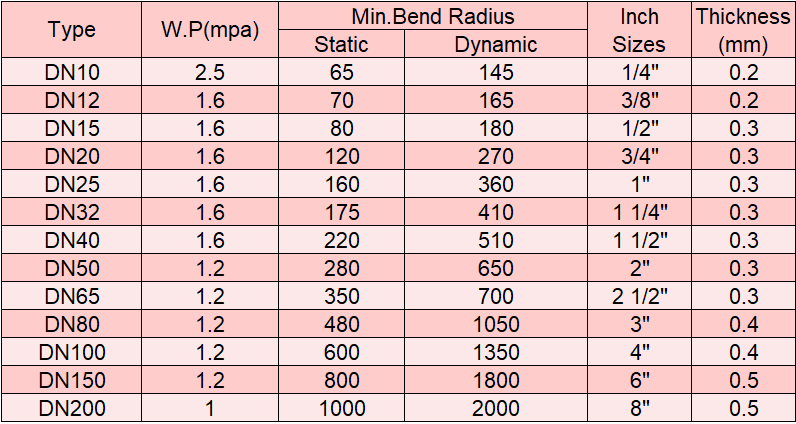

Flexible Metal Hose Performance Parameters As Below:
Custom Service
1.Costomized with specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.
2.OEM/ODM service can provide what you wanted and custom design printed to your specification.
3.Purchas a free sample order for test quality before place on full order.
