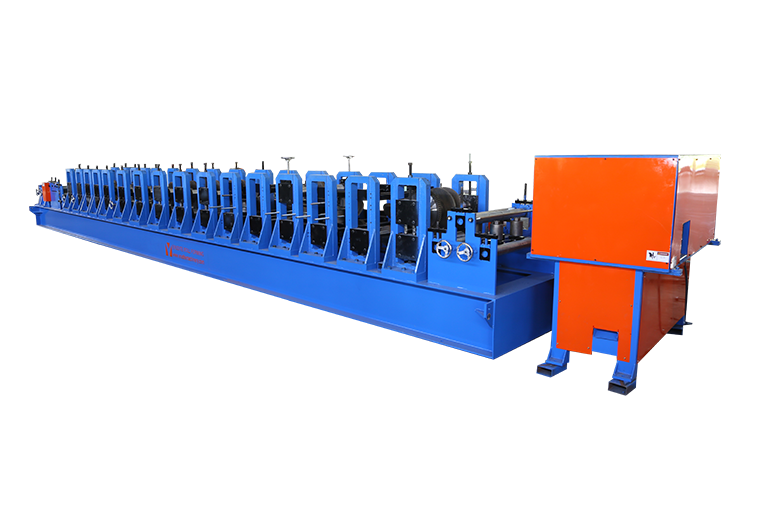

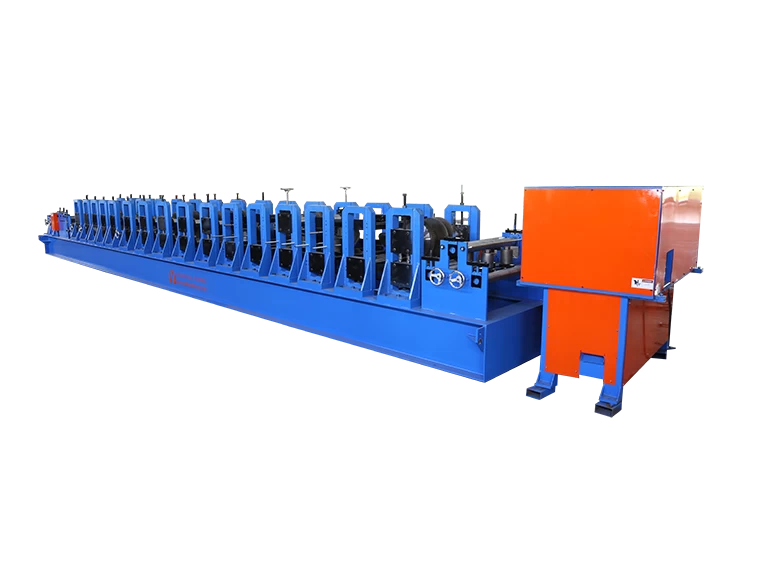

C120-200 Purlin Roll Forming Machine

Free Standing Structure





        C120-200 Purlin Machine with saw cutting device





1.Main features of C120-200 purlin roll forming machine


    The advantages of C purlin machine are as follows:

    1.Free standing structure, Stable and durable

    2.With saw cutting device for different thickness material.

    3.Easy operation, low maintenance cost



2.Detailed Images of C purlin roll forming machine


    Machine Parts

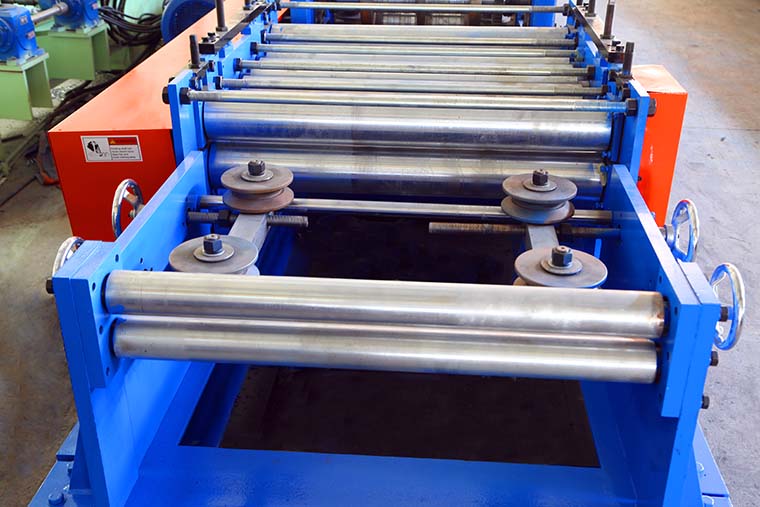

        1) C purlin machine feeding guide and leveling device

        Brand: BMS    Original: China

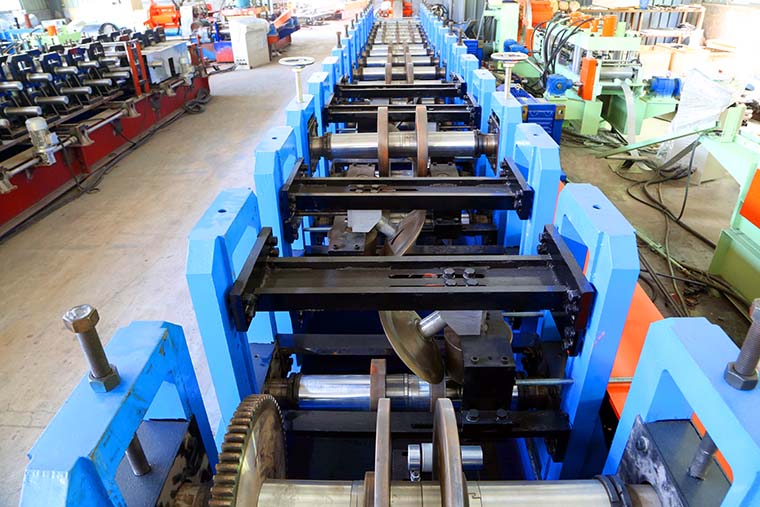

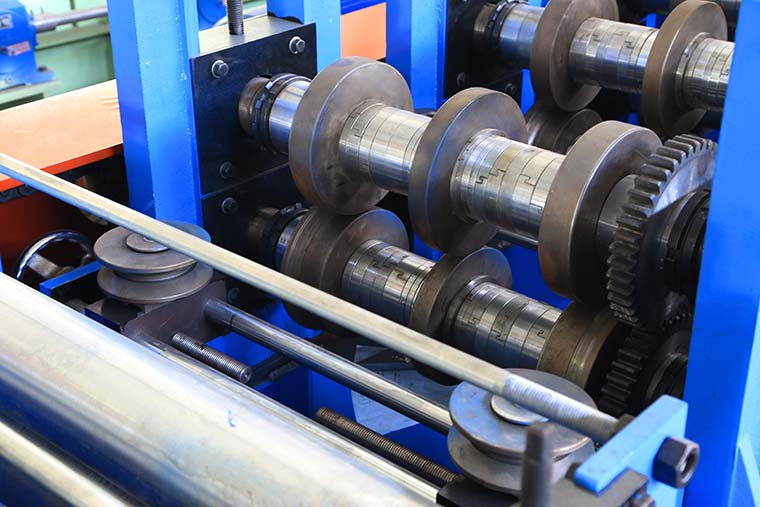

        2) C purlin machine rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 350# H type steel by welding

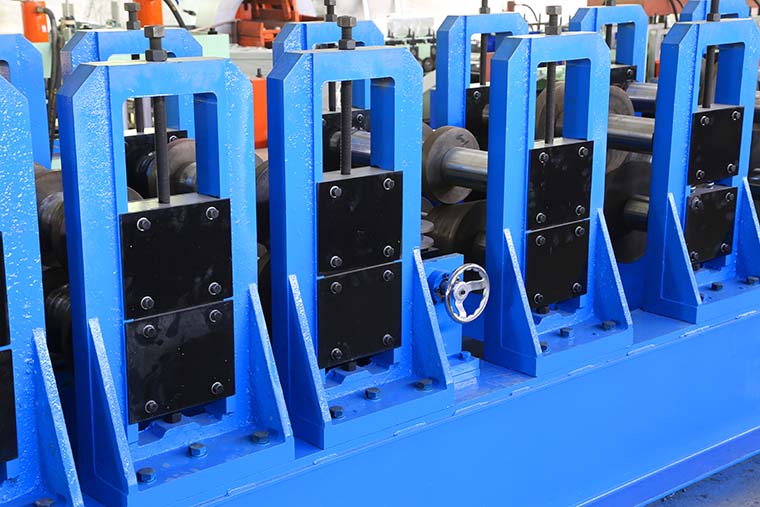

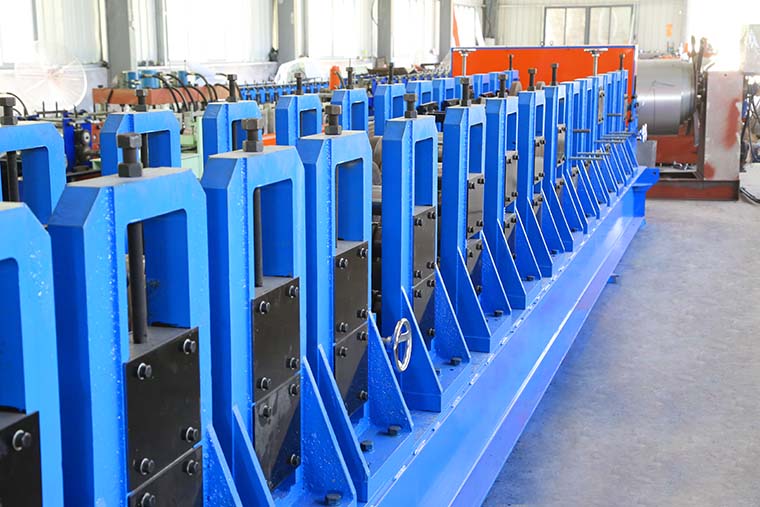

       3) C purlin machine free standing structure

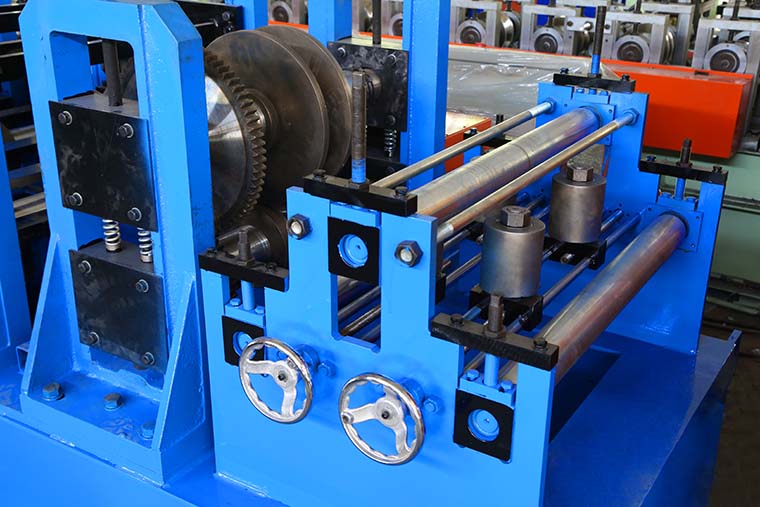

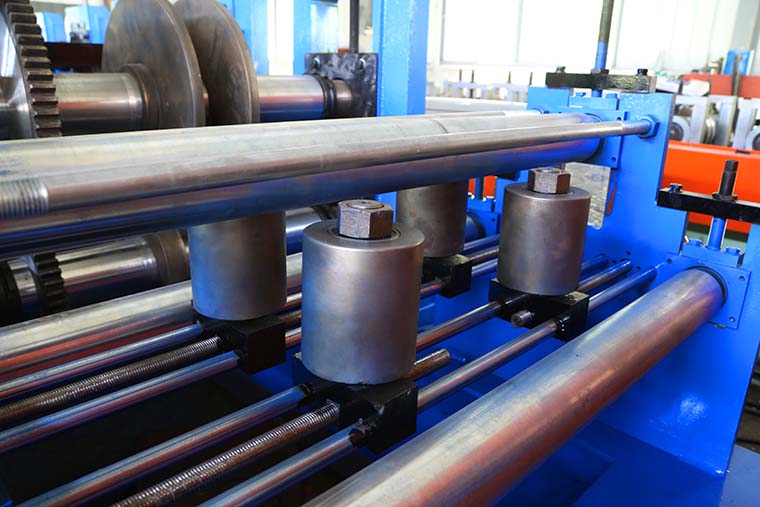

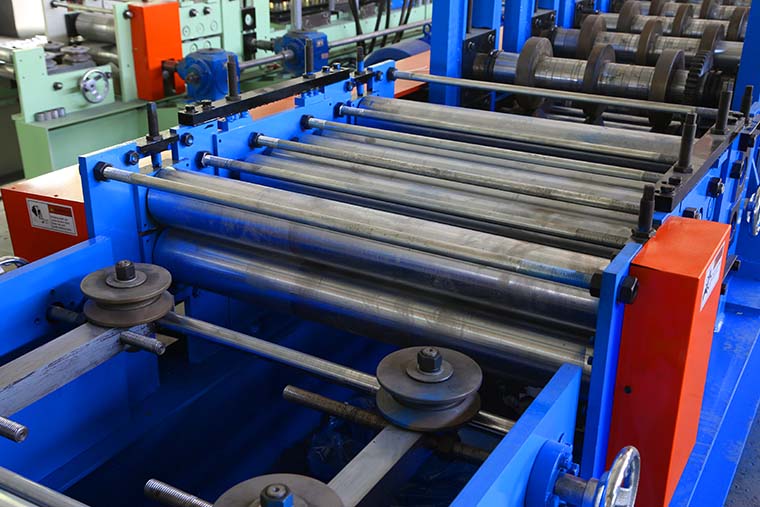

        4) C purlin machine straightening device

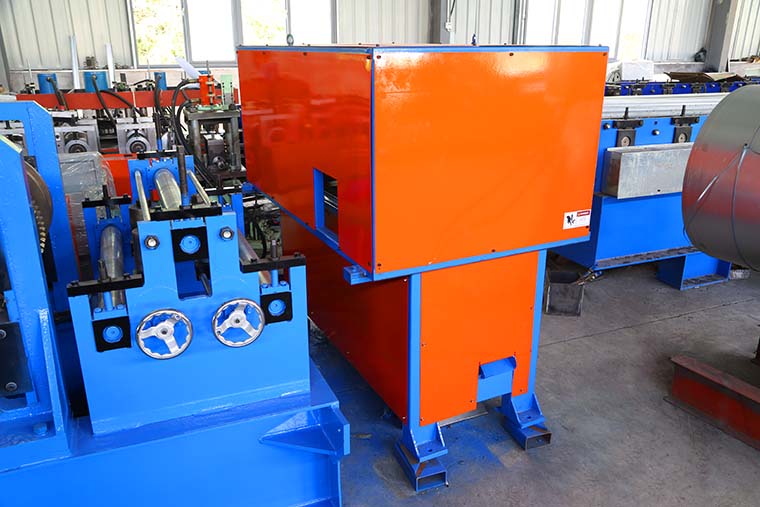

        5) C purlin machine sawing cutting



        6) C purlin machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton






        With 3 tons hydraulic decoiler for option




        6) C purlin exit rack

        Un-powered,one unit




Other details of of C purlin roll forming machine


Suitable for material with thickness 0.8-2.0mm

Shafts manufactured from 45#,Main shaft diameter=φ75/95mm,precision machined

Motor driving,Gear chain transmission, 14 rollers to form

Main motor=11KW , Frequency speed control. Forming speed approx.18m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of purlin roll forming machine C120-200


1. The warranty of purlin roll forming machine C120- 200

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms of trade


1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
