C60-250 Purlin Roll Forming Machine (flying saw cutting)

It incorporate the Taiwan latest features in steel stud and track manufacturing technology with advanced PLC control system. Applicable material: Galvanized steel(GI),prepainted galvanized steel(PPGI),SGCC,SGCH.Yield strength 245Mpa(commercial hard)~550Mpa(full hard, high tensile).

The purlin machine can produce size C50-150

It is widely used as the supporter of roof and wall in large-scale and mid-scale construction,.and our automatic C purlin machines can automatically replacement purlins’ model number.,have a high speed(20M/min).

.





      C60-250 Purlin Roll Forming Machine (Flying Saw Cutting)

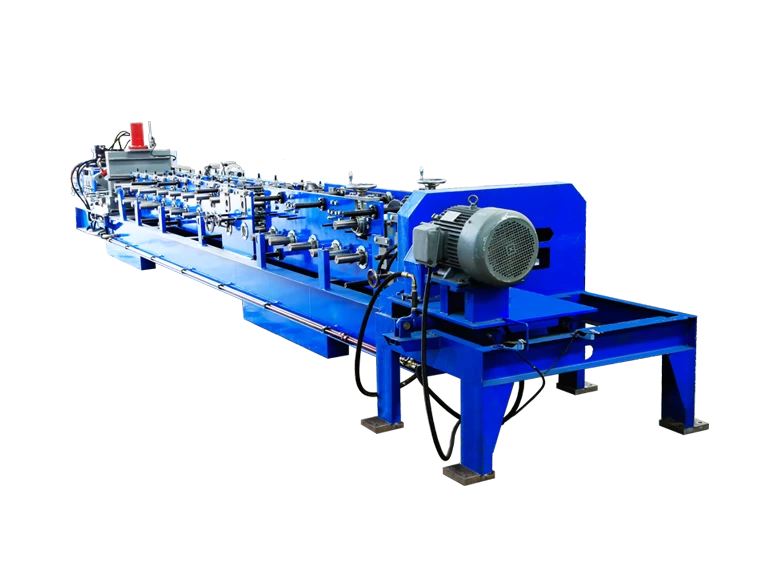

C Purlin Roll Forming Machine


1.Main features of quickly change C purlin roll forming machine


    The advantages of C purlin machine AUTOMATIC size-change type are as follows:

    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side



2.Detailed Images of C shaped steel forming machine


    Machine Parts

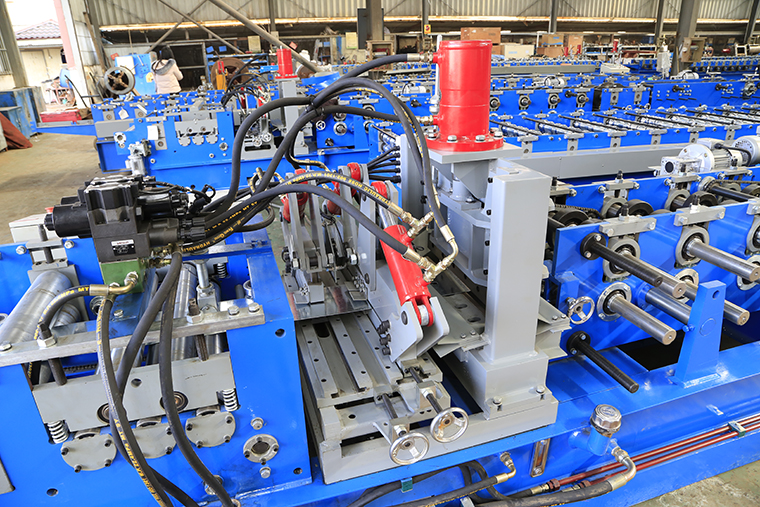

        1) C purlin machine punching system

        Brand: BMS    Original: China

        with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.


      C Purlin Roll Forming Machine

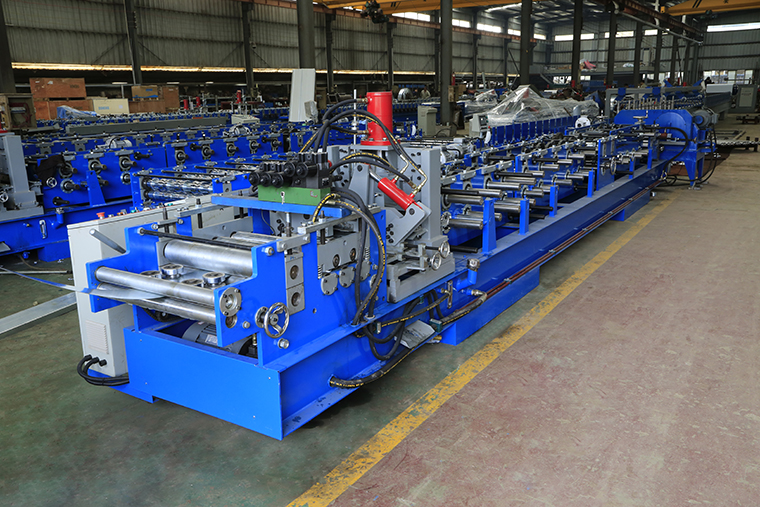

        2)   C purlin machine rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding


C Purlin Roll Forming Machine

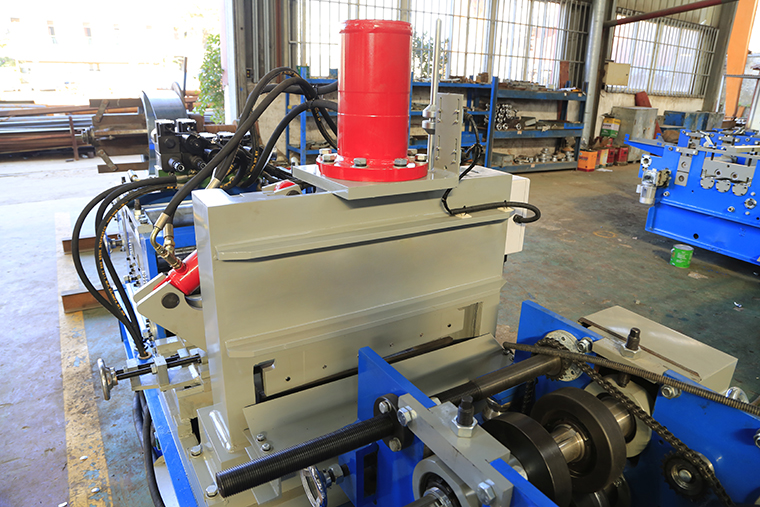

       3) C purlin machine hydraulic pre cutter

        No need to change cutter for different size,

        made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Pre-punching & Pre-cutting, stop to punch, stop to cut
        hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa


C Purlin Roll Forming Machine



        4) C purlin machine encoder

        International brand: Japan koyo / Omron . Accurate calulating.


C Purlin Roll Forming Machine

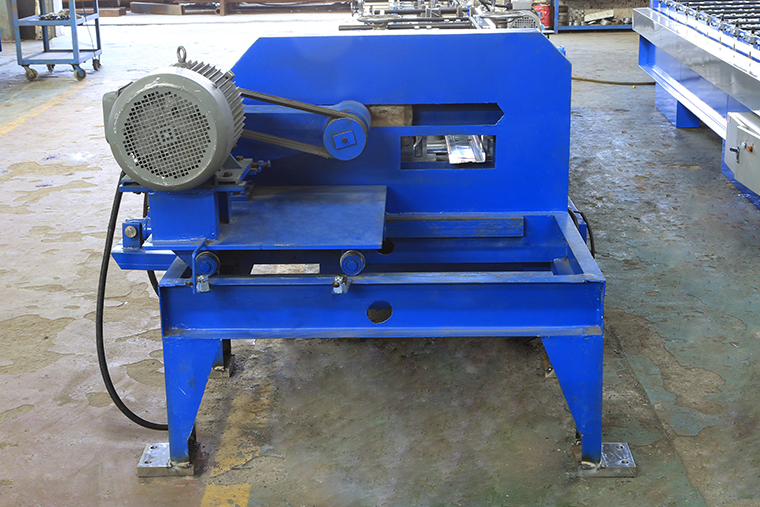

        5) C purlin machine flying saw

        Easy operation, one cutter for all different size


C Purlin Roll Forming Machine


        6) C purlin machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton





C Purlin Roll Forming Machine

        With 3 tons hydraulic decoiler for option


C Purlin Roll Forming Machine


        7) C purlin exit rack

        Un-powered,one unit


C Purlin Roll Forming Machine




Other detailes of of C purlin roll forming machine


Suitable for material with thickness 1.2-2.5mm

Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling

Main motor=18.5KW , Frequency speed control. Forming speed approx.18m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Just adjust required WEB,HEIGHT and LIP by hand wheel with the help of

position clock(with digit display for easy operation) on it,

and then input the required production data on the touch screen.

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

like traditional old style machine  (which takes over 45 minutes for each production size changing).


Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of purlin roll forming machine C60-250


1. The warranty of purlin roll forming machine C60- 250

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms of trade


1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
