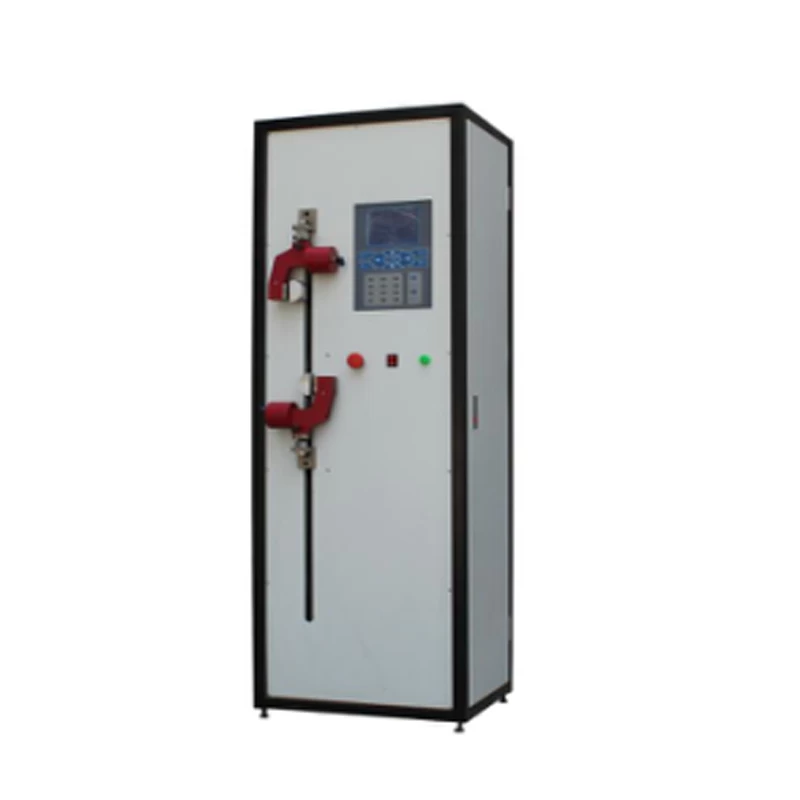

Chemical Fiber Filament Electronic Strength Tester GT-A03
Product Introduction
|
Application:
Electronic Strength Tester is used to test the breaking strength and elongation percentage of various synthetic mono-filament, spandex, nylon, polyester filament yarn, ply multifilament and textured yarn.
Standards:
GB/T14344,ISO2062,GB/T3916,ASTM D2256, DIN BS etc.
|

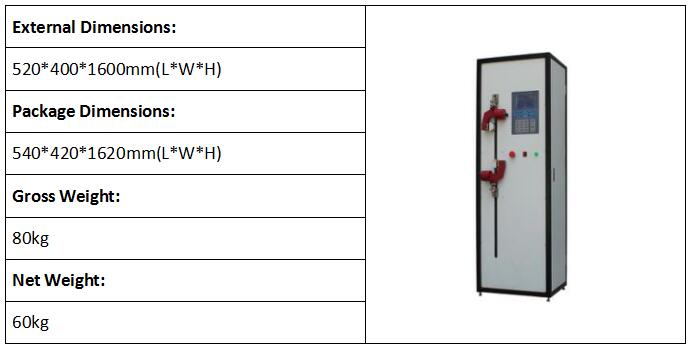

Dimensions
Feature
1. Dynamic Data Sampling Frequency is More than 800HZ, ease to catch peak value, most precisely indicate property of textile material.
2. Equipped with LCD 320X240, test result showed directly.
3. Free to set value in Edit settings window to satisfy different sample testings.
4. Data can be automatically grouped according to parameter setting.
5. Clamp distance can be set freely, and positioned automatically according to the setting system.
6. Elongation time can be set freely.
7. Equipped with pneumatic claw chuck. Optional: manual claw grips.
8. Support online operation and with specialist software analysis system for data analysis and backup.
9. Domestic first creation sample test and data-processing software with multithreading.
Software can online analyze data and show the statistic value of breaking strength, elongation rate, yield strength, initial modulus, and plastic deformation.

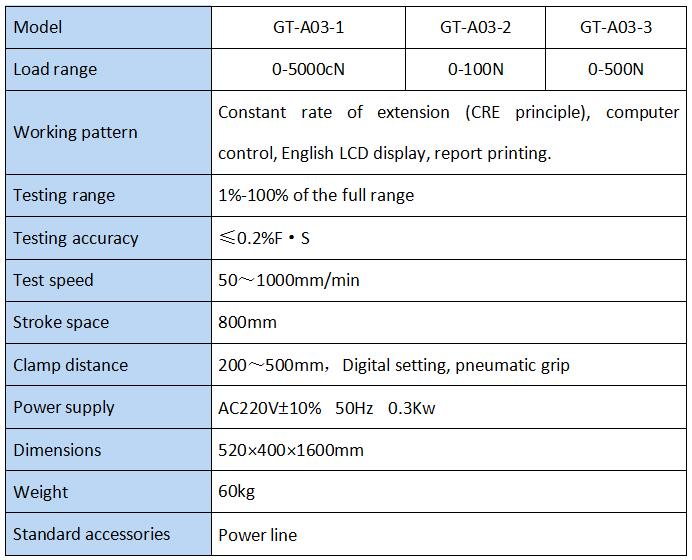

Key Specifications
Application Industry
All kinds of materials can be tested GT-A03 Chemical Fiber Filament Electronic Strength Tester.
