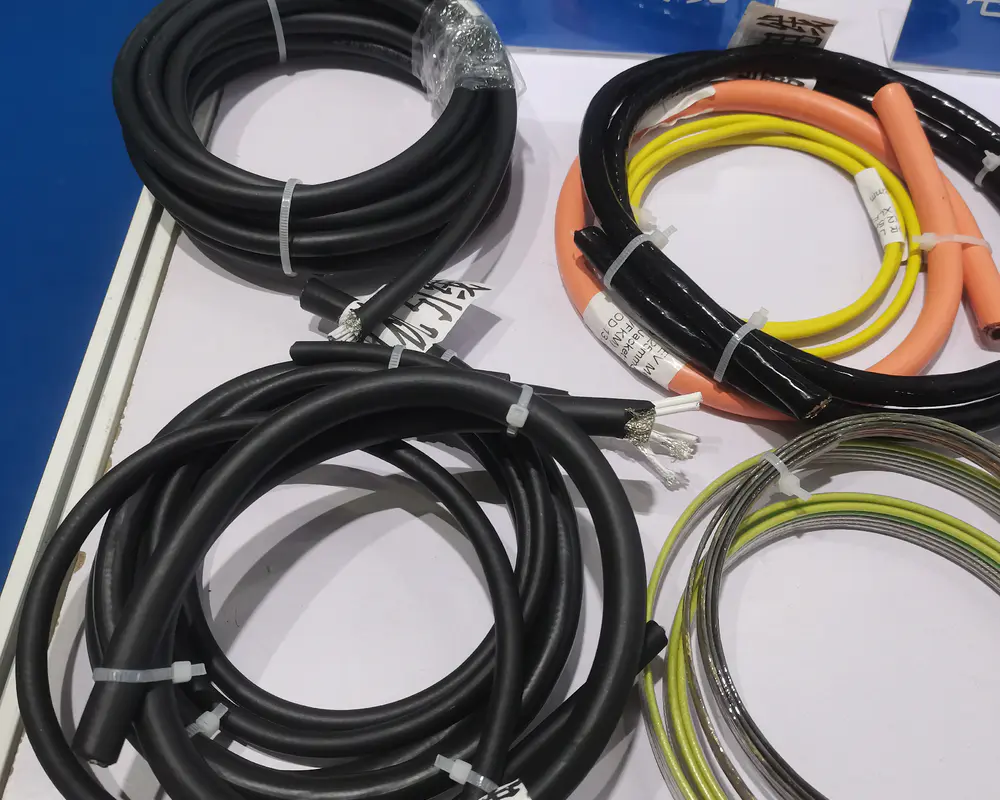

CITCABLE PEEK wires Offering outstanding resistance to radiation, heat, fatigue, impact, and creep, PEEK wires are made from materials that minimize the elution of gases and metalions. PEEK wires are used in aerospace equipment, semiconductor/LCD manufacturing machine parts, medical devices, cleaning jigs, chemical equipment parts, precision machine parts, high-insulation terminals, food/beverage production equipment parts, and other products.
Key Features
1. Working temperature:-75β---- +260β ( 500°F)
2. 300V. 600V rating or 60KV
3. Halogen free and low toxicity
4. Excellent radiation resistance
5. High Radiation Resistance 109 Rad= 107 Gy
6. PEEK cable outstanding and excellent abrasion resistance. dielectric strength. chemical resistance. thermal endurance in long. protects against corrosion

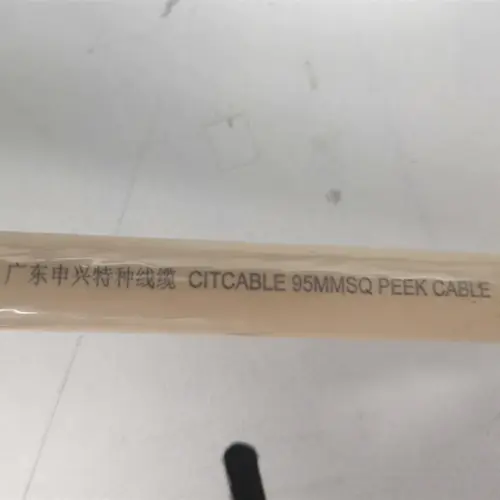

10mmSQ 16mmSQ 25mmSQ 35mmSQ 50mmSQ 70mmSQ 95mmSQ PEEK CABLE Hi Temperature cables for use in the nuclear industry with the following specs:
Environmental conditions
a)Temperature Up to 316°C (600°F)
b)(Moisture 95% relative humidity Liquid Present
c) Radiation rate:
Normal: up to 1 Gy/h (100 R/h)
[up to 263 kGy (26 Mrads)]
LOCA* up to 5 Gy/h (500 R/h)
(d) Atmosphere traces of ozone slightly Acidic
Conductor Material
All strands used in the manufacture of the conductors shall be soft annealed silver or nickel-coated
copper conforming to ASTM B298 or ASTM B355.
Shield/Briad
The shield material shall be either stainless steel, silver tin-coated or nickel-coated copper
Insulation Material Polyetheretherketone (PEEK) insulation material is suggested, and the primary and jacket
insulation material shall be to MIL-P-46183.
High radiation resistance peek wire cable, peek wire cable company, solid copper with peek insulation wire for Motor ,Motor Rewind with peek insulation wire.
