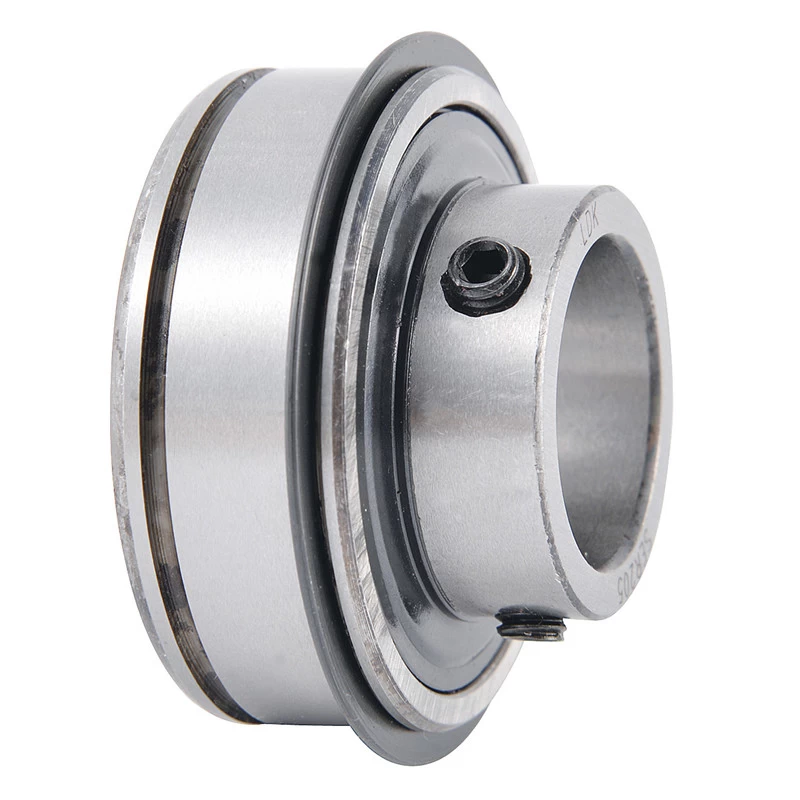

Chrome Steel Bearing Insert With Setscrew Locking SER2


SER  Standard duty,With cylindrical outer ring and snap ring,Setscrew locking



Facebook Twitter Pinterest LinkedIn 分享

Chrome Steel Bearing Insert SER210

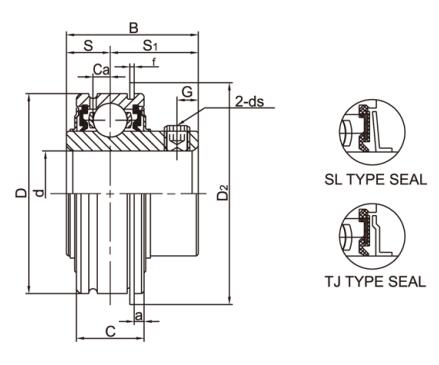

Bearing No. Shaft Dia Dimensions (mm)
Basic Load Rating
( KN )
Weight (kg)
d D B C S S1 a r D2 (Max.) G ds Ca Dynamic Cr Static Cor
(in) (mm) (mm) (in.UNF)
SER201  12 47 31 15.9 10.3 20.7 2.38 1.07 52.7 5 M6X1 4.05 9.55 4.78 0.27
SER201-8 1/2   47 31 15.9 10.3 20.7 2.38 1.07 52.7 5   1/4-28 4.05 0.27
SER202  15 47 31 15.9 10.3 20.7 2.38 1.07 52.7 5 M6X1 4.05 9.55 4.78 0.25
SER202-9  9/16    47 31 15.9 10.3 20.7 2.38 1.07 52.7 5   1/4-28 4.05 0.25
SER202-10 5/8   47 31 15.9 10.3 20.7 2.38 1.07 52.7 5   1/4-28 4.05 0.25
SER203   17 47 31 15.9 10.3 20.7 2.38 1.07 52.7 5 M6X1 4.05 9.55 4.78 0.23
SER203-11 11/16   47 31 15.9 10.3 20.7 2.38 1.07 52.7 5   1/4-28 4.05 0.23
SER204  20 47 31 15.9 10.3 20.7 2.38 1.07 52.7 5 M6X1 4.05 12.82 6.65 0.22
SER204-12 3/4   47 31 15.9 10.3 20.7 2.38 1.07 52.7 5   1/4-28 4.05 0.22
SER205  25 52 34.9 19 13.1 21.8 2.38 1.07 57.9 5.3 M6X1 5.5 14.03 8.05 0.28
SER205-13  13/16    52 34.9 19 13.1 21.8 2.38 1.07 57.9 5.3   1/4-28 5.5 0.28
SER205-14  7/8    52 34.9 19 13.1 21.8 2.38 1.07 57.9 5.3   1/4-28 5.5 0.28
SER205-15  15/16    52 34.9 19 13.1 21.8 2.38 1.07 57.9 5.3   1/4-28 5.5 0.28
SER205-16 1   52 34.9 19 13.1 21.8 2.38 1.07 57.9 5.3   1/4-28 5.5 0.28
SER206  30 62 38.1 22.2 15.9 22.2 3.18 1.65 67.7 5.5 M6X1 5.5 19.47 11.43 0.38
SER206-17  1-1/16    62 38.1 22.2 15.9 22.2 3.18 1.65 67.7 5.5   1/4-28 5.5 0.38
SER206-18  1-1/8    62 38.1 22.2 15.9 22.2 3.18 1.65 67.7 5.5   1/4-28 5.5 0.38
SER206-19  1-3/16    62 38.1 22.2 15.9 22.2 3.18 1.65 67.7 5.5   1/4-28 5.5 0.38
SER206-20 1-1/4   62 38.1 22.2 15.9 22.2 3.18 1.65 67.7 5.5   1/4-28 5.5 0.38
SER207  35 72 42.9 23.8 17.5 25.4 3.18 1.65 78.6 6.4 M8X1 6.3 25.69 15.55 0.56
SER207-20  1-1/4    72 42.9 23.8 17.5 25.4 3.18 1.65 78.6 6.4   5/16-24 6.3 0.56
SER207-21  1-5/16    72 42.9 23.8 17.5 25.4 3.18 1.65 78.6 6.4   5/16-24 6.3 0.56
SER207-22  1-3/8    72 42.9 23.8 17.5 25.4 3.18 1.65 78.6 6.4   5/16-24 6.3 0.56
SER207-23 1-7/16   72 42.9 23.8 17.5 25.4 3.18 1.65 78.6 6.4   5/16-24 6.3 0.56
SER208  40 80 49.2 27.8 19 30.2 3.18 1.65 86.6 8 M8X1 7.5 29.51 18.14 0.87
SER208-24  1-1/2    80 49.2 27.8 19 30.2 3.18 1.65 86.6 8   5/16-24 7.5 0.87
SER208-25 1-9/16   80 49.2 27.8 19 30.2 3.18 1.65 86.6 8   5/16-24 7.5 0.87
SER209  45 85 49.2 27.8 19 30.2 3.18 1.65 91.6 8 M8X1 7.5 31.85 20.8 0.95
SER209-26  1-5/8    85 49.2 27.8 19 30.2 3.18 1.65 91.6 8   5/16-24 7.5 0.95
SER209-27  1-11/16    85 49.2 27.8 19 30.2 3.18 1.65 91.6 8   5/16-24 7.5 0.95
SER209-28 1-3/4   85 49.2 27.8 19 30.2 3.18 1.65 91.6 8   5/16-24 7.5 0.95
SER210  50 90 51.6 28.6 19 32.6 3.18 2.41 96.5 10 M10X1.25 6.8 34.99 23.7 1.03
SER210-30  1-7/8    90 51.6 28.6 19 32.6 3.18 2.41 96.5 10   3/8-24 6.8 1.03
SER210-31  1-15/16    90 51.6 28.6 19 32.6 3.18 2.41 96.5 10   3/8-24 6.8 1.03
SER210-32 2   90 51.6 28.6 19 32.6 3.18 2.41 96.5 10   3/8-24 6.8 1.03
SER211  55 100 55.6 30.2 22.2 33.4 3.18 2.41 106.5 10 M10X1.25 7.6 43.34 29.39 1.21
SER211-32  2   100 55.6 30.2 22.2 33.4 3.18 2.41 106.5 10   3/8-24 7.6 1.21
SER211-33  2-1/16    100 55.6 30.2 22.2 33.4 3.18 2.41 106.5 10   3/8-24 7.6 1.21
SER211-34  2-1/8    100 55.6 30.2 22.2 33.4 3.18 2.41 106.5 10   3/8-24 7.6 1.21
SER211-35 2-3/16   100 55.6 30.2 22.2 33.4 3.18 2.41 106.5 10   3/8-24 7.6 1.21
SER212    60 110 65.1 31.8 25.4 39.7 3.18 2.41 116.6 10 M10X1.25   8.4 47.68 33.43 1.68
SER212-36  2-1/4    110 65.1 31.8 25.4 39.7 3.18 2.41 116.6 10   3/8-24 8.4 1.68
SER212-37  2-5/16    110 65.1 31.8 25.4 39.7 3.18 2.41 116.6 10   3/8-24 8.4 1.68
SER212-38  2-3/8    110 65.1 31.8 25.4 39.7 3.18 2.41 116.6 10   3/8-24 8.4 1.68
SER212-39 2-7/16   110 65.1 31.8 25.4 39.7 3.18 2.41 116.6 10   3/8-24 8.4 1.68
