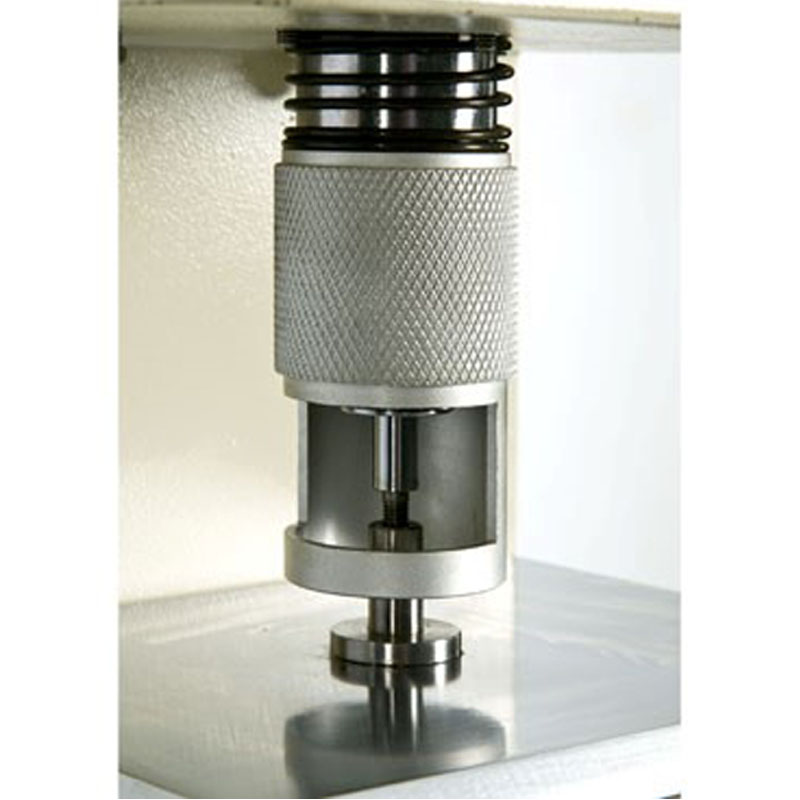

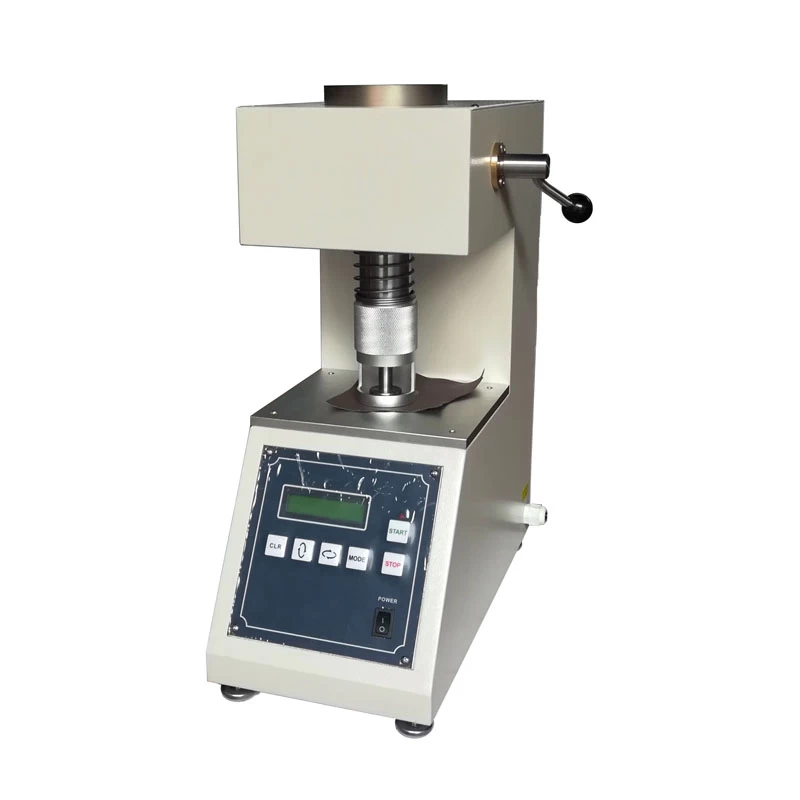

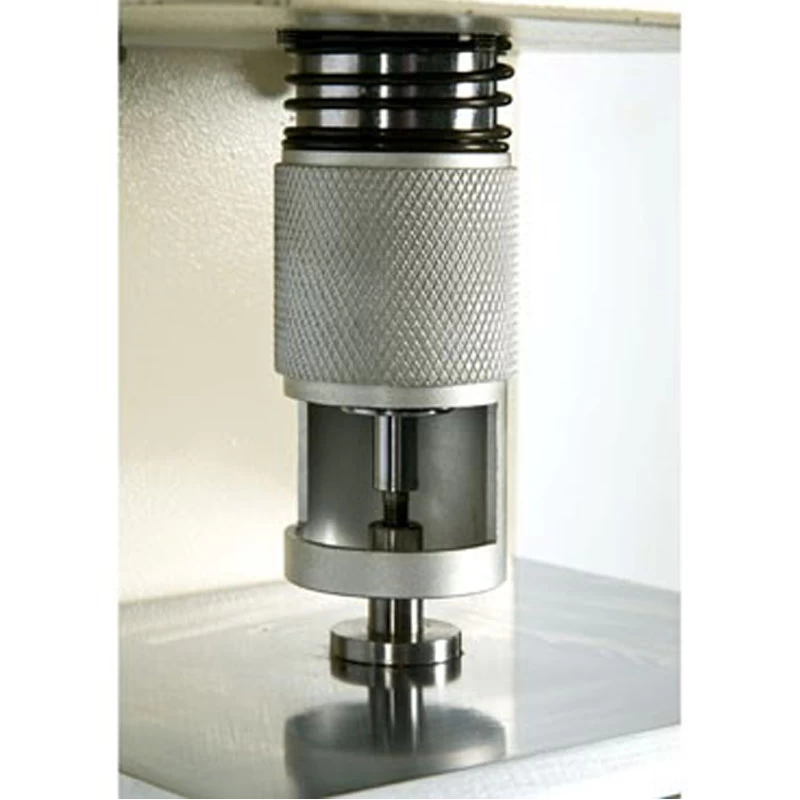

AF36-Circular Rub Fastness Tester
Application Of Circular Rub Fastness Tester
Circular Rub Fastness Tester is used for evaluate the material damage and surface color transfer after dry or wet abrasion of shoe’s upper material,leather, textile, plastic, and other colored material.
Standards Of Circular Rub Fastness Tester
SATRA PM8, BS EN 13516 Method B.
Key Specification Of Circular Rub Fastness Tester
|
Model
|
AF36 Circular
Rub Fastness Tester
|
|
Sample size
|
60×60 mm or Ø60mm
|
|
Rubbing speed
|
150±5 r.p.m.
|
|
Load
|
7.1±0.2N or 24.5±0.5N
|
|
Wool felt
|
Outer diameter 25±1mm,
Inner diameter 3±0.5mm
Density 190±20kg/m3
|
|
Aluminum plate
|
Ø50mm, thickness 12mm
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
30×45×47 cm
|
|
Weight
|
45kg
|
