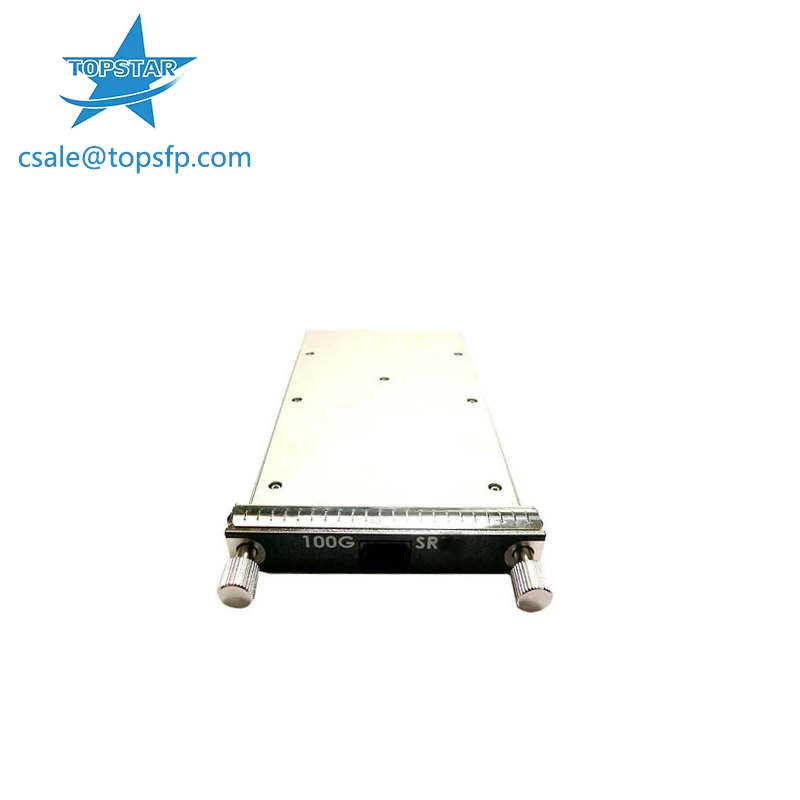

Cisco CFP CFP-100G-SR10 Compatible 100GBASE-SR10 850nm 150m 10-2787-02 Transceiver Module
Features
▪ Transmission data rate up to 11.2Gb/s per channel
▪ Compliant to IEEE 802.3ba specification for 100GBASE-SR10 links
▪ Compliant to CFP MSA Management Interface Specification, Draft 1.4
▪ OTU4 compatible
▪ 10 channels 850nm VCSEL array
▪ 10 channels PIN photo detector array
▪ OM3 Multimode Fiber cable of up to 300m and OM4 Multimode Fiber cable of up to 400m
▪ MDIO digital diagnostic and control capabilities.
▪ TX input and RX output CDR retiming
▪ Hot pluggable electrical interface
▪ Power class 1 (<8W max)
▪ Operating case temperature 0°C to +70°C
▪ 3.3V power supply
▪ RoHS 6 compliant (lead free)
