Classic Standard Covers Stainless Steel Shower Room Linear Shower Drain

Classic design covers stainless steel 304 shower room linear drain.

300mm-1500mm length availabe, flow capability 30L/min, siphon included and easily cleaned, 40mm outlet with adapter to 50mm.

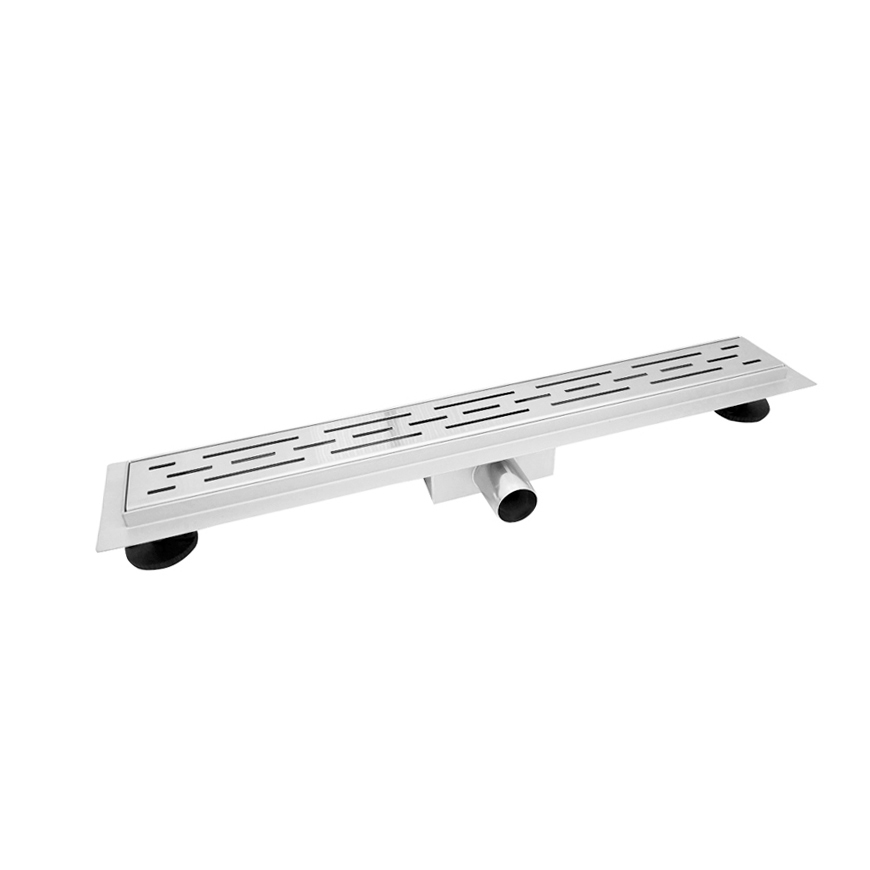

Classic Design Covers Stainless Steel 304 Shower Room Linear Shower Drain


Type: Stainless steel cover with horizontal outlet

Material: 304 stainless steel

Length: 300mm,400mm,500mm,600mm,700mm,800mm,900mm,1000mm,1100mm,1200mm,1300mm,1400mm,1500mm

Width: 70mm

Height:67mm

Edge: 20mm

Flow capability: 30L/min

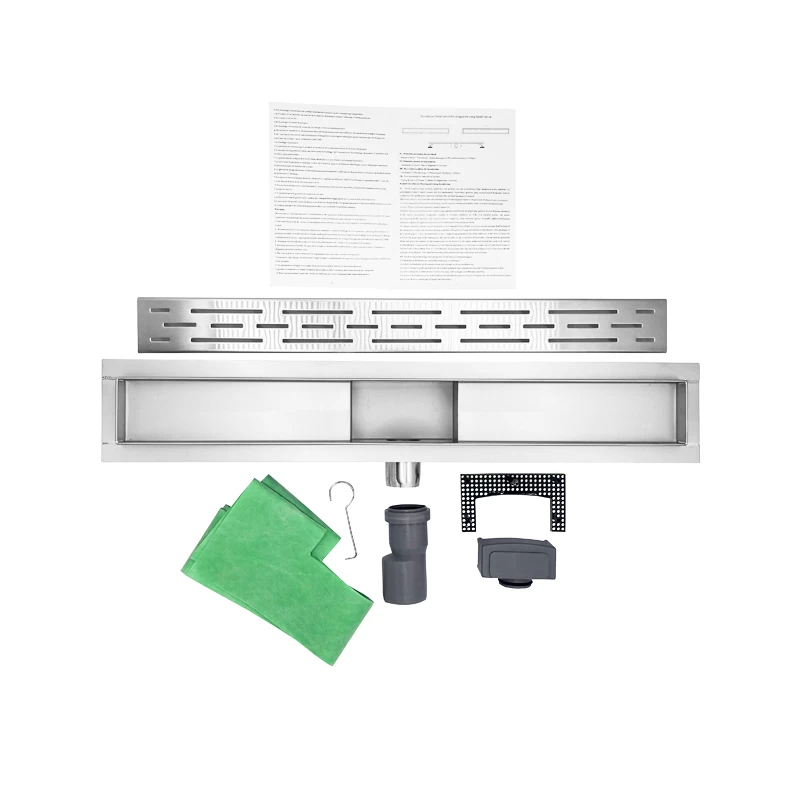

Siphon parts: Included

Hair trap: Included

Outlet: 40mm with 50mm adapter

Install height adjustable


The NEUNAS Classic designs covers floor drain, made by stainless steel 304 of shower room series has a modern design and barrier-free showering, Bubbles/Short Wave/Long Wave/Mix Lane/Cloud C, each one cover design have it own style to satify your request.

800mm_Mix_Lane_stainless_steel_shower_room_floor_linear_shower_drain_duschrinne-douchegoot-douchegoten_NEUNAS

Up to 30 litres of water per minute can be drained directly through the floor drain after using a shower without the need for a step.

After the covers install into the adapted frame, besides the difference design bring your differnt feelings, the different design gap can prove the water flow too.


The extremely flat design of the shower channel is suitable for extremely low heights. Since the anchoring feet are adjustable, you can also easily adjust the mounting height. The shower channel has a 40 mm drain and comes with a 50 mm adapter.

You can easily see the siphon and hair trap through the removable drain cover, which makes the shower trough and drain pipe easy to clean. In addition, a built-in integrated deodorizer prevents odors from penetrating.

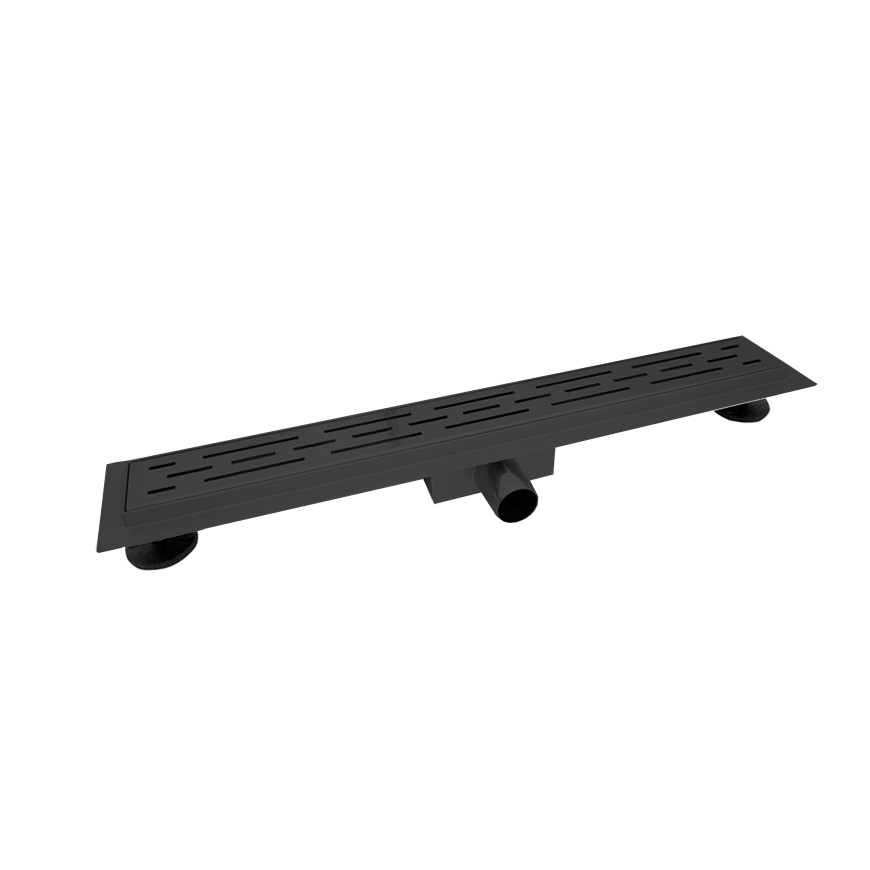

800mm_Mix_Lane_Matt_black_stainless_steel_shower_room_floor_linear_shower_drain_duschrinne-douchegoot-douchegoten_NEUNAS

Choose the length you want 300mm,400mm,500mm,600mm,700mm,800mm,900mm,1000mm,1100mm,1200mm,1300mm,1400mm,1500mm.


In our web you will find more products including high quality floor drains and premium floor drain caps of various lengths made of stainless steel or glass. Take a look and design a unique shower channel with your own taste!
