Overview
Computer Cables (Instrumentation/Control Signal Cables) are designed for low-level signal transmission in DCS/PLC systems, instrument loops, and data acquisition networks. They feature low capacitance, strong EMI/RFI immunity, and stable, low-noise performance over long distances. Constructions include pair/triple layouts, individual pair shielding (IPS), overall shielding (OS), or combined IPS+OS, with optional LSZH, flame-retardant, water-blocking, and armouring designs for diverse installation environments.
Typical pair counts: 1–61 pairs (or custom)
Conductor: Annealed copper, bare or tinned, solid or stranded
Insulation: PE/XLPE for low dielectric loss; PVC/EPR optional
Shielding: Aluminum/PET tape with drain wire, copper braid; IPS/OS selectable
Mechanical protection: Steel tape armour (STA) or steel wire armour (SWA) optional
Outer sheath: PVC, PE, or LSZH
Applications: DCS/PLC I/O, instrument signal wiring, building automation, industrial parks, utilities, oil & gas, chemical plants
Standards: IEC 60228, IEC 60332, IEC 60502-1 (relevant), IEC 60754/61034 (LSZH), BS 5308, GB/T 9330, GB/T 19666, UL/CSA on request
Key Features
capacitance and low attenuation for accurate, long-distance signal transmission
High EMI/RFI immunity with individual pair and overall shielding options to minimize crosstalk and noise
Optional LSZH and flame-retardant designs to meet stringent fire-safety requirements
Flexible structures for various installations: trays, conduits, ducts, cable ladders, control rooms, and outdoor runs (UV/armour options)
Customizable constructions: pair count, AWG/mm², color codes, drain wires, water-blocking, and temperature range

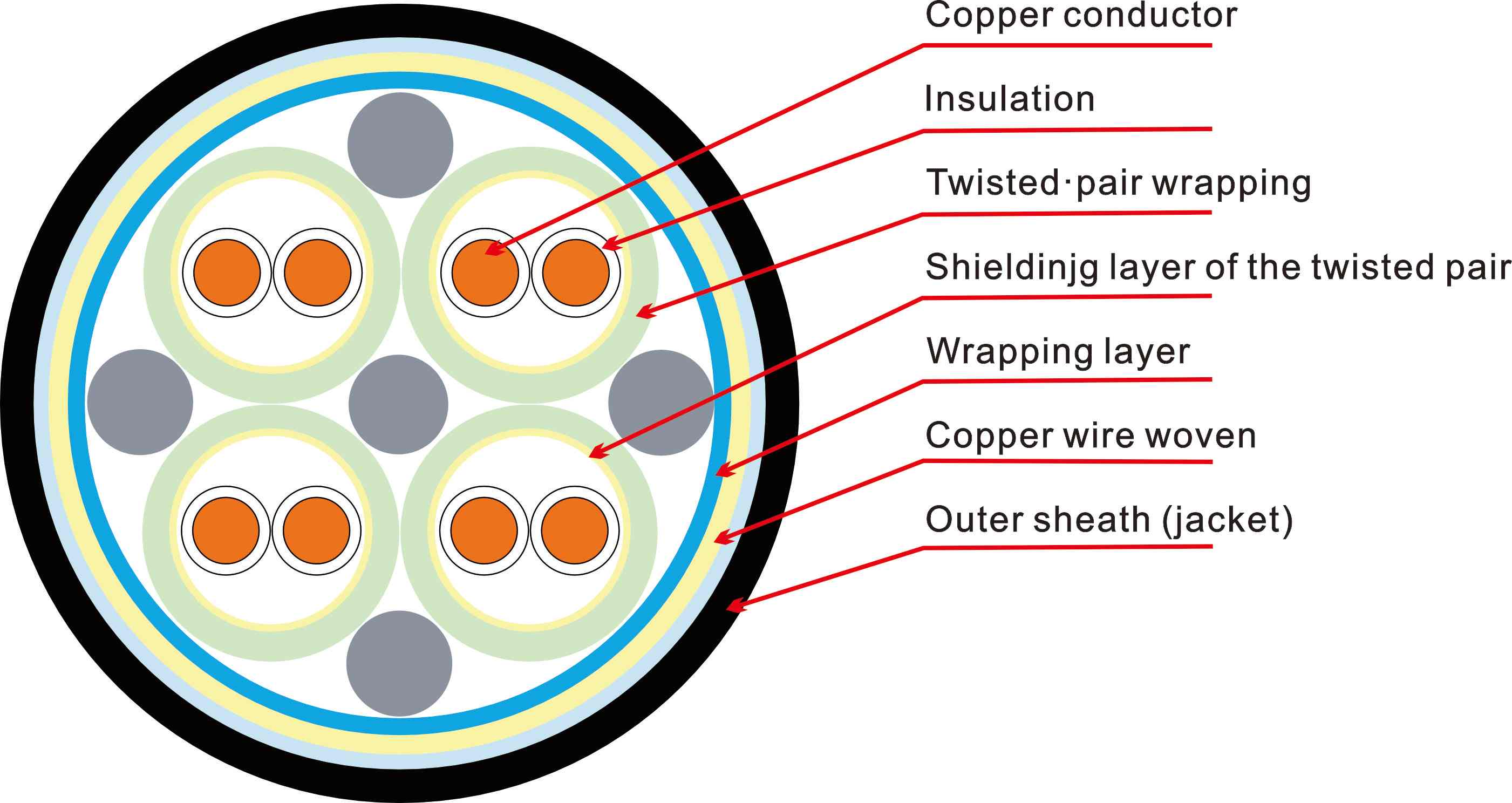

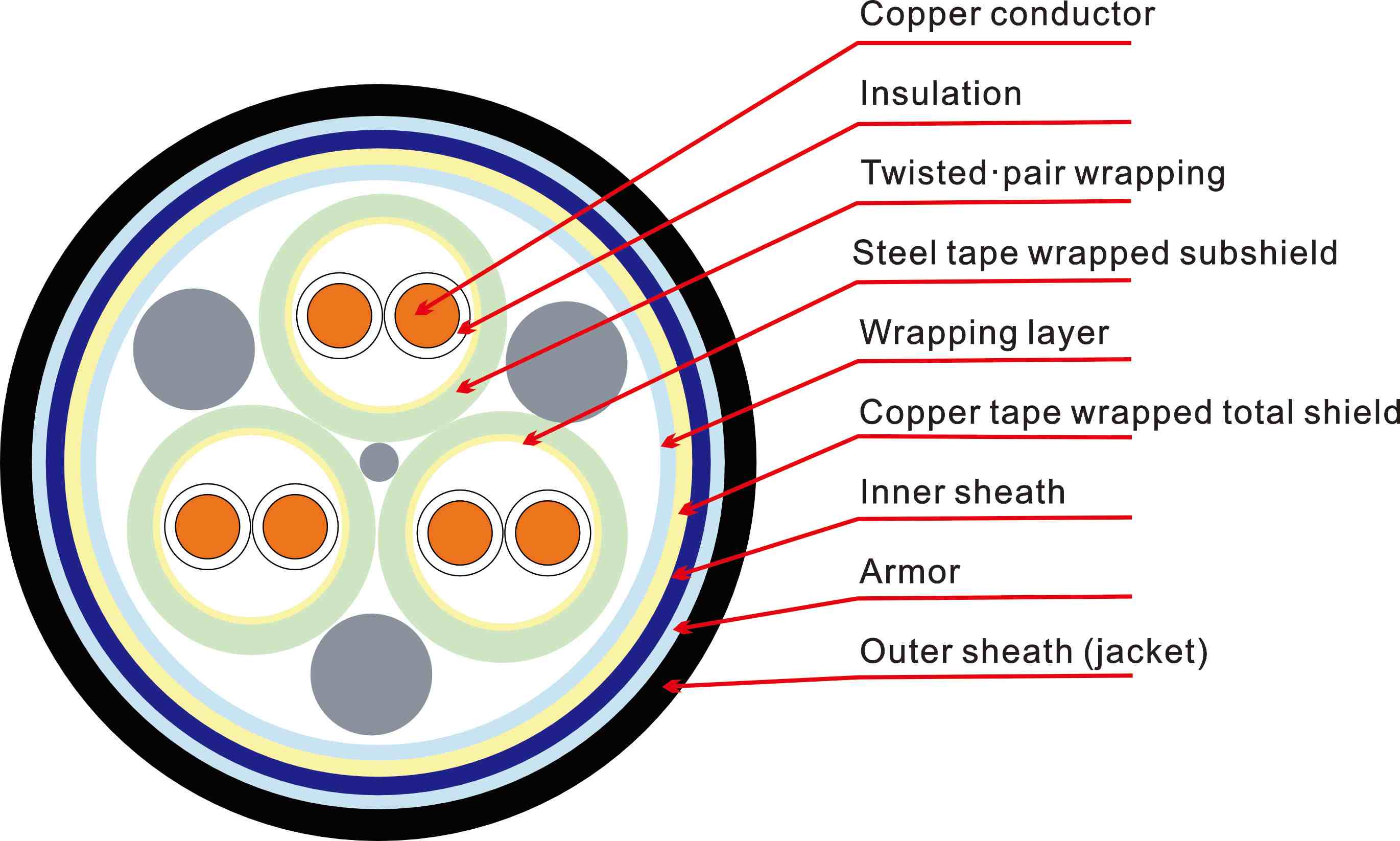

Layered from inside to outside

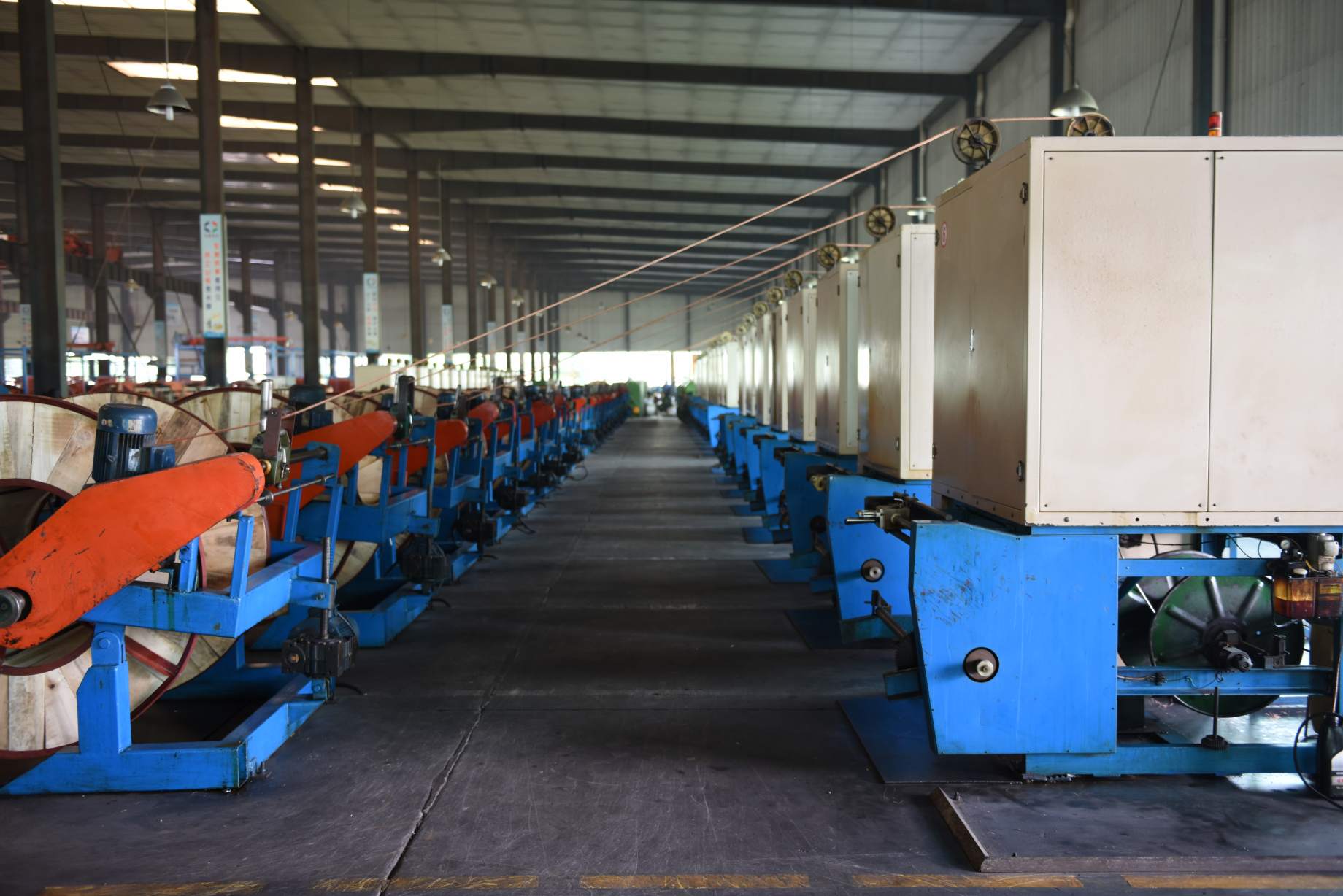

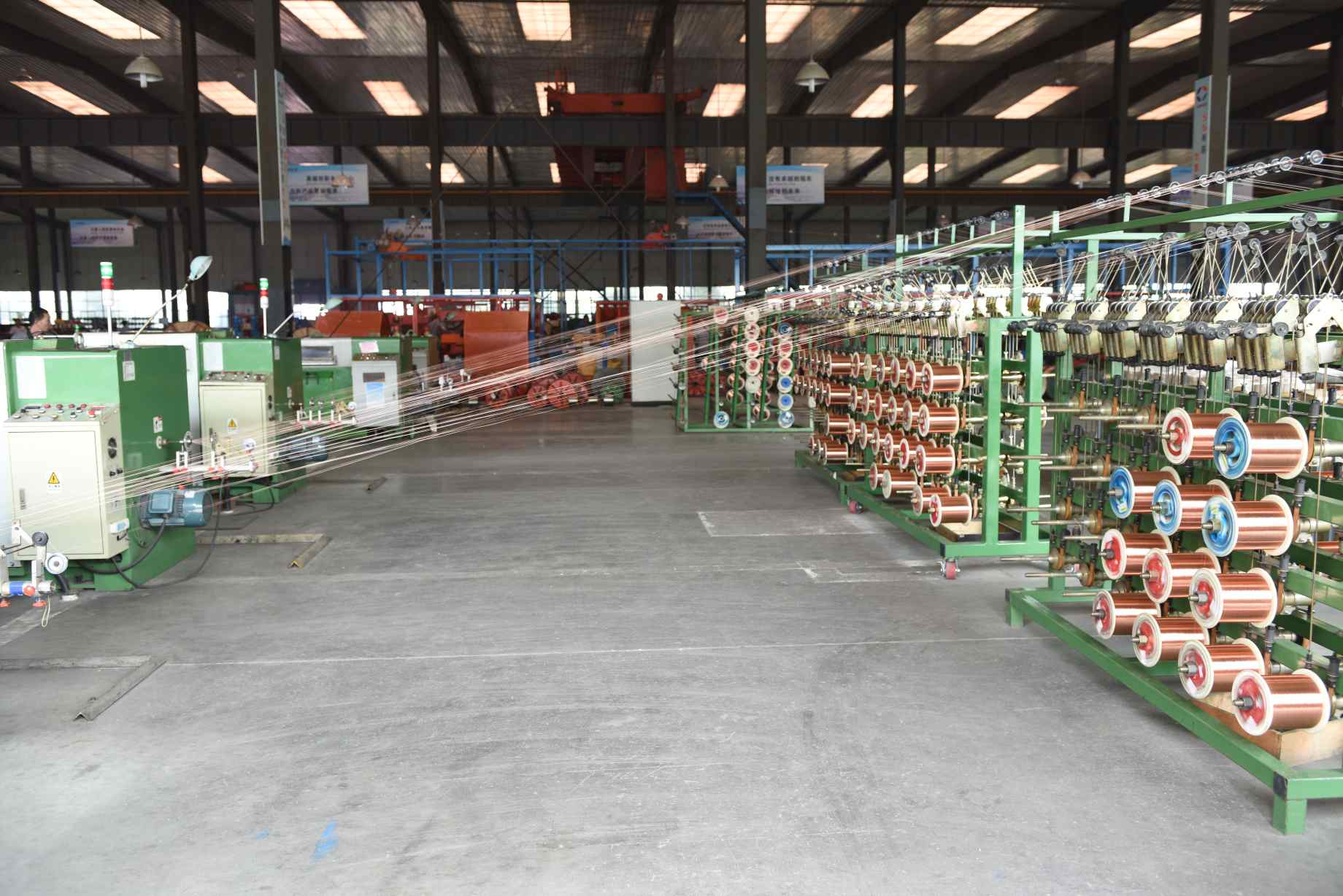

Factory photos
If you need technical support, please feel free to contact us.
