A Braid Shielded Cable is a woven mesh of bare or tinned copper wires. The braid provides a low-resistance
path to ground and is much easier to termination by crimping or soldering when attaching a
connector. But braided shields do not provide 100% coverage.

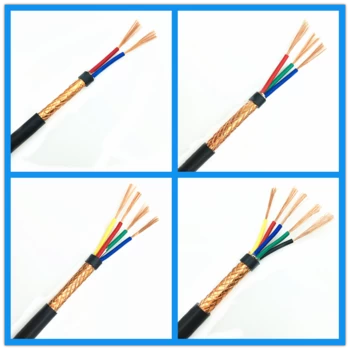

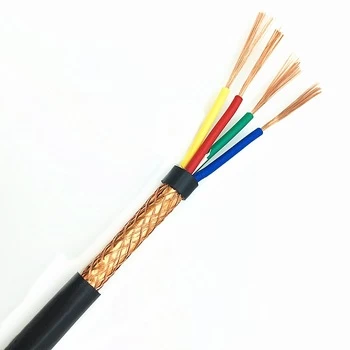

Copper Stranded Core 3*2.5mm Braid Screen Cable
Application:
Instrumentation cable can be used in interconnection of process control, communication & panel control systems like oil exploration, cement, paper, steel, power generation and others.
Specifications:
-
Conductors: Class 5 flexible plain copper
-
Insulation: PVC / XLPE
-
Individual shield: Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire for each pair or triad .
-
Overall shield: Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire
-
Sheath: PVC
