Energy Saving 365nm 385nm 395nm 405nm UV LED Curing Systems for Coating

High Efficiency UV LED Curing System has the size of 365nm, 385nm, 395nm, 405nm. The produce can greatly save energy.




If you asked what products I recommend to you, Energy Saving UV LED Curing Systems Curing UV Coating is a best choice. Professional LED UV Curing Equipment for UV ink, belongs to Rec Area UV Led Curing, having the size of 365nm, 385nm, 395nm, 405nm. The produce can greatly save energy.


Product Parameters of Powerful LED UV Curing Machine Cure UV Coating :

Type

UV LED



Model Number

UV-LED CURING S264-100x100

Chip Material

GaAs

Emitting Color

Ultraviolet

Luminous Intensity

8W/CM2

Luminous Flux(lm)

30-40lm

Optical Attenuation(%)

0.1

Power

8W/CM2

Power Dissipation

700

Viewing Angle(°)

120

Color Rendering Index(Ra)

0.1

Color Temperature

365 - 405 nm

Operating Temperature(℃)

-10 - 50

Storage Temperature(℃)

-10 - 50

Place of Origin

Guangdong, China (Mainland)

Brand Name

UV-LED CURING


Energy Saving UV LED Curing Systems for Coating

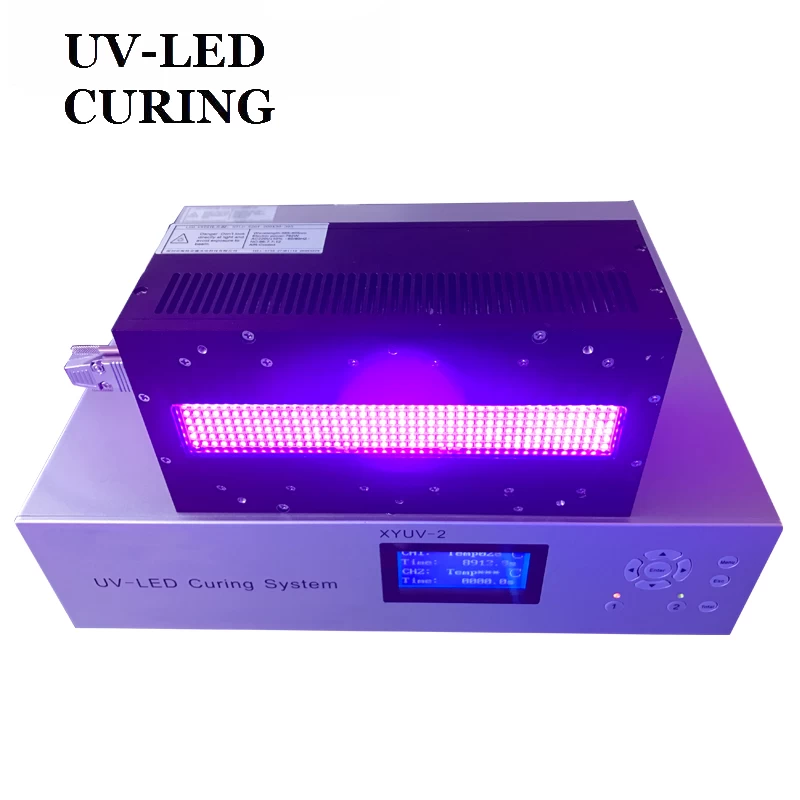

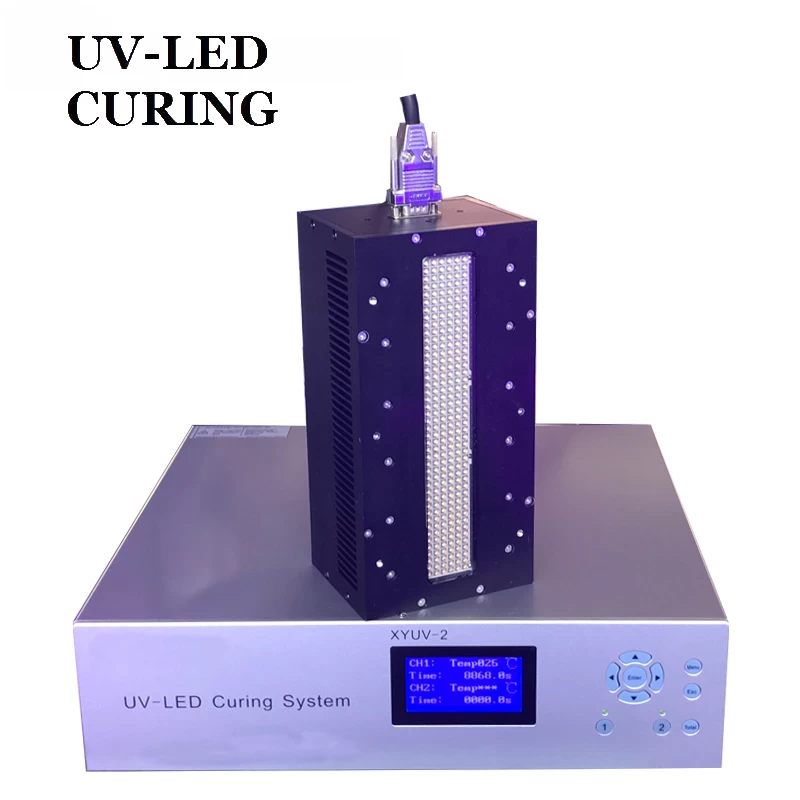

Technical Data of Cool UV Light Source UV Light Curing UV Adhesive Controller

Type

XYUV - 2

Channel

Two

The size of controller

L400*W360*H110mm

Terminal I/O

Input

Pedal switch & serial RS-232 communication signals

Output

Serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Key Panel

Ambient temperature and humidity

Ambient temperature: -10℃—50℃  Relative humidity: 25%—85%RH

Dimming/Exposure control

Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)

Setting operation

Using the operating switch is set, Power key parameter switch, RS-232

External Control

External input

Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch

External output

REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

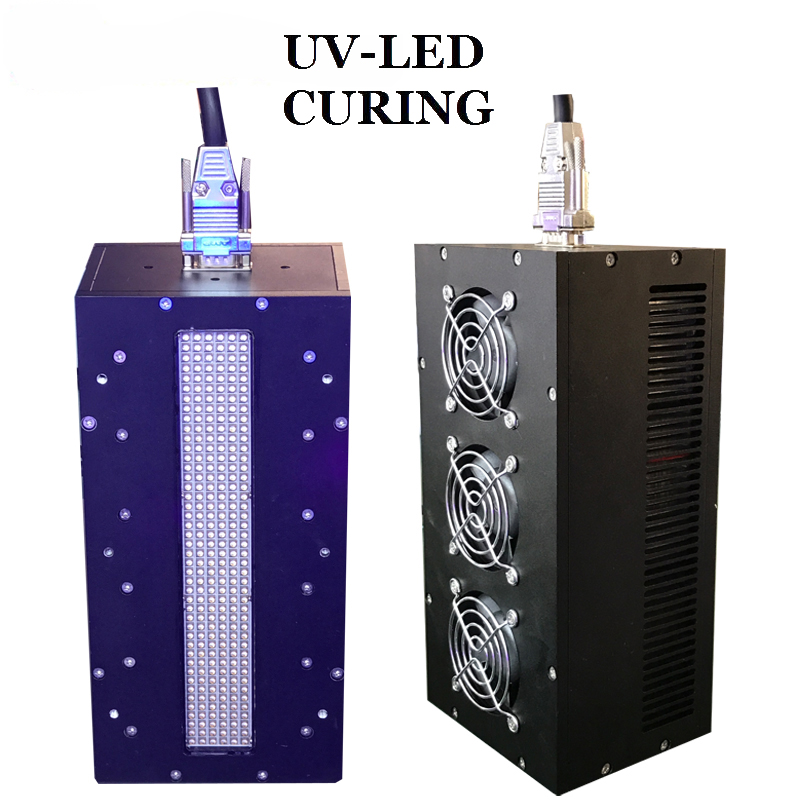

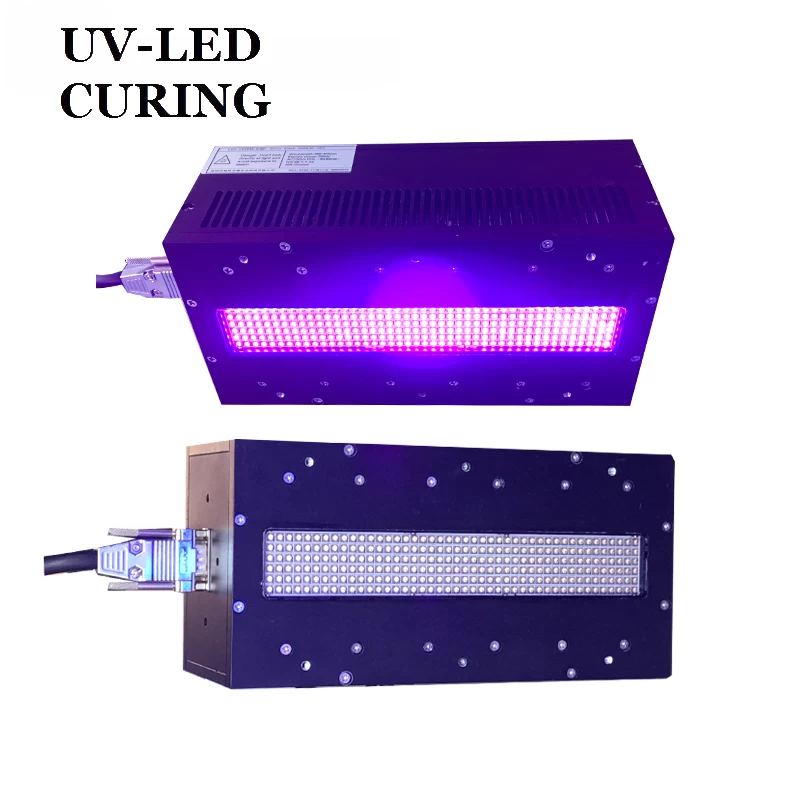

Irradiation Head Specification of Energy Saving 395nm UV Curing Lamps for Label Printing :

Model

UV-LED CURING S264-200X30-395

Setting Specification

700mA  Constant Current

Electronic Power

800W

Electric Power

Water Cooling

Control

UV-4Controller, Channel Alone Control

Curing Area

Length 20mm; Width:600mm

Irradiation Distance

10-15mm



UV LED Curing Head

Wavelength

395nm

Peak Irradiance

11W/cm2

Uniformity

±5~8%

Grade

No.1,3B Product
