Customized UV Curing Machine Desktop UV Dryer Machine for UV Curing

Desktop LED UV Dryer Machine for uv curing. PCB/PCBA Conformal Coating curing. SMT component protection and reinforcement. Medical instrument UV glue curing.



Desktop LED UV Dryer Machine for curing PCB/PCBA Conformal Coating, SMT component protection and reinforcement, Medical instrument, UV glue curing.


Describe of  Desktop LED UV Curing Machine :

Long life span

25000-30000H

Energy saving

save 80% electrical than Mercury lamp

Environment friendly

NO Mercury. NO Ozone.NO warm-up time.Low temperature

UV output adjustment

From 1%-100%

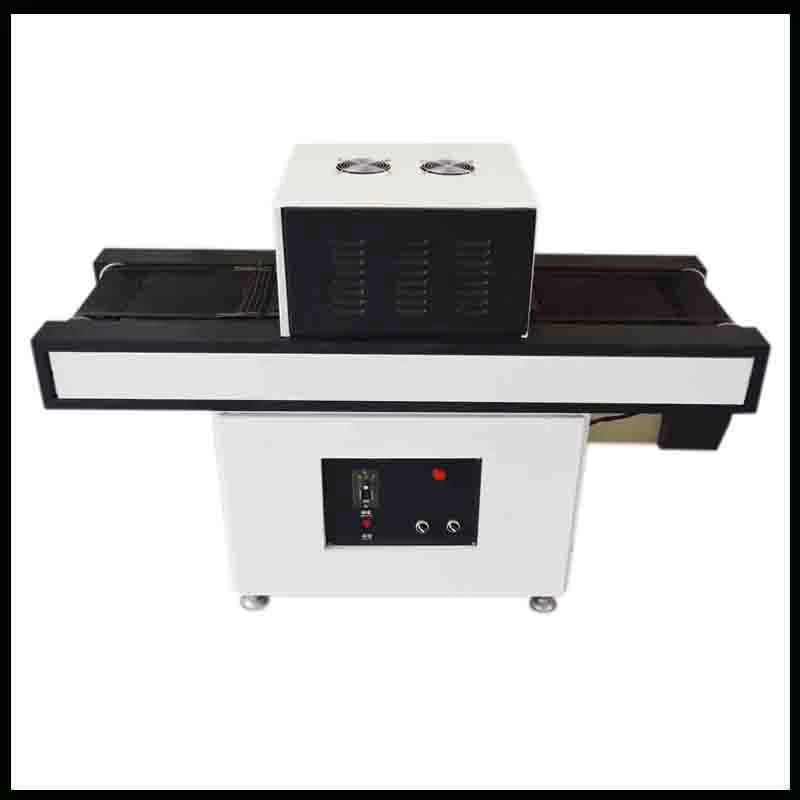

LED UV Dryer Machine

Customized Size UV Curing Machine


Technical Data of Desktop UV Curing Machine Irradiation Light Head:

Wavelength(±5nm)

365nm/385nm/395nm/405nm

Curing Area

300*200mm/Other Sized Available

Electronic Power

1100w

Input voltage

220VAC 50Hz / 60Hz

Cooling method

Air cooling

Life

>10000H

Conveyor Speed

100-400mm Adjustable

Irradiation distance

10-100mm adjustable

Optic power

800mw/cm2 (10mm irradiation distance)

Recommend Irradiation Distance

10-100mm


Control System Features of Desktop UV Dryer Machine :

1: Panel display, touch operation, real-time monitoring of the head of the working state

2: Intensity adjustable from 0-100%

3: Temperature monitoring

4: Infrared sensor control, work mode selection

5: Whole machine size: L1200*W820*1100mm


UV LED Curing Portable MachineUV Dryer Desktop MachineUV LED Medical Instrument

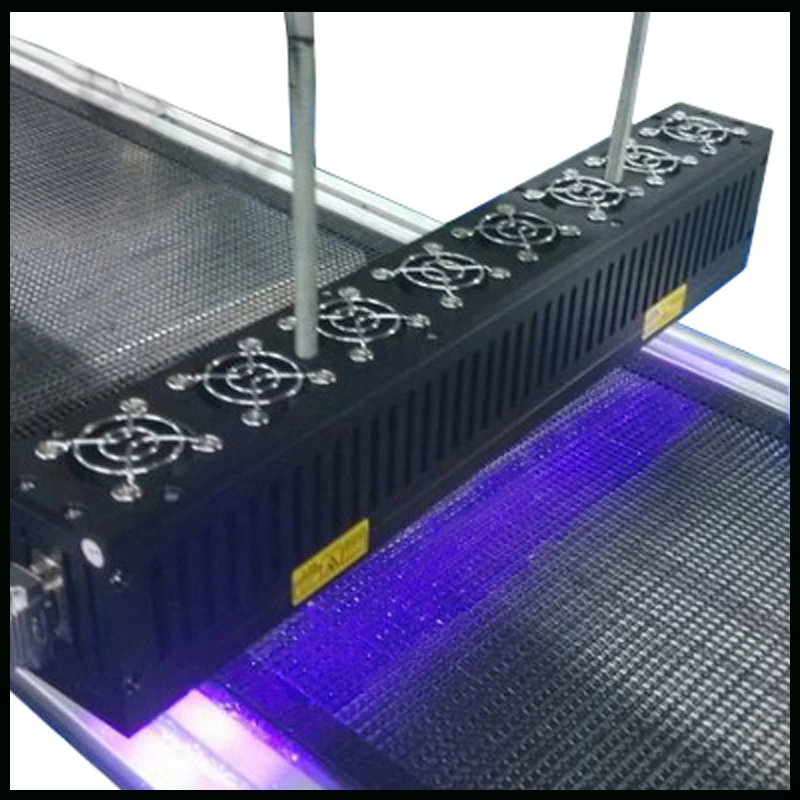

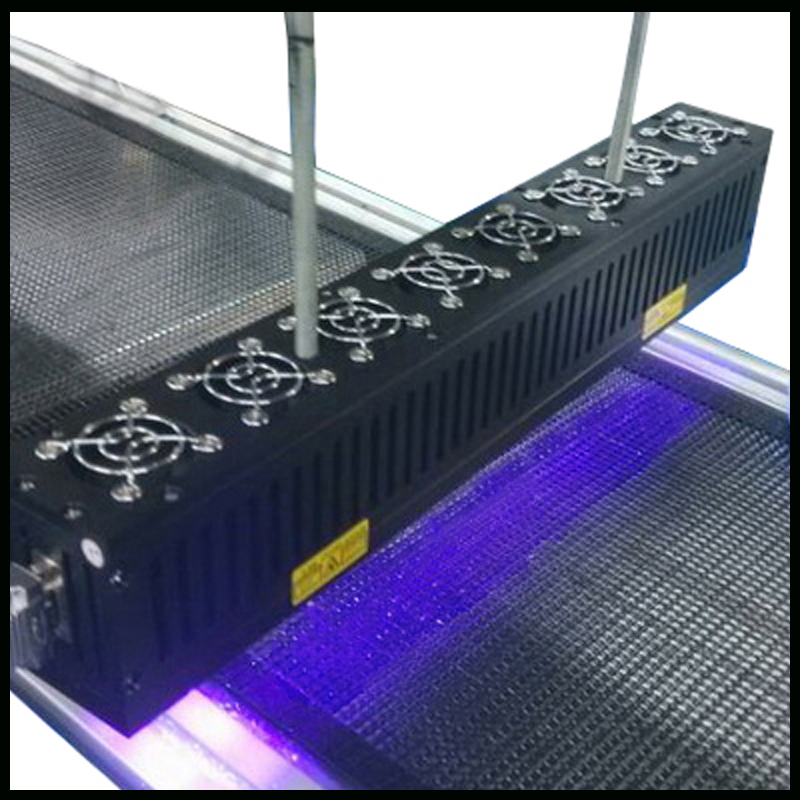

UV LED Curing Machine Description

size of the LED UV curing light

180mmx290mm

conveyor belt adjustable distance

10-50mm

power density



1300mw / cm² at 365nm,2000mw/cm² at 395nm

intensity adjustable

1% -100%

Reflector

aluminum reflector built-in import reflective aluminum reflector, high

efficiency, long life

Belt Width

300mm

Conveyor Material

Teflon mesh belt or stainless steel mesh belt for choice

Conveyor speed

1-10 m stepless adjustable

LED Lamp beads

without warm-up, and immediately began to

solidify work

Drum

knurled surface to ensure smooth transportation

Total Cooling

air-cooled

Machine material

cold rolled sheet table machine spray

Appearance

plastic spraying computer white and black and gray

Machine Specification

1500L * 750W * 800Hmm

Power Connection

220VAC 50HZ




If you have conveyor, UV LED Curing Light can be offered for you. The size of the UV LED Light is optional.
