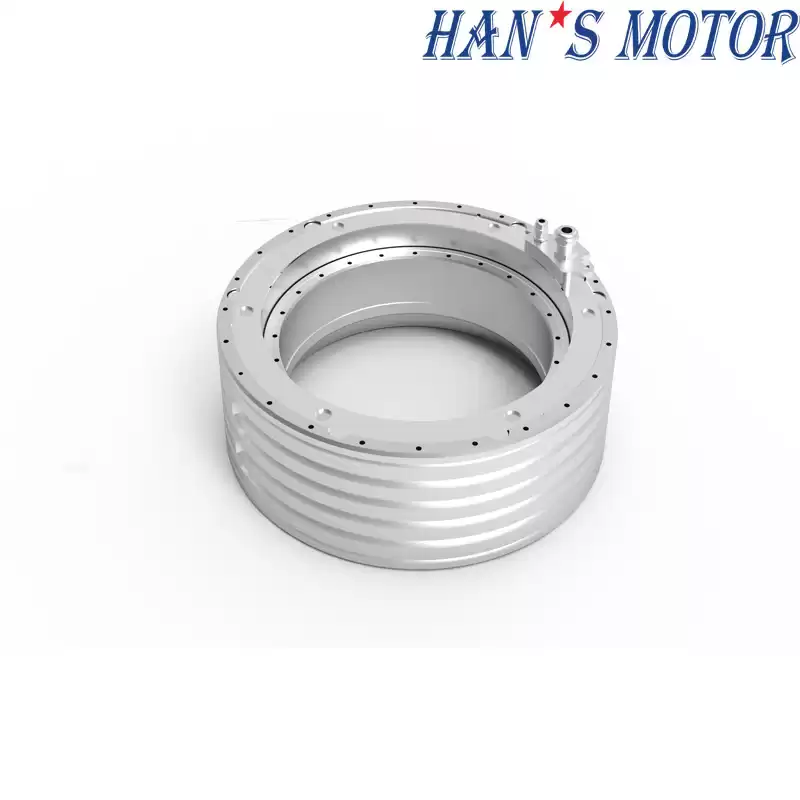

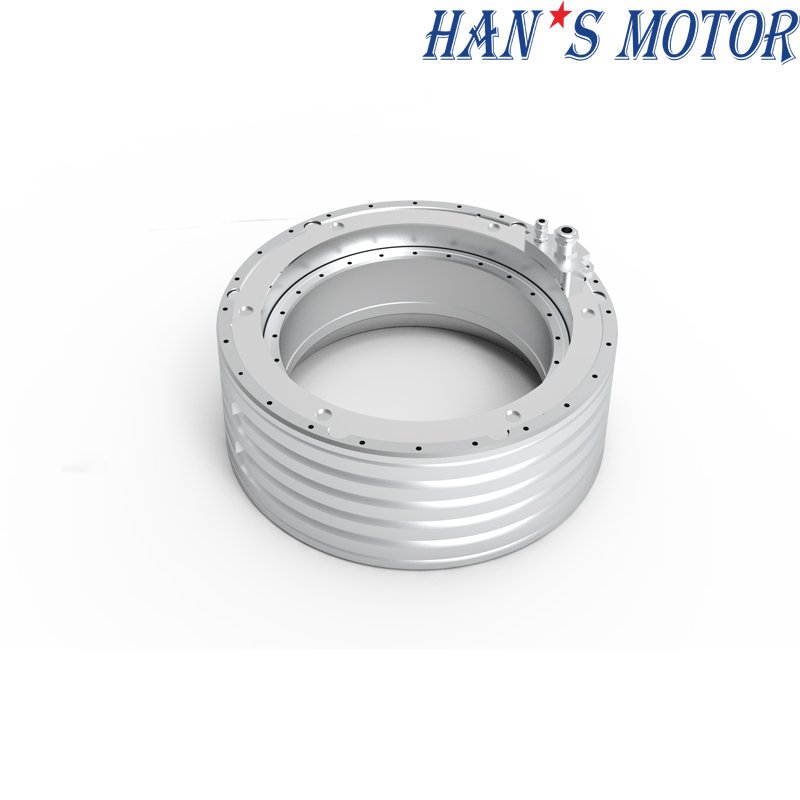

Products Name: High Torque Frameless Inner Rotor Torque Motor BI
Series
Product Specifications
|
Torque Motor BI5
Series Specification
|
|
Motor
Model No.：BI5-xxx-P-x-0-W
|
|
|
050-P-A-0
|
080-P-B-0
|
120-P-B-0
|
140-P-A-0
|
|
Performance
Parameters
|
Symbol
|
Unit
|
|
|
|
|
|
Pole
pairs
|
p
|
—
|
33
|
33
|
33
|
33
|
|
Max.Working
Bus Voltage
|
Vdc
|
V
|
540
|
600
|
600
|
600
|
|
Peak
torque
|
Tp
|
Nm
|
1000.0
|
1453.2
|
2156.8
|
2440.0
|
|
Continuous
torque (Water cooling)
|
Tcw
|
Nm
|
546.0
|
844.2
|
1226.1
|
1365.0
|
|
Continuous
torque (Natural cooling)
|
Tc
|
Nm
|
234.0
|
365.4
|
549.0
|
585.0
|
|
Peak
Current
|
Ip
|
Arms
|
50
|
173
|
165
|
48.8
|
|
Continuous current
(Water cooling)
|
Icw
|
Arms
|
21
|
67
|
67
|
21
|
|
Continuous current
((Natural cooling)
|
Ic
|
Arms
|
9
|
29
|
30
|
9
|
|
Torque
Constant
|
Kt
|
Nm/Arms
|
26.0
|
12.6
|
18.3
|
65.0
|
|
Back EMF
Constant
|
Ke
|
Vrms/rad/s
|
8.7
|
4.2
|
6.1
|
21.7
|
|
Back EMF
Constant
|
Ke
|
Vrms/(1000r/min)
|
1572.0
|
761.8
|
1106.4
|
3930.0
|
|
Line
Resistance
|
R
|
Ω
|
3.2
|
0.5
|
0.6
|
6.8
|
|
Line
Inductance
|
L
|
mH
|
14.0
|
1.2
|
2.6
|
38.0
|
|
Max.speed,Tcw
|
Nmax,Tcw
|
rpm
|
130
|
450
|
300
|
56
|
|
Max.speed,Tc
|
Nmax,Tc
|
rpm
|
190
|
500
|
340
|
85
|
|
Max.speed,Tp
|
Nmax,Tp
|
rpm
|
10
|
330
|
180
|
35
|
|
Max.speed,0
|
Nmax
|
rpm
|
230
|
535
|
370
|
105
|
|
Power
consumption, output Tcw
|
Plw
|
W
|
5557.0
|
4242.1
|
5656.1
|
6483.0
|
|
Power
consumption, output Tc
|
Plc
|
W
|
1021.0
|
794.7
|
1134.0
|
1191.0
|
|
Motor
constant
|
Km
|
Nm/√W
|
10.0
|
13.0
|
16.3
|
17.0
|
|
Cooling
water flow
|
dV/dt
|
L/min
|
6.8
|
7.5
|
9.5
|
10.0
|
|
Cooling
water temperature difference setting
|
△θ
|
k
|
5
|
5
|
5
|
5
|
|
Rated
winding temperature
|
θ
|
℃
|
130
|
130
|
130
|
130
|
|
Motor
Mass
|
Ms
|
Kg
|
25.5
|
34.0
|
47.0
|
60.0
|
|
Rotor
Mass
|
Mr
|
Kg
|
7.5
|
10.5
|
15.5
|
17.8
|
|
Rotor
Moment of Inertia
|
Jm
|
Kg*m2
|
0.1420
|
0.2020
|
0.3020
|
0.3505
|
|
Cable
length (Can be extended optional)
|
L
|
M
|
3.0
|
3.0
|
3.0
|
6.0
|
|
Cable
Minimum bending radius
|
R
|
mm
|
102.0
|
102.0
|
102.0
|
102.0
|

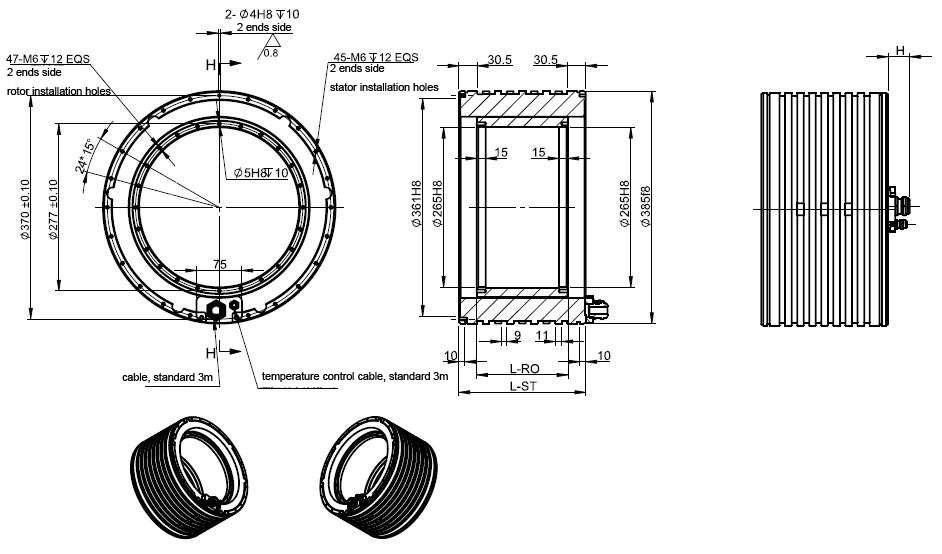

Dimension
|
Model
|
Center Hole(mm)
|
Outer Diameter
|
Height/mm
|
Spec.
|
Continuous torque/Nm
|
Peak torque/Nm
|
|
BI5 (water cooling)
|
265
|
385
|
130
|
BI4-010
|
546
|
1000
|
|
160
|
BI4-015
|
844
|
1453
|
|
210
|
BI4-020
|
1226
|
2157
|
|
235
|
BI4-030
|
1365
|
2440
|
Characteristics:
• Low-noise, and insulation of high temperature
• High-torque
• CE and EMC quality certification
Running
smoothly, high quality and excellent performance
FAQ
1) Are you
manufacturer or trading company?
Han’s Motor is a global supplier in direct drive
technology, ranging from linear motors, torque motors, servo drives, robots to
customized motors and other industrial automation solutions. Founded in
Shenzhen, China in 2005
2) What’s your
main products?

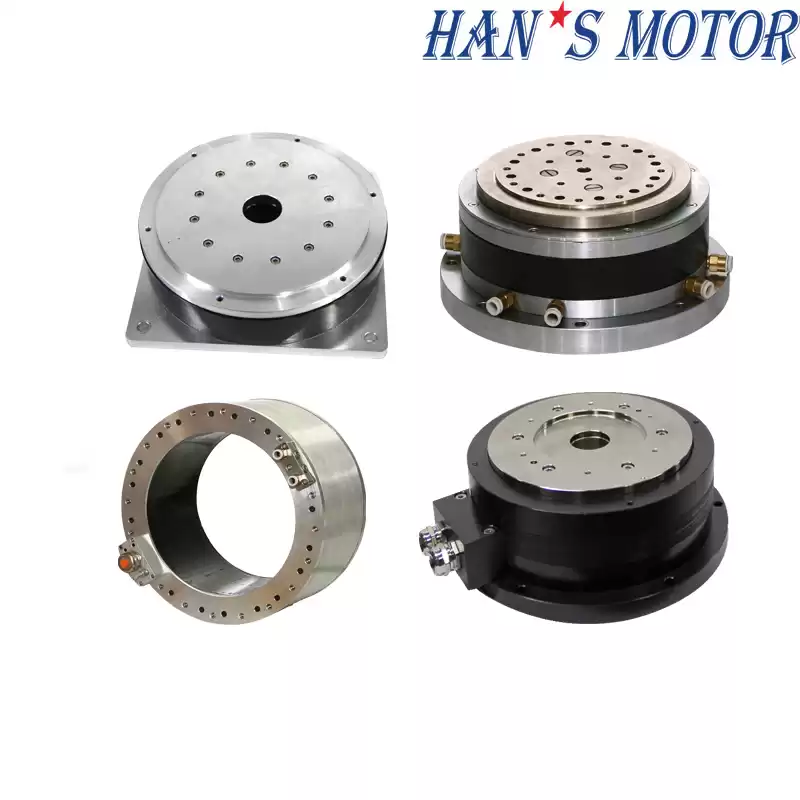

torque motor, linear motor, arc motor, voice coil motor,
motion platform, servo module
3) What's the
lead time?
According to the order quantity, 10 days
for the small order and 20 days for the bulk order.
4) How can we know the product quality?
Please order sample for quality test after
we confirmed the design of products.
5) What I need to provide if I want to make a customized order?
Please kindly tell us the voltages, speed, torque and overall
dimension.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL
ect.)
Leading time: According to the order quantity, 10
days for the small order and 20 days for the bulk order
