Spec. table of Delta Ac Servo Motor
|
Model
|
ECMA-C20602
|

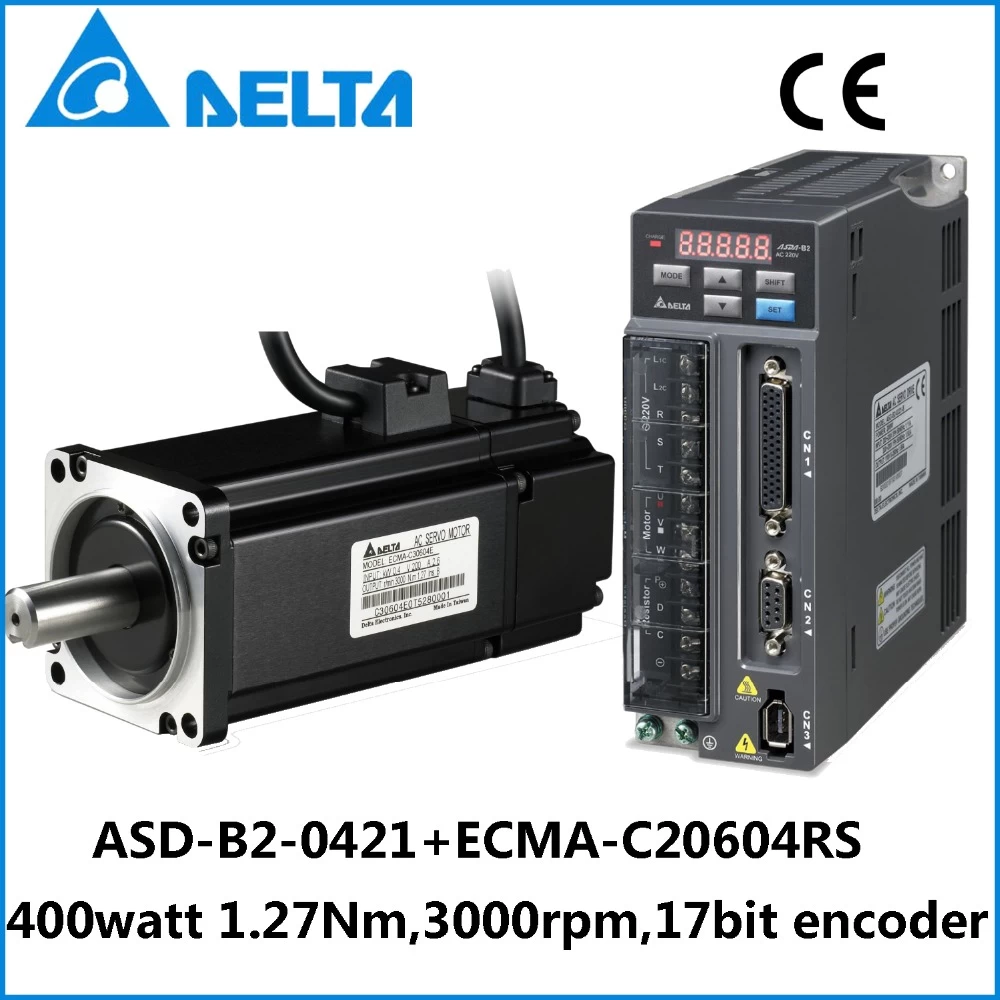

ECMA-C20604
|
ECMA-C20807
|
|
Rated Power
|
200w
|
400w
|
750w
|
|
Rated Torque
|
0.64Nm
|
1.27Nm
|
2.39Nm
|
|
Max. Torque
|
1.92Nm
|
3.82Nm
|
7.16Nm
|
|
Rated speed
|
3000rpm
|
|
Max. Speed
|
5000rpm
|
|
Rated current
|
1.55A
|
2.6A
|
6.1A
|
|
Inertia
|
0.177 X10^-4kgm^2
|
0.68 X10^-4kgm^2
|
1.13 X10^-4kgm^2
|
|
Mechnical constant
|
0.8ms
|
0.49ms
|
0.47ms
|
|
Weight
|
1.2kg
|
2.1kg
|
3.0kg
|
