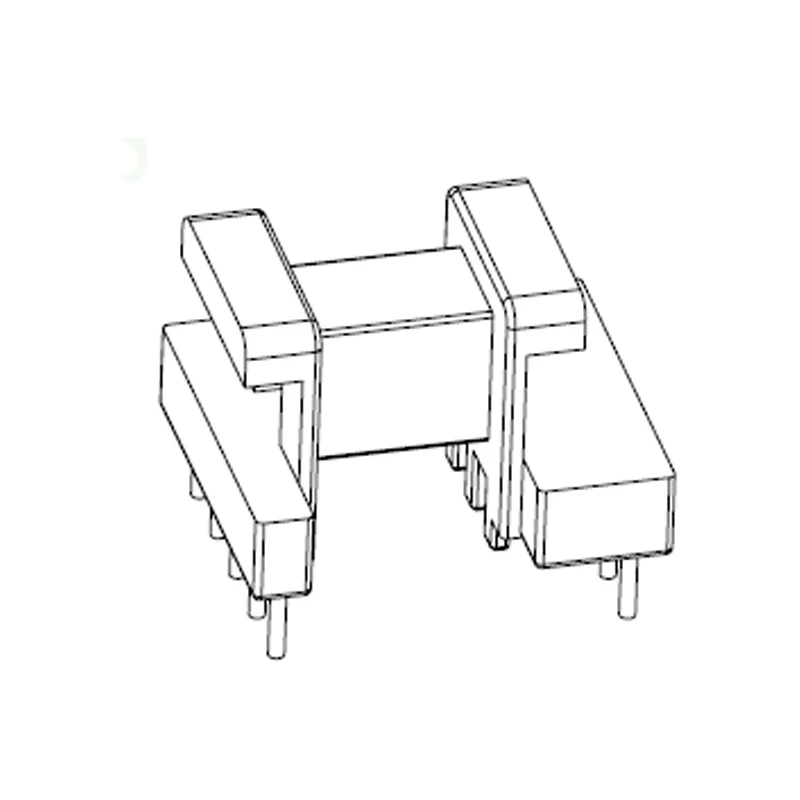

Dip Bobbin EE16 Horizontal Transformer Bobbin With 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0

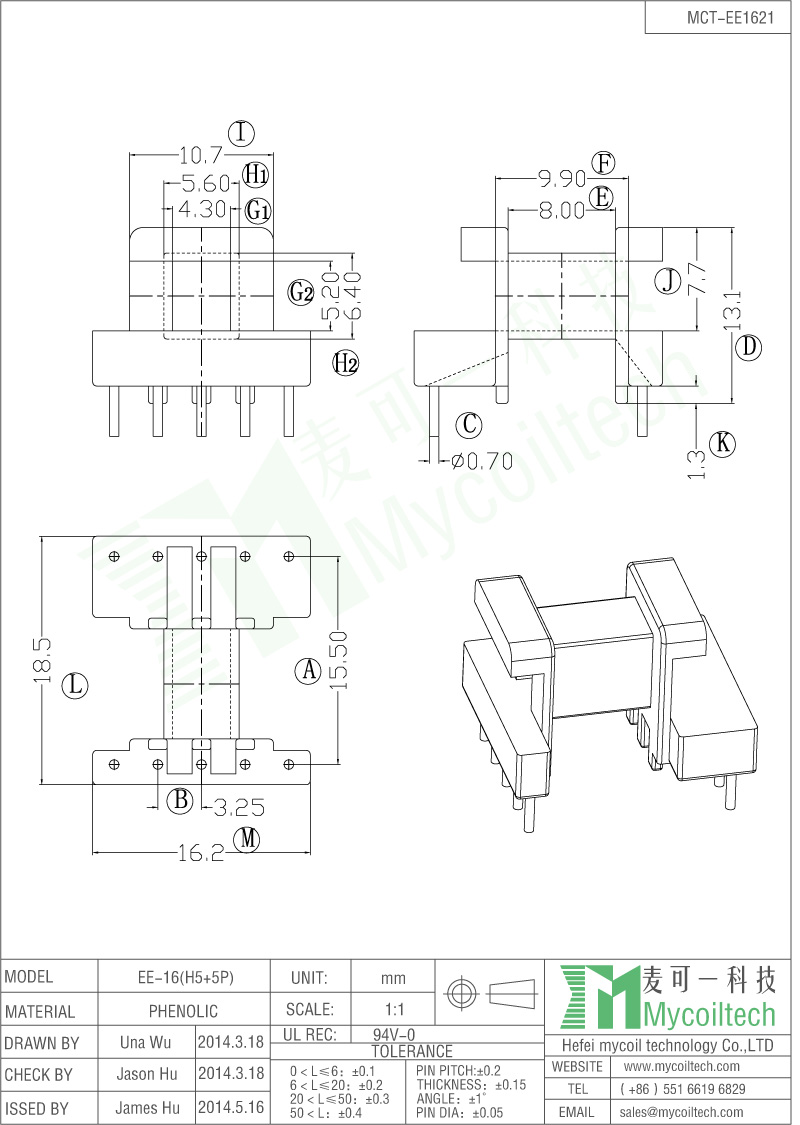

Pin pitch=3.25mm, Parallel Distance=15.5mm

Size=18.5mmX16.2mmX13.1mm




EE16 transformer bobbin,horizontal Bobbin ,Phenolic material ,we located in HeFei where is near to ShangHai ,our company covers land area of 3000 sqm.



Quick Details

Place of Origin:Hefei,China(Mainland)



Custom Made: Available



Material:Phenolic

Part Number: MCT-EE1621(H5+5P)



Brand Name: MCT



Color: black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name:Dip Bobbin EE16 Horizontal Transformer Bobbin With 5+5 Pins.

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air ,By ship ,etc.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Miss Qian Gao

Email: qian.gao@mycoiltech.com

Skype: live:qian.gao_5



Product Specification

Dip Bobbin EE16 Horizontal Transformer Bobbin With 5+5 Pins.
