Double Slots ED25.8 High Frequency Transformer Bobbin

Double slots ED25.8 coil bobbin. Parallel Distance=20.48mm. Pin pitch=5mm. Bobbin Size=26mmX20mmX12.95mm. PA66(FR50) material bobbin. DIP type coil former. Accept make bobbin tooling.



Are you  looking for best quality ED25.8 dip coil formerdouble slots vertical ED25.8 transformer bobbin?  We can design for you and send samples in 5 days, any inquiries, welcome to contact us.


Quick Details

Part No: MCT-ED25.8-01(V4+4P2F)

Brand Name: MCT

Material: PA66

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: Double Slots ED25.8 High Frequency Transformer Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

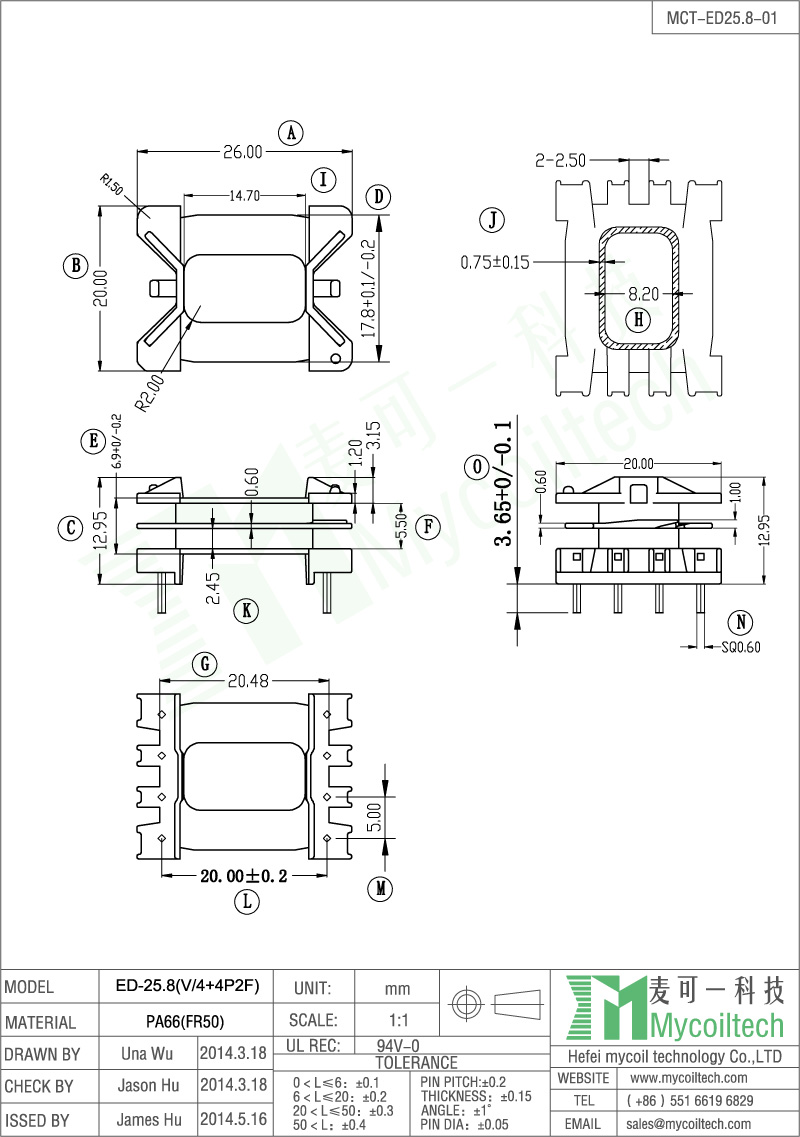

Product Specification

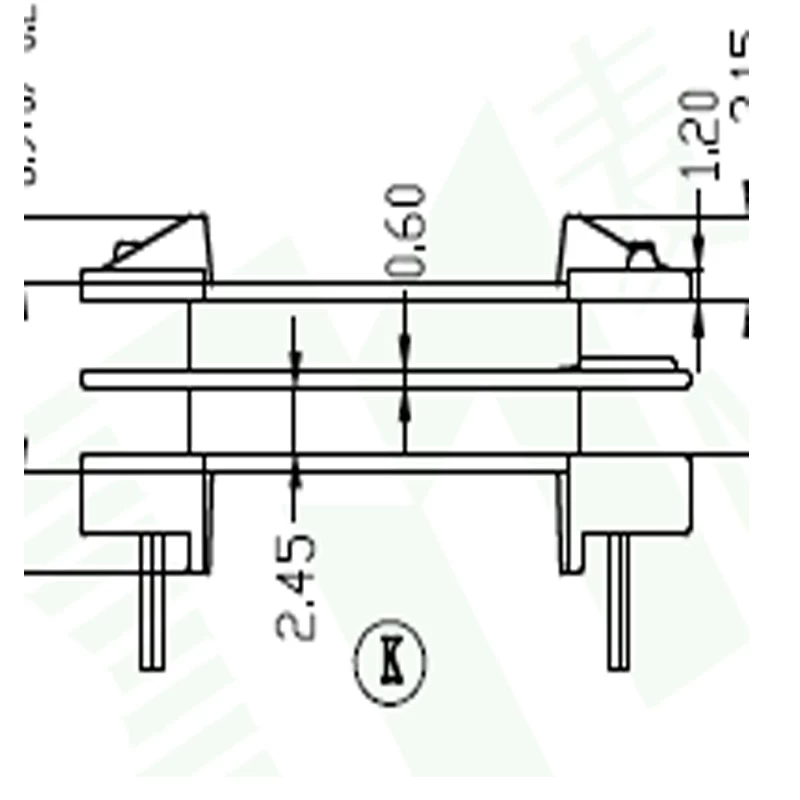

ED25.8 two slots vertical coil former
