DR1012 Series DIP Drum Core Inductor with 4.7uH 100uH 820uH 1000uH

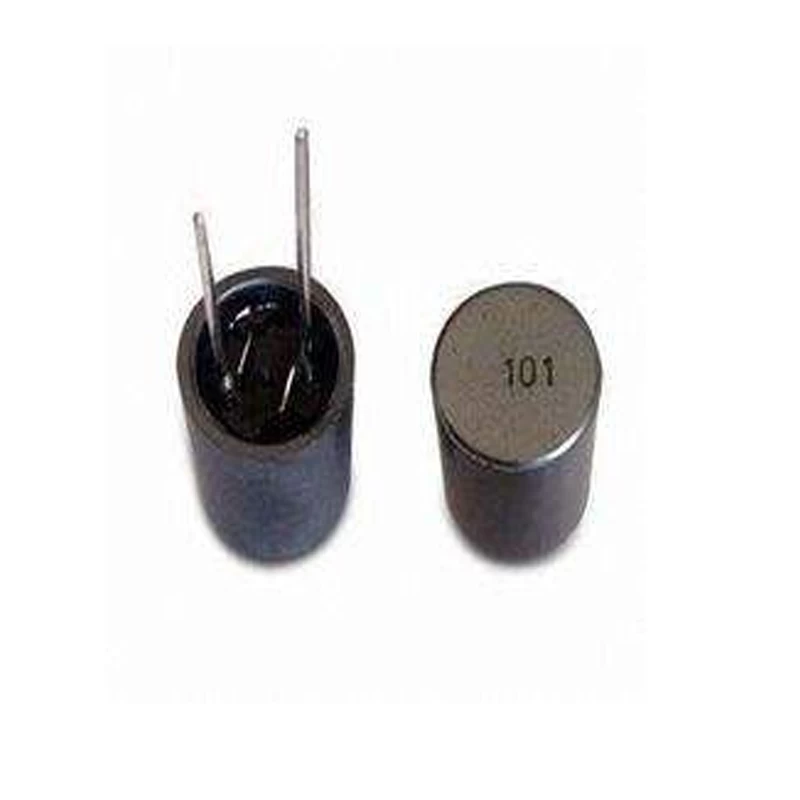

Radial leaded DIP drum core inductor DR1012 series. Drum core inductor mainly used for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.



We skilled at manufacturing kinds of inductors, suah as DIP drum core inductors, air coil inductors, high current inductors, toroidal inductors, common mode choke inductors, etc. We have experienced sales team and engineers, we can design inductors according to customer's need. If you are looking for customized drum core filter coil inductors DR1012 DR0608 DR1419 DR0808 series, welcome to contact us.


Quick Details

Part No: DIP Drum Core Inductor DR1012 Series

Brand name: MCT

Winding: We can design

Custom made: Available

Type: Fixed Inductor

Logo: Can be customized

Packing: Carton, can custom

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available


Part Information

Product Name: DR1012 Series DIP Drum Core Inductor with 4.7uH 100uH 820uH 1000uH

Applications: DC-DC converter, OA equipment, notebook computer, small size communication equipment, digital camera.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray.

Advantages: low cost, high reliability, low DC resistance, high saturation current.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.


Product Specification

Part Number

Inductance

L Test Condition

Min.Self-

resonant Frequency

MAX.DC

Resistance

Max.Rated

Current

Units

uH

Hz,V

MHZ

Ω

A

Symbol

LOA

-

S.R.F

DCR

Ir

MCTD1012-1R0M

1.0±20%

1K,0.25

7.96 MHZ

0.010

6.00

MCTD1012-1R5M

1.5±20%

1K,0.25

7.96 MHZ

0.010

6.00

MCTD1012-1R8M

1.8±20%

1K,0.25

7.96 MHZ

0.015

6.00

MCTD1012-2R7M

2.7±20%

1K,0.25

7.96 MHZ

0.015

5.50

MCTD1012-3R3M

3.3±20%

1K,0.25

7.96 MHZ

0.015

5.50

MCTD1012-3R9M

3.9±20%

1K,0.25

7.96 MHZ

0.020

5.00

MCTD1012-4R7M

4.7±20%

1K,0.25

7.96 MHZ

0.020

5.00

MCTD1012-5R6K

5.6±20%

1K,0.25

7.96 MHZ

0.025

4.80

MCTD1012-6R8K

6.8±20%

1K,0.25

7.96 MHZ

0.025

4.80

MCTD1012-8R2K

8.2±20%

1K,0.25

7.96 MHZ

0.025

4.50

MCTD1012-200K

10±10%

1K,0.25

2.52 MHZ

0.025

4.50

MCTD1012-120K

12±10%

1K,0.25

2.52 MHZ

0.025

4.30

MCTD1012-150K

15±10%

1K,0.25

2.52 MHZ

0.035

4.30

MCTD1012-180K

18±10%

1K,0.25

2.52 MHZ

0.400

4.00

MCTD1012-220K

22±10%

1K,0.25

2.52 MHZ

0.045

3.70

MCTD1012-270K

27±10%

1K,0.25

2.52 MHZ

0.045

3.50

MCTD1012-330K

33±10%

1K,0.25

2.52 MHZ

0.055

3.00

MCTD1012-390K

39±10%

1K,0.25

2.52 MHZ

0.060

2.50

MCTD1012-470K

47±10%

1K,0.25

2.52 MHZ

0.080

2.30

MCTD1012-560K

56±10%

1K,0.25

2.52 MHZ

0.085

2.00

MCTD1012-680K

68±10%

1K,0.25

2.52 MHZ

0.095

2.00

MCTD1012-820K

82±10%

1K,0.25

2.52 MHZ

0.110

1.80

MCTD1012-101K

100±10%

1K,0.25

796 KHZ

0.140

1.70

MCTD1012-121K

120±10%

1K,0.25

796 KHZ

0.160

1.50

MCTD1012-151K

150±10%

1K,0.25

796 KHZ

0.180

1.40

MCTD1012-181K

180±10%

1K,0.25

796 KHZ

0.250

1.30

MCTD1012-221K

220±10%

1K,0.25

796 KHZ

0.280

1.00

MCTD1012-271K

270±10%

1K,0.25

796 KHZ

0.420

0.90

MCTD1012-331K

330±10%

1K,0.25

796 KHZ

0.650

0.80

MCTD1012-391K

390±10%

1K,0.25

796 KHZ

0.600

0.80

MCTD1012-471K

470±10%

1K,0.25

796 KHZ

0.660

0.70

MCTD1012-561K

560±10%

1K,0.25

796 KHZ

0.740

0.60

MCTD1012-681K

680±10%

1K,0.25

796 KHZ

0.840

0.50

MCTD1012-821K

820±10%

1K,0.25

796 KHZ

1.080

0.50

MCTD1012-102K

1000±10%

1K,0.25

252KHZ

1.390

0.50
