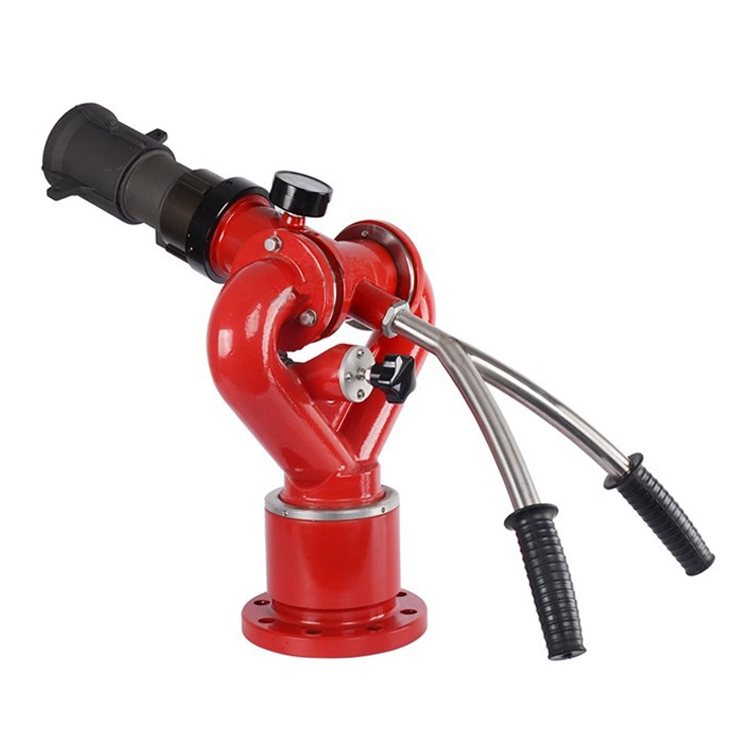

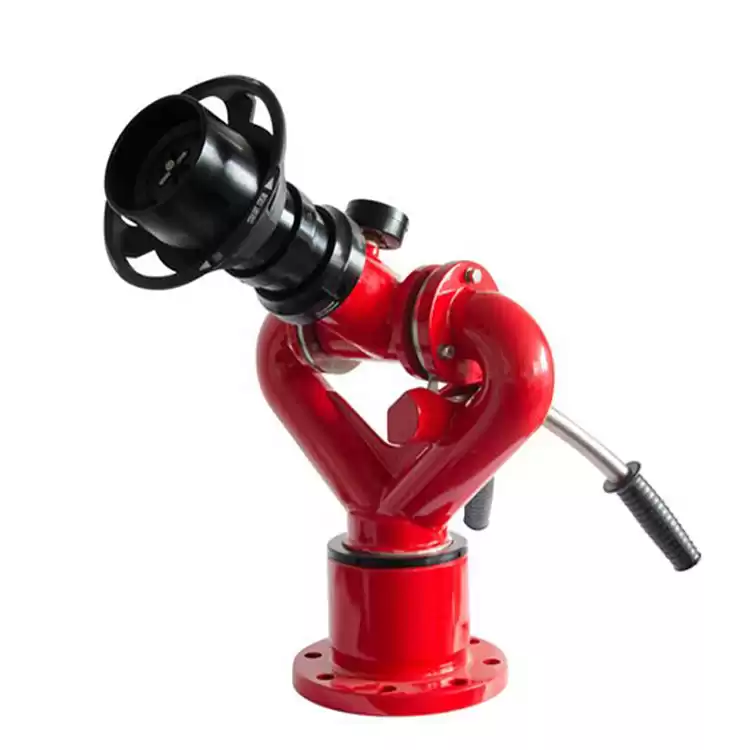

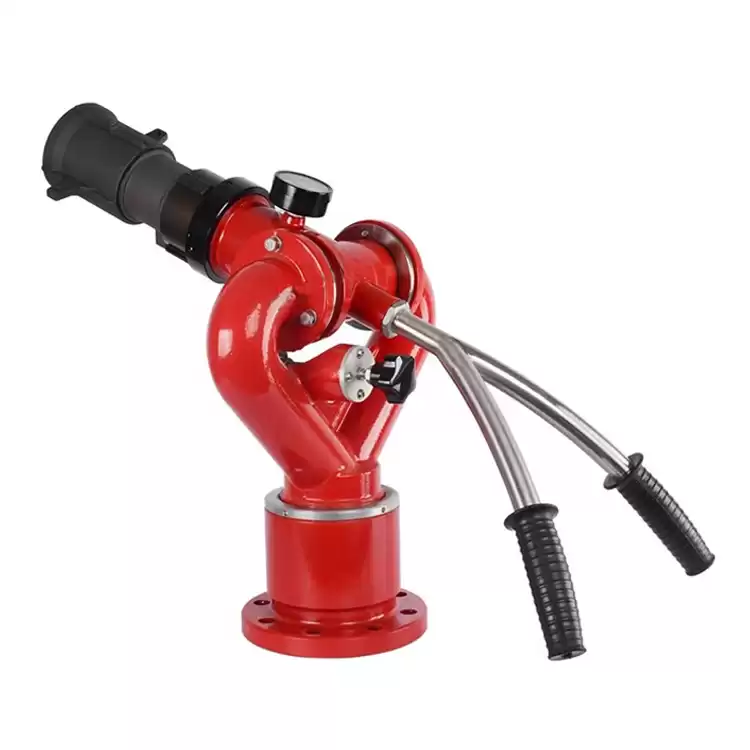

Ductile Iron Fixed Manual Fire Water Monitor

Ductile Iron Fixed Manual Fire Water Monitor with flexible operation, enabling long - range straight stream and spray for fire suppression.

Facebook Twitter Pinterest LinkedIn 分享

Product Description



The Ductile Iron Fixed Manual Fire Water Monitor is a new - type, multi - functional fire - extinguishing equipment. Made of high - pressure and high - strength ductile iron, it can be installed on various fire trucks, fire boats, fixed fire turrets, and fire pipes. Leveraging the diversion flow principle, it delivers large flow, concentrated water flow, and long - range projection. With flexible operation, adjustable flow, and dual spray modes, it's a reliable choice for fire suppression.

The PS series fire water cannon, known as the Ductile Iron Fixed Manual Fire Water Monitor, is a versatile fire - fighting device crafted from high - pressure and high - strength ductile iron. It is suitable for installation on diverse fire - fighting equipment like fire trucks, fire boats, fixed fire turrets, and fire pipes.



The gun nozzle utilizes the diversion flow principle, enabling large flow, concentrated water flow, and long - range water projection. It boasts multiple functions, supporting both straight stream and spray modes. The flow rate can be adjusted within the range of 20 - 60L/S as needed. Operation is flexible and convenient—the gun body can rotate horizontally and pitch up and down. Moreover, it can achieve positioning and locking, facilitating operators to evacuate the site and implement unmanned operation.



Feature

  • Simple operation, flexible movement, and long water - projection range.
  • Equipped with a flow adjustment function.
  • Capable of horizontal rotation and pitch rotation.
  • Supports both straight stream and spray functions.



Product Parameter



Model PS20T PS30T PS40T PS20-40T
Flow Rate 1200 LPM 1800 LPM 2400 LPM 1200-1800-2400 LPM
Working Pressure 8Bar
Max. Reach 45 meters
Max. Fog Angle 120°
Max Range Of Motion -45° to +80° Vertically, 360° Rotation
Waterway Size 2.5'' (65mm)
Monitor Outlet 2.5'' NH male thread
Monitor Inlet Flange 4" BS4504 is standard ( other sizes & standards are available)
Material

Monitor & Nozzle - Hard coated anodized aluminium alloy

Handwheel - Hard coated anodized aluminium alloy



FAQ
Q: What’s the MOQ for your Ductile Iron Fixed Manual Fire Water Monitor?
A: 10 Pieces.
Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge. But need customer pay sample fees and transport fees first.
Q: What is your payment terms?
A: Payment supports TT, LC.
Q: How can I get my order?
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.
Q: Why choose us?
A: We serve customers for over 30 years—so we’ve got the knowledge and industry experience to help you get it right. Let the professionals at Jinyuan Fire help you select the products that meet your exact needs.
