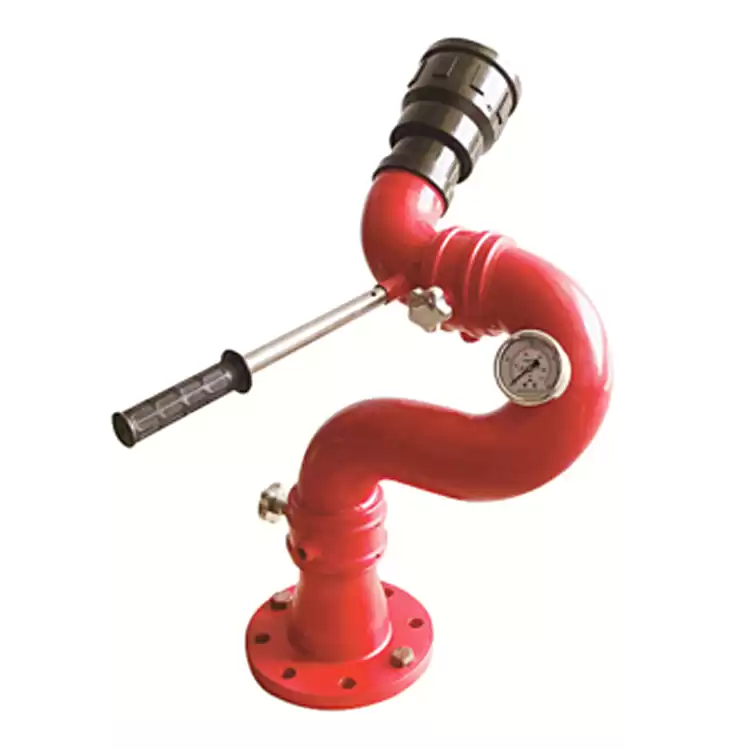

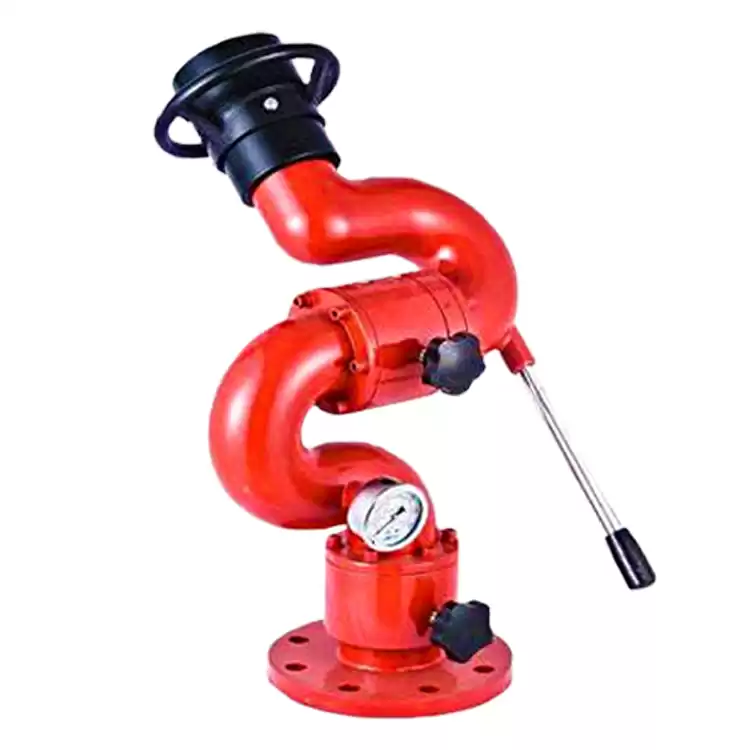

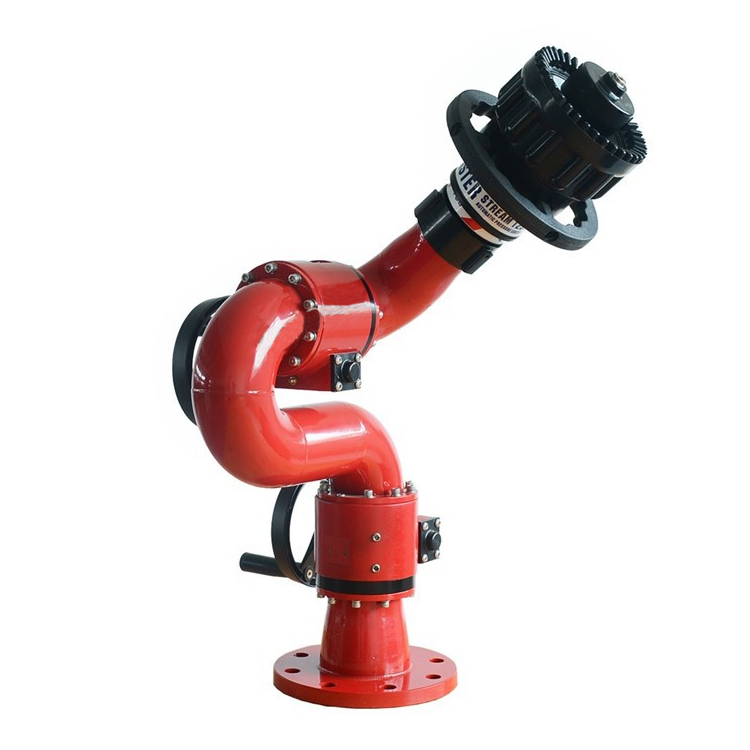

Fixed Manual Fire Water Cannon

This Fixed Manual Fire Water Cannon, with features like easy operation, long range, flow adjustment, dual rotations, and dual spray modes, can deliver large volumes of water or fire - suppressing agents to extinguish fires, cool fire sites, dilute toxic gases, and cool storage tanks in various industrial and marine settings.



Product Description

The Fixed Manual Fire Water Cannon (also known as Fire Monitor or Fire Water Monitor) is a cutting - edge fire - fighting device engineered to deliver large volumes of water or fire - suppressing agents for effective fire extinguishing. Leveraging the latest self - developed technology inspired by both domestic and international advancements, with improved key components, it boasts a simple yet novel design, ensuring stability, reliability, easy operation, and convenient maintenance.

Typically installed in industrial settings like chemical plants, mining operations, and large storage facilities (as well as offshore oil rigs, ports, dock oil depots, and on marine firefighting vessels), it features a nozzle attached to a swivel joint for wide - range movement, mounted on fixed structures such as walls, platforms, or roofs. When emitting a water column, it can extinguish solid fires; when producing a water mist, it serves for fire - site cooling, fire rescue, and cooling of storage tanks (e.g., oil, benzene, methanol tanks). Moreover, the water mist effectively absorbs heat at the fire site and dilutes toxic/harmful gases like smoke and chlorine, enhancing firefighters' safety.





Feature
  • User - Friendly Operation: Simple to operate and flexible in use, enabling quick response during fire emergencies.
  • Long - Range Capability: Can reach distant fires, expanding the fire - fighting coverage area.
  • Flow Adjustment Function: Allows customization of water flow to match different fire - fighting demands.
  • Dual Rotation Modes: Supports horizontal and pitch rotation, enabling precise aiming at the fire source.
  • Dual Spray Modes: Capable of generating both straight stream and spray patterns for versatile fire - fighting strategies.



Product Parameter

Model Number PS10/20W-T PS10/30W-T PS10/40W-T PS10/20-40W-T
Flow Rate 1200 LPM 1800 LPM 2400 LPM 1200-1800-2400 LPM
Working Pressure 10 Bar
Max. Reach 50 meters 60 meters 65 meters 50-65 meters
Max Range Of Motion -45°to+70° Vertically, 360° Rotation
Max.Fog Angle 120°
Waterway Size 2.5"(65mm)
Monitor Outlet 2.5"(65mm)NH male thread
Monitor Inlet Flange 4" ANSI 150# is standard,other size and standard available
Material

Monitor&Nozzle-Hard coated anodized aluminium alloy

Tiller-SS304 Stainless steel





FAQ

Q: What’s the MOQ for your Fixed Manual Fire Water Cannon?
A:MOQ:10pieces.
Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge. But customers need to pay sample fees and transport fees first.
Q: What is your payment terms?
A: Payment supports T/T, L/C, etc.
Q: How can I get my order?
A: We will send the goods via UPS, DHL, Fedex, Oversea Shipment or other forwarders, all with tracking numbers.
Q: Why choose us?
A: With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well - known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications.
