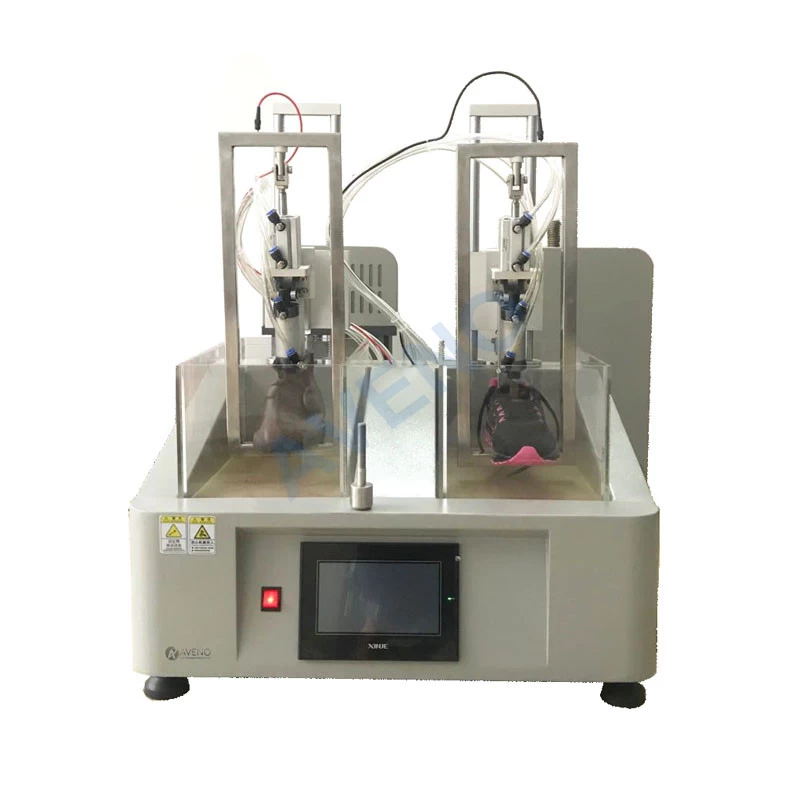

AF13 Dynamic Footwear Water Resistance Tester
Application Of Dynamic Footwear Water Resistance Tester
Dynamic Footwear Water Resistance Tester is designed to determine the dynamic water resistance of all types of shoes.
Test Principle of Dynamic Footwear Water Resistance Tester

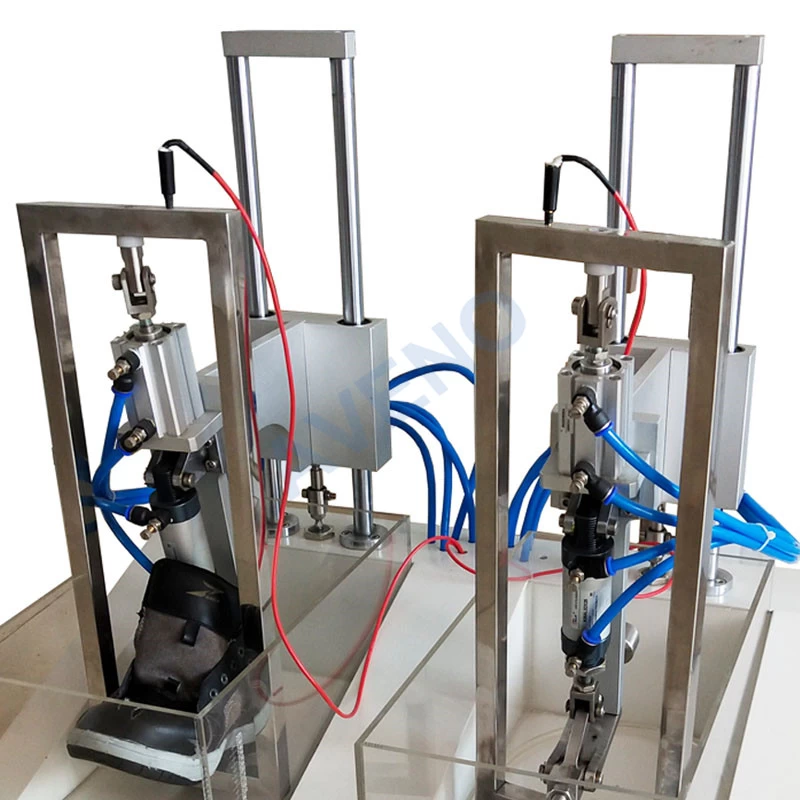

The water tank is filled with a specified volume of colored water. A specimen is put on the artificial foot and flexed at a given angle and speed, and inspected at intervals for water penetration.
Standards Of Dynamic Footwear Water Resistance Tester
SATRA TM230
Key Specification Of Dynamic Footwear Water Resistance Tester
|
Model
|
AF13 Dynamic Footwear Water Resistance Tester
|
|
Test position
|
2
|
|
Flexing angle
|
25±2°
|
|
Flexing speed
|
60CPM
|
|
Controller
|
PLC
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
75x80x80cm
|
|
Weight
|
90kg
|
