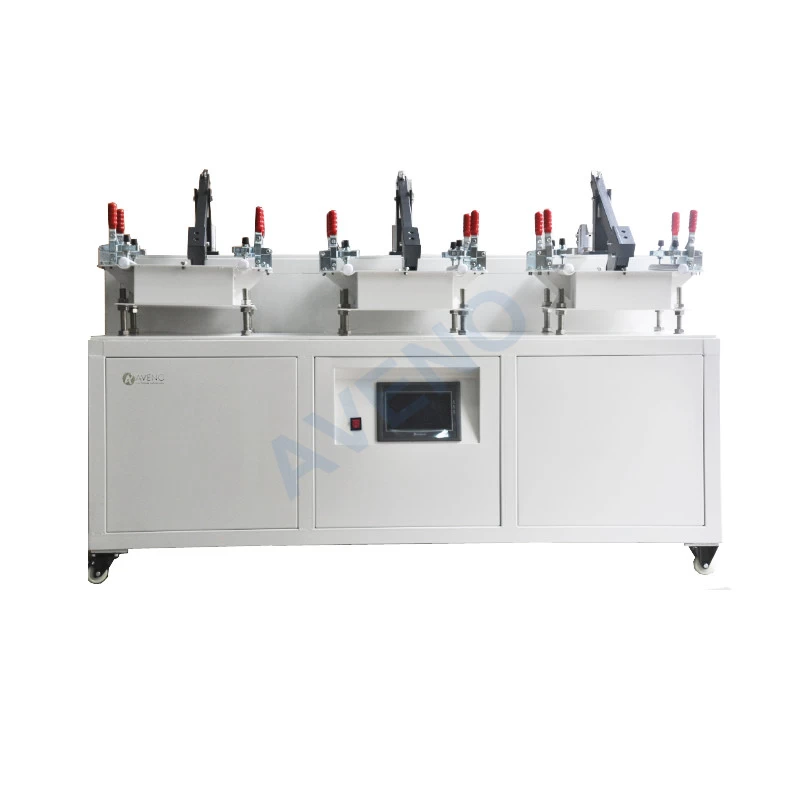

AG50-Dynamic Seams Fatigue Tester
Application Of Dynamic Seams Fatigue Tester
Dynamic Seams Fatigue Tester is used to test the dynamic fatigue ability of fabric seams.
Test Principle Of Dynamic Seams Fatigue Tester
Clamp the sample fabric with seam position on the Specimen holder containing elastic foam pad, fixed both side, use a fixed weight wheel capable of turning freely with rubber surface continuous impact from a certain height on the surface of the specimen, after finish the times set, check if the seam part have damage.
Standards Of Dynamic Seams Fatigue Tester
ASTM D403
Key Specification Of Dynamic Seams Fatigue Tester
|
Model
|
AG50
Dynamic Seams Fatigue Tester
|
|
Control mode
|
Touch screen control
|
|
Test speed
|
(0.4±0.03)Hz,(25±2)times/min
|
|
Test times
|
7000 times, can be set
|
|
Impact height
|
150mm(6”), adjustable
|
|
Impact weight
|
3.75kg
|
|
Impact wheel center position
|
Parallel distance with seam
25±3mm
|
|
Elastic foam pad size
|
230mmx280mmx180mm
|
|
Sample dimension
|
190mmx255mm
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
156x80x100cm
|
|
Weight
|
250kg
|
