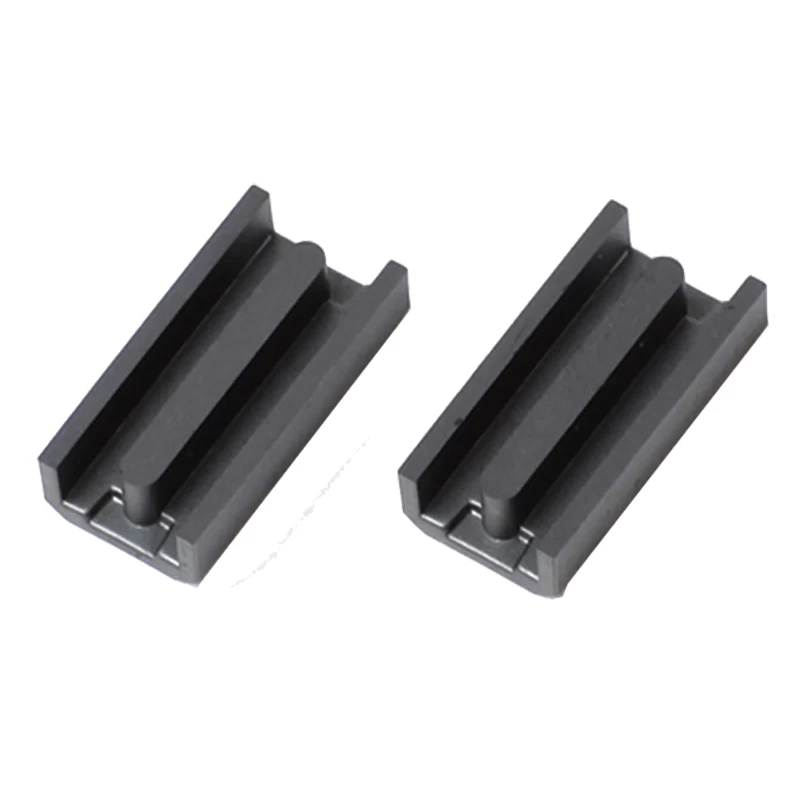

EDR Series High Frequency Soft Ferrite Core Used for Switching Power Output Transformer

EDR soft power ferrite core has high-frequency, low-loss. Mainly used in switching power output and smoothing circuits. Efficiency: more than 98% Certification: ISO9001,ROHS,CE.



Quick Details

Part Number: EDR Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/MP4/MP44/MP95

Logo: Can be customized

Type: Power core   Phase: single

OEM: Available

Features: High inductance, low loss

MOQ: Any quantity

Packing: Carton, can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE



Part Information

Product Name: EDR Series High Frequency Soft Ferrite Core Used for Switching Power Output Transformer

Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Applications: Switching Power Output Transformer. Choke coil for high frequency SMPS. EMI/RFI filters. DC/DC converters. IP and OP devices

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.



Product Details

EDR series ferrite core professional supplier High quality EDR power core manufacturerHigh frequency transformer core EDR series ferrite coreBest Price Soft Ferrite Core EDR Ferrite CoreBest quality EDR high frequency AF transformer with ferrite core

       Dimension

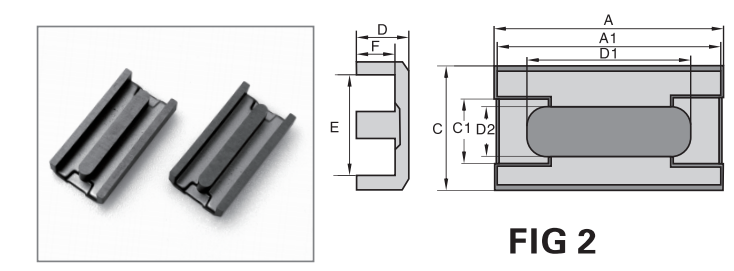

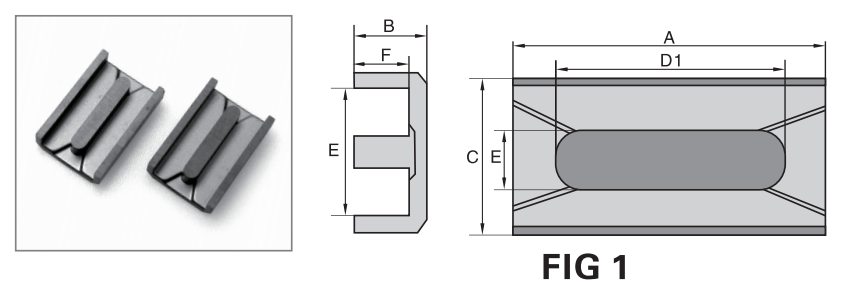

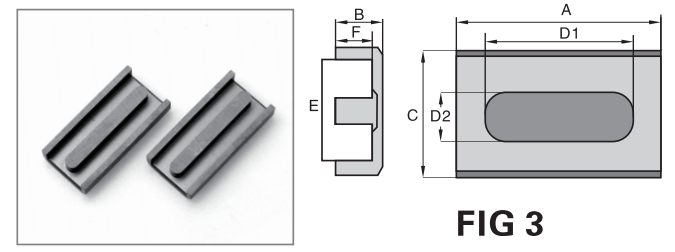

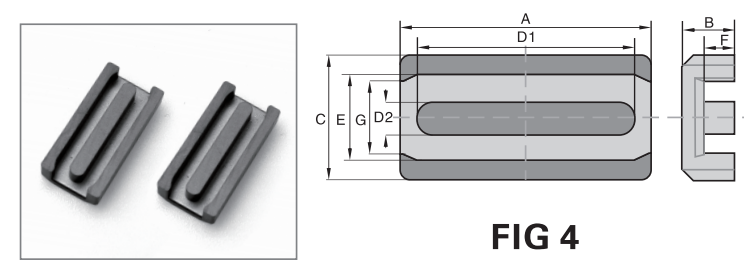

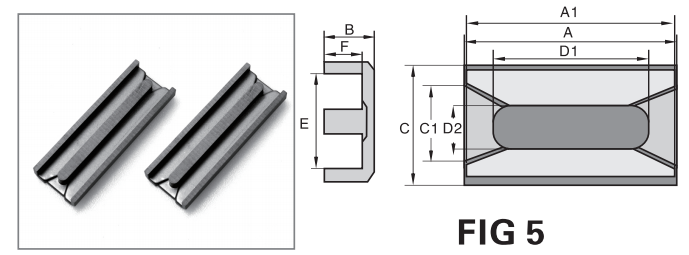

Fig

A

B

C

D1

D2

E

F

Type &Size

mm

mm

mm

mm

mm

mm

mm

MCT PN















EDR20

1

20.2±0.5

4.6±0.2

13.5±0.5

15.75±0.3

2.7±0.15

10.4min

2.9±0.2

EDR25

2

25.4±0.5

4.85±0.25

12.8±0.5

21.6±0.4

2.8±0.3

8.5min

3.4±0.25

EDR26

1

26.0±0.5

4.5±0.3

13.6±0.3

21.7±0.5

2.7±0.3

10.3 min

2.8±0.3

EDR28

3

28.0±0.5

4.6±0.3

13.5±0.5

25.2±0.5

3.2±0.3

9.5 min

3.0±0.3

EDR30

4

30.0±0.5

4.60±0.20

14.70±0.40

25.8±0.3

2.75±0.20

11.4min

2.75±0.20

EDR32

4

32.0±0.5

4.10±0.20

11.70±0.40

27.8±0.2

2.20±0.20

8.7min

2.65±0.20

EDR39

5

39.40±0.5

4.50±0.2

13.5±0.5

35.00±0.2

2.70±0.2

10.40 min

 2.80±0.2

EDR40

5

40.0±0.7

4.75±0.25

13.7±0.6

39.8±0.6

2.95±0.2

10.8min

3.45±0.3

EDR41

1

41.0±0.7

4.4±0.2

12.8±0.3

34.8±0.5

2.7±0.2

9.5min

3.2±0.3


TYPE

 Effective parameters

Weight(g/prs)

ALnH/N2±25%1KHZ,0.25V,100TS

MCT PN

C1(mm-1)

Ae(mm2)

Le(mm)

Ve(mm3)

(g/set)

MP4

MP44

MP47

M5P

MP90

MP95

MP96

EDR20

0.37

56.30

20.60

1159.78

6.25

2790

2911

3033

1698

2669

4003

4003

EDR25

0.31

78.30

24.40

1910.52

9.6

3490

3642

3793

2124

3338

5007

5007

EDR26

0.33

71

23.62

1677.02

9.2

3480

3631

3783

2118

3329

4993

4993

EDR28

0.33

77.08

25.68

1979.41

10.35

3620

3777

3935

2203

3463

5194

5194

EDR30

0.24

104.35

24.88

2596.23

12.45

4800

5009

5217

2922

4591

6887

6887

EDR32

0.27

82.7

22.4

1852.48

11.6

4400

4591

4783

2678

4209

6313

6313

EDR39

0.19

128.20

23.74

3043.47

13.3

5230

5457

5685

3183

5003

7504

7504

EDR40

0.24

108.96

26.05

2838.41

14.2

4800

5009

5217

2922

4591

6887

6887

EDR41

0.19

118.85

22.83

2713.35

13.6

5300

5530

5761

3226

5070

7604

7604
