EDR20 High Frequency Transformer Bobbin Phenolic Bobbin Pin 5+5

EDR20 bakelite transformer bobbin. 5+5 pins EDR bobbin. Phenolic EDR bobbin. Pin Pitch=2.5mm. LED transformer bobbin. Bobbin Size=17.6mmX17.6mmX5.1mm. DIP/SMD bobbin. UL REC:94V-0



We manufacture high quality EDR bobbins, 5+5 pin EDR20 vertical coil bobbin, which used in various types transformers, filter inductors, automotive electronics, etc. Good price and high quality, if you need samples, we can provide you in 5 days, for more detailed information, welcome to inquire us.


Quick Details

Part Number: MCT-EDR2001(V5+5P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EDR20 High Frequency Transformer Bobbin Phenolic Bobbin Pin 5+5

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

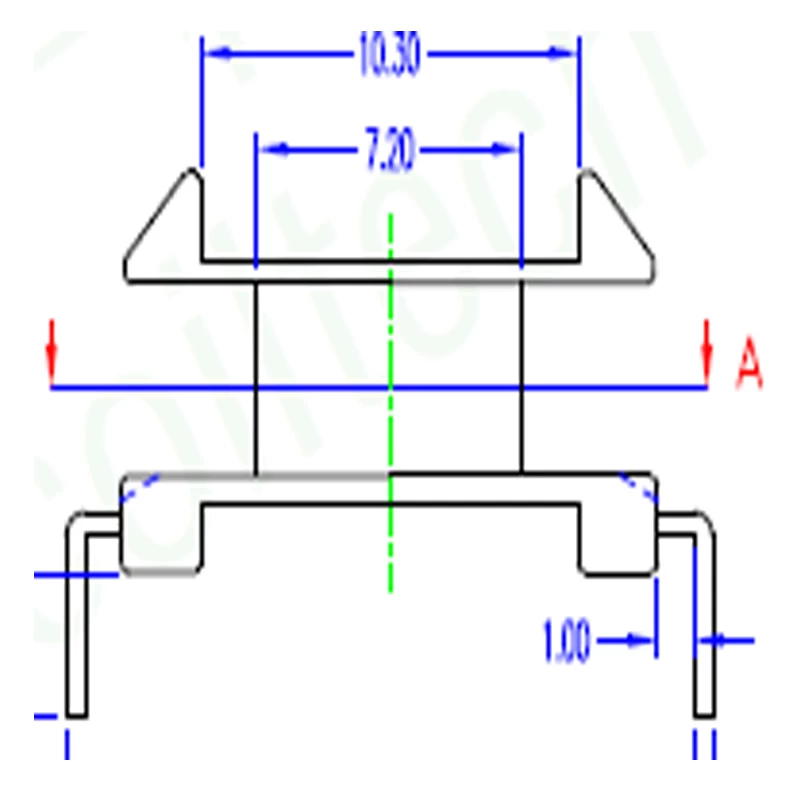

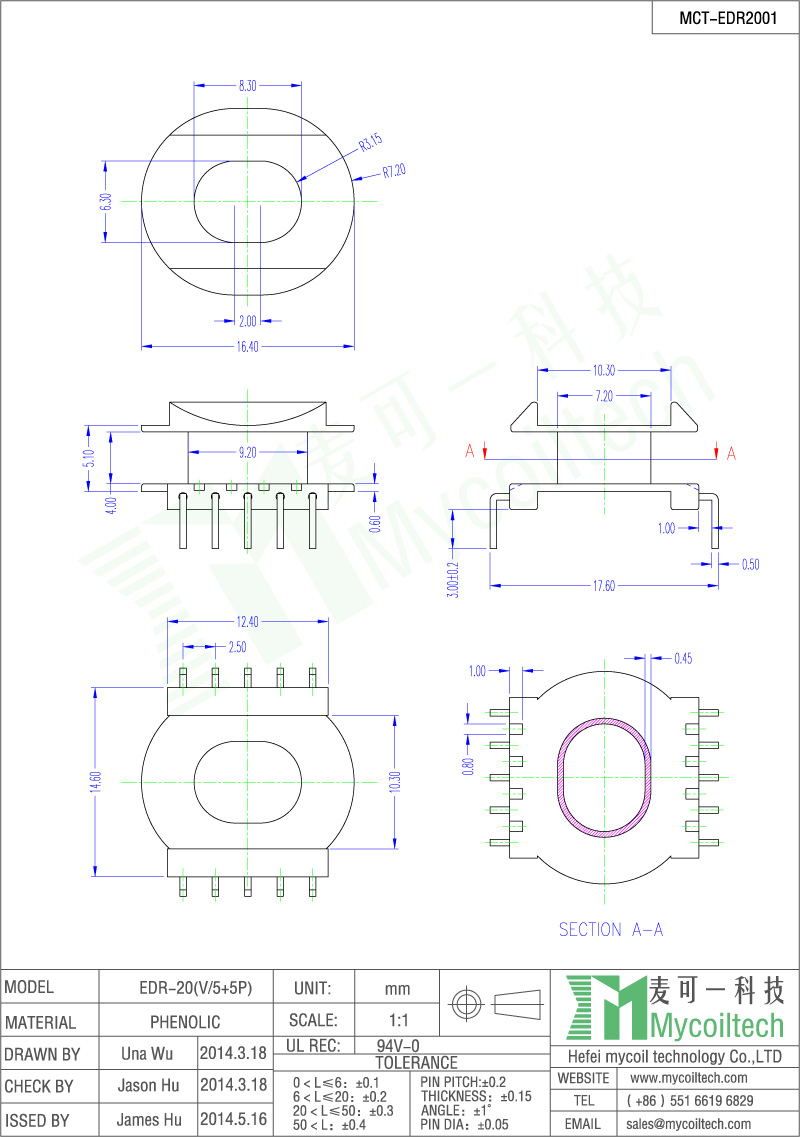

LED Power Bobbin EDR20 Vertical Bobbin
