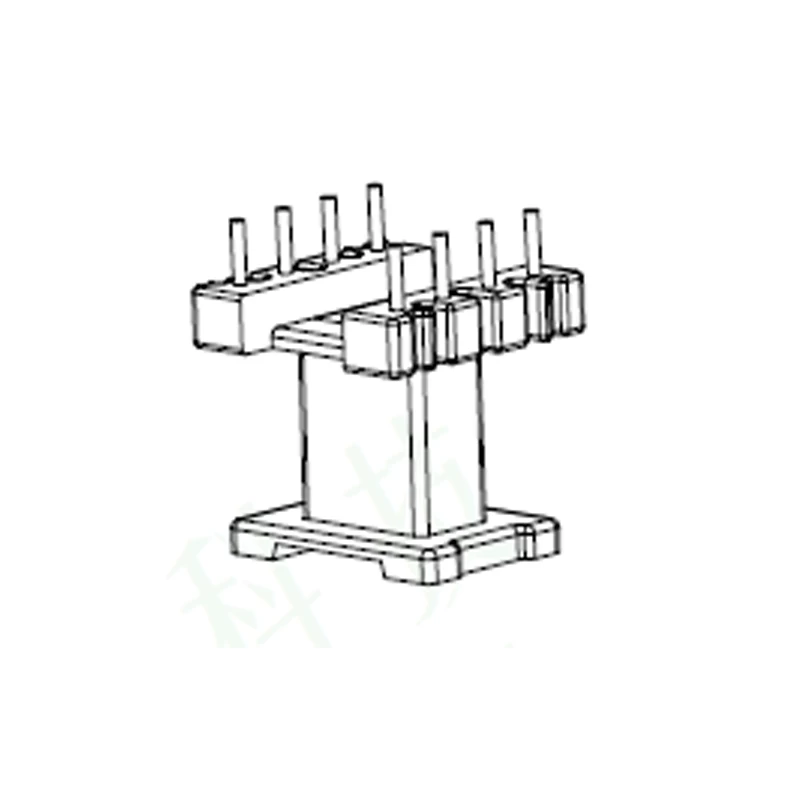

EE10 High Frequency Transformer Bobbin, Pin 4+4

4+4 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0

Pin pitch=2.5mm, Parallel Distance=8mm
Size=10.5mmX10.4mmX10mm



China electronic components manufacture MCT EE10 transformer bobbin, accept any quantity!



Quick Details

Place of Origin: Hefei,China(Mainland)



Custom Made: Available



Material: Phenolic

Part Number: MCT-EE1013(V4+4P)



Brand Name: MCT



Color: Black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name: EE10 High Frequency Transformer Bobbin, Pin 4+4

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: power supply transformers, toroidal inductors, DC-DC converters, high-frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Lily Yu

Email: sales003@mycoiltech.com

Skype:   live:sales003_125

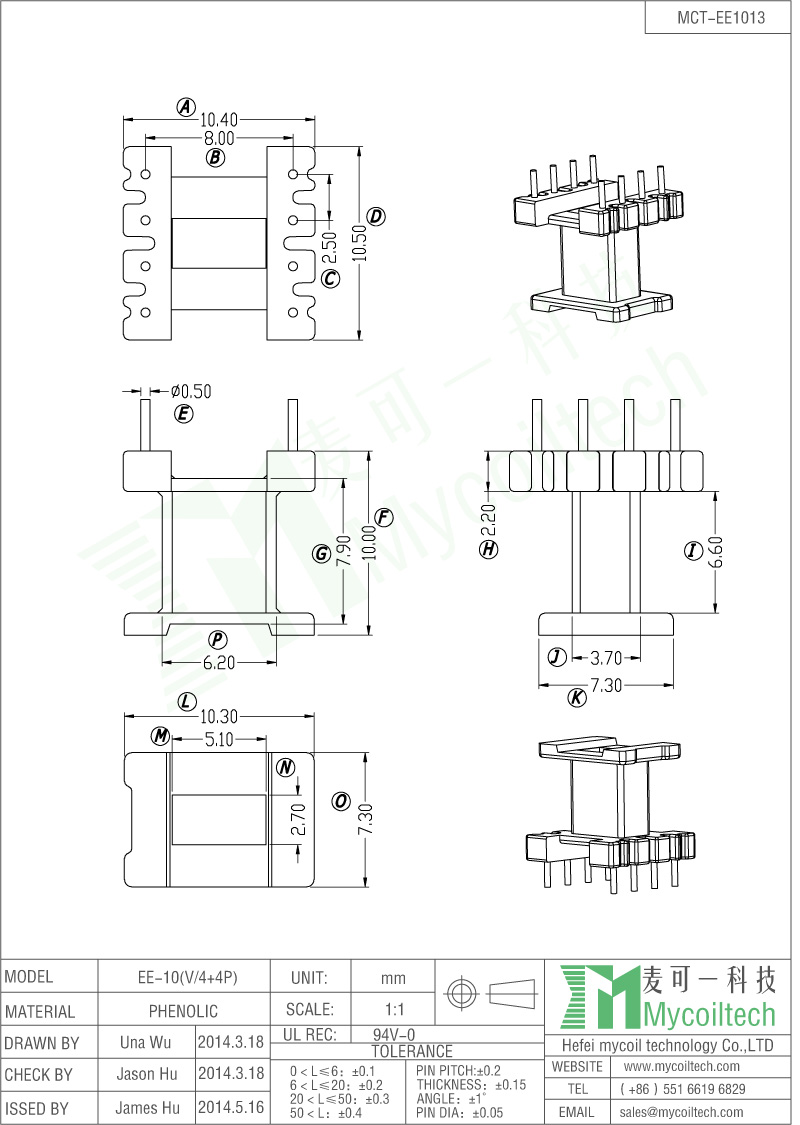

Product Specification

vertical EE10 bobbin factory
