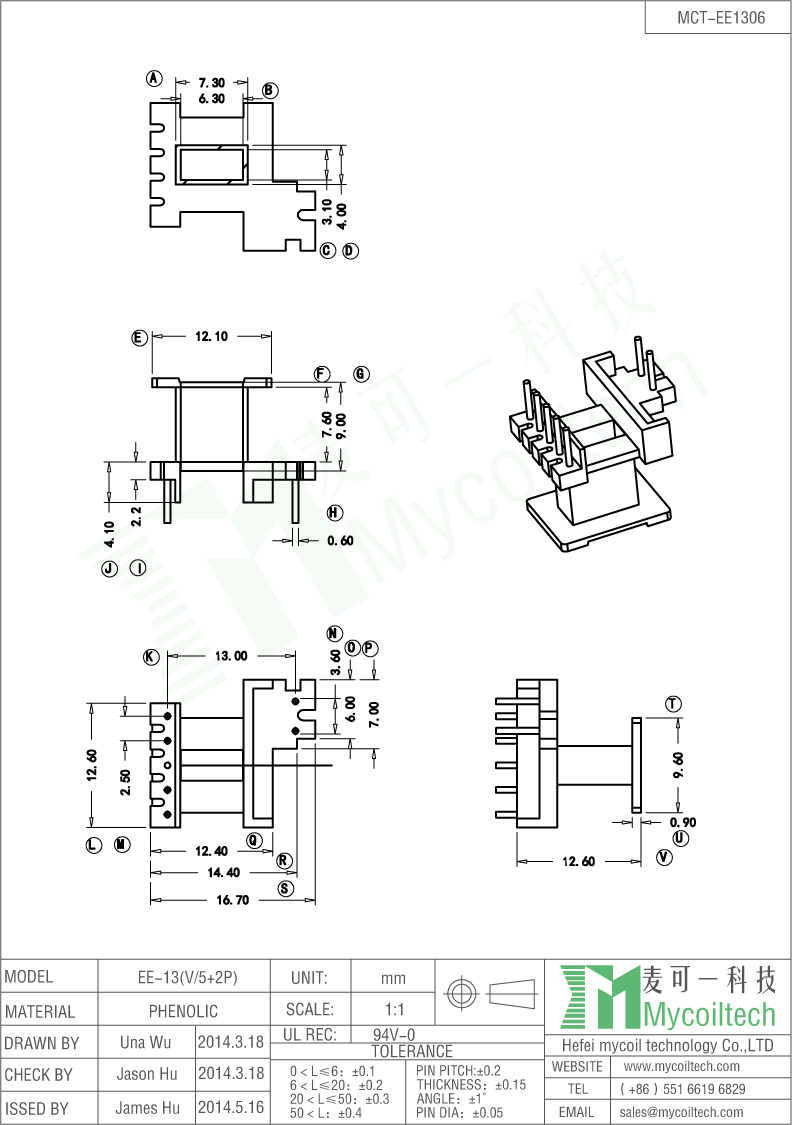

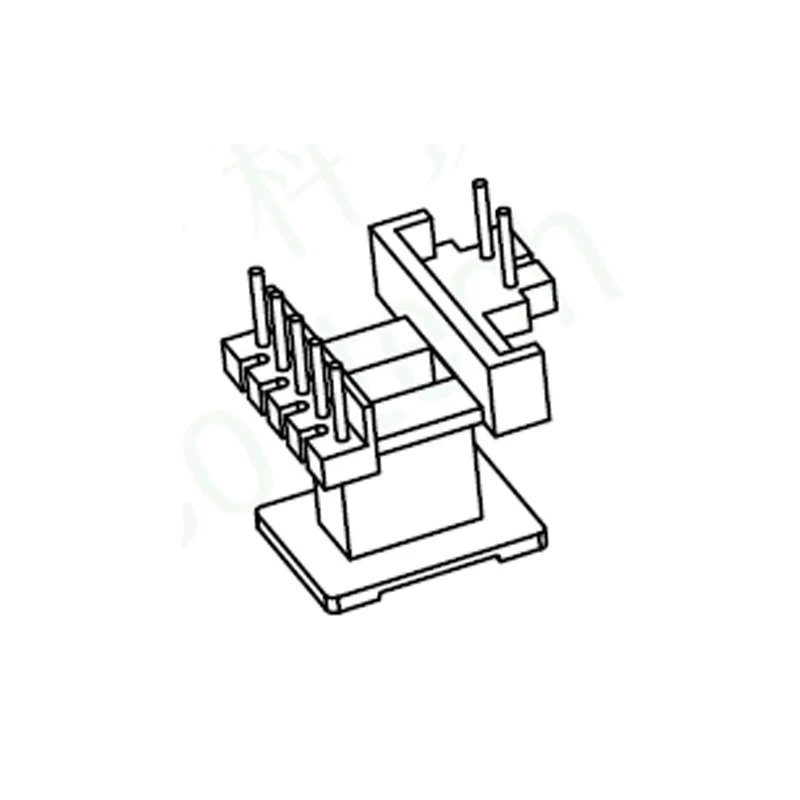

EE13 Vertical Bobbin For High Frequency Transformer 5+2 Pins

5+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0
Pin Pitch1=3.6mm Pin Pitch2=2.5mm

Parallel Distance=13mm






our mainly market is north American and Europe,products are certified by CE,UL,VDE,CSA,CQC,big discount now,wait for your inquiry.

Quick Details

Place of Origin: Hefei,China(Mainland)

Custom Made: Available

Material:Phenolic

Part Number:MCT-EE1306(V5+2P)

Brand Name: MCT

Color: black

Certification: ISO9001,ROHS,CE

Packing: Carton,can be customized

OEM: Available

Lead Time: 25 days after payment

Logo: Can be customized

MOQ: Any quantity


Part Information

Product Name: EE13 Vertical Bobbin For High Frequency Transformer 5+2 Pins.

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air ,By ship ,etc.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.


Contact: Miss Qian Gao

Email: qian.gao@mycoiltech.com

Skype: live:qian.gao_5


Product SpecificationEE13 Vertical Bobbin For High Frequency Transformer
