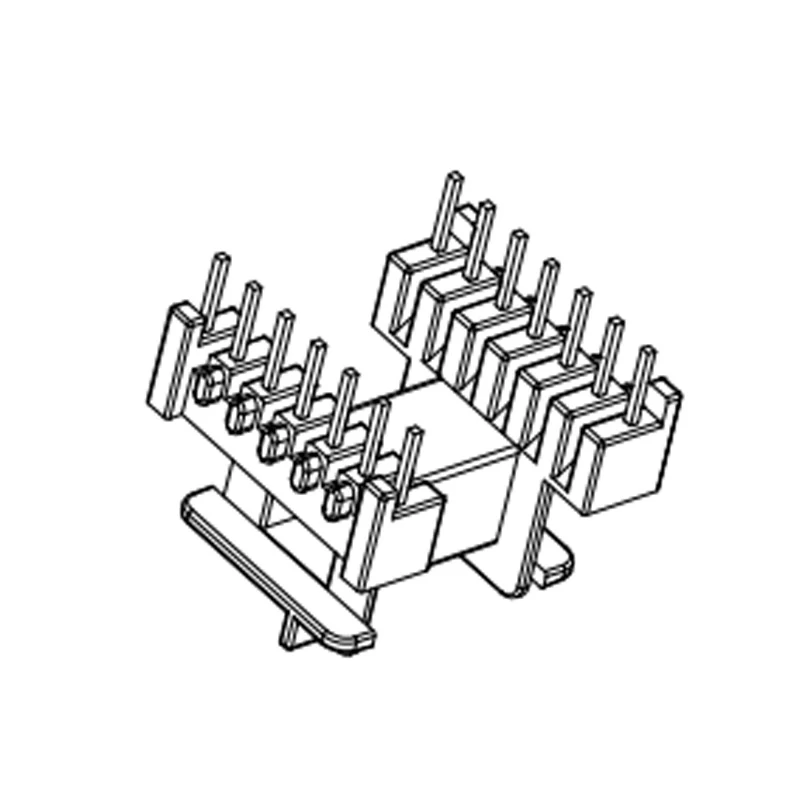

EE16 Horizontal Transformer Bobbin With 7+7 Pins Dip Bobbin

6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0

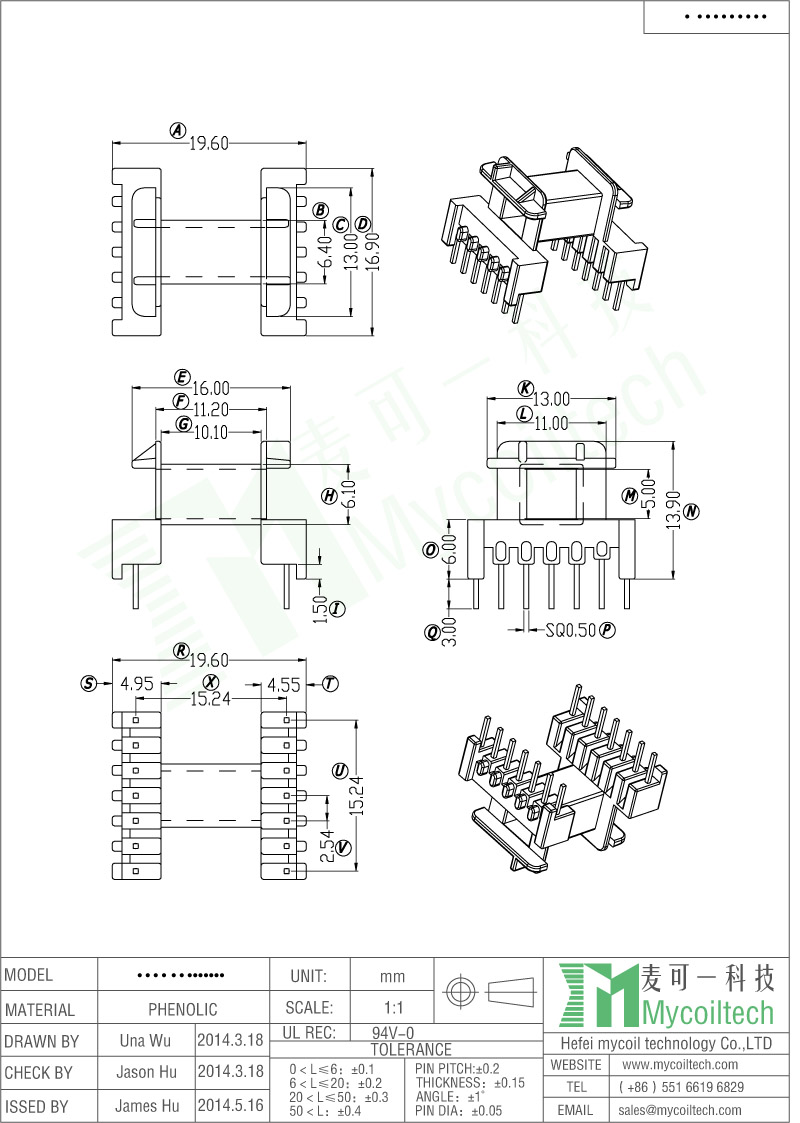

Pin Pitch=2.54mm Parallel Distance=15.24mm

Size=19.6mmX16.9mmX13.9mm



EE16 Vertical bobbin ,Phenolic material ,for pcb mounting transformer ,high frerquency transformers ,7+7pins,custom made is available as we have a technical team consists of 5 experienced engineers.


Quick Details

Place of Origin:Hefei,China(Mainland)



Custom Made: Available



Material:Phenolic

Part Number: MCT-EE1632(H7+7P)



Brand Name: MCT



Color: black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name:EE16 Horizontal Transformer Bobbin With 7+7 Pins Dip Bobbin.

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air ,By ship ,etc.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Miss Qian Gao

Email: qian.gao@mycoiltech.com

Skype: live:qian.gao_5



Product Specification

EE16 Horizontal Transformer Bobbin With 7+7 Pins Dip Bobbin
