EE19 Transformer Bobbin for Power Transformer 3+3 Pin Double Slots Coil Former

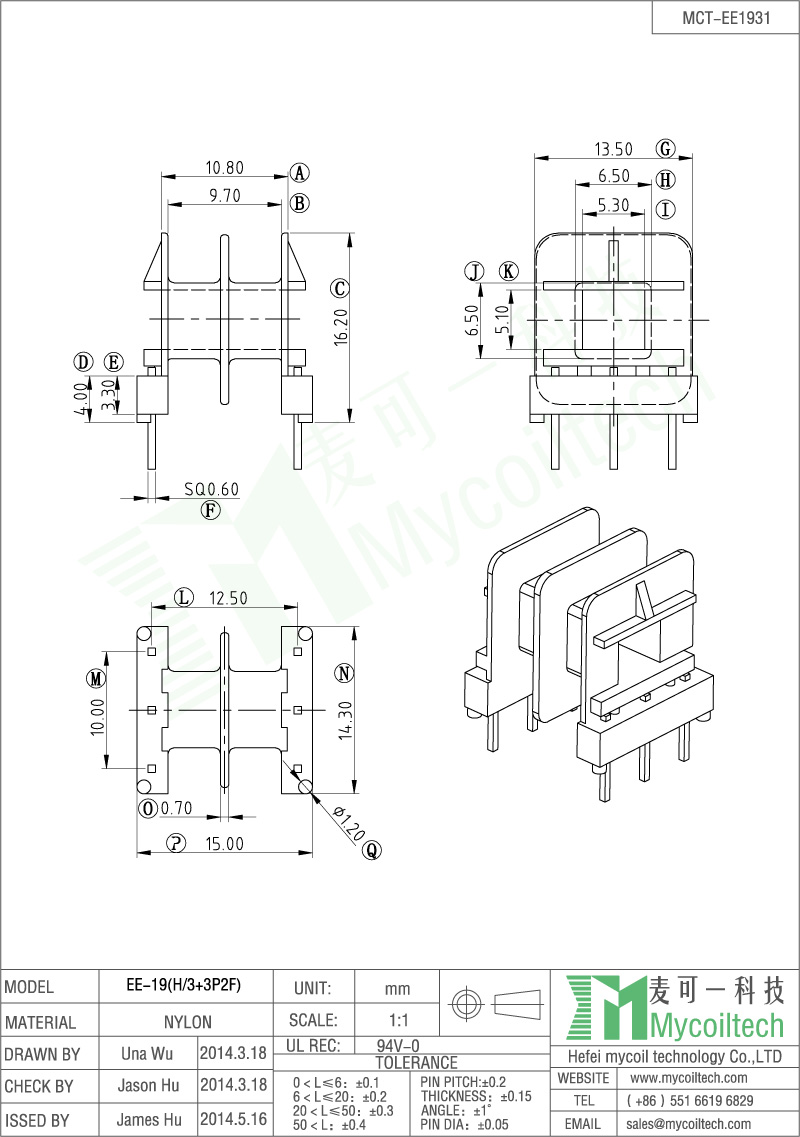

3+3 pin EE19 transformer bobbin. Horizontal winding bobbin. Double slots nylon material bobbin. Parallel distance=12.5mm. Dip bobbin. Bobbin Size=1mmX14.3mmX16.2mm. We can make bobbin tooling. UL REC: 94V-0



Professional electronic components factory MCT. If you are looking for high quality EE19 electronic transformer bobbin, 3+3 pin double slots coil bobbin, horizontal or vertical type bobbin, welcome to contact us.


Quick Details

Part No: MCT-EE1931(H3+3P2F)

Brand Name: MCT

Material: NYLON

Color: Black, Red

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EE19 Transformer Bobbin for Power Transformer 3+3 Pin Double Slots Coil Former

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

Multi section high frequency transformer bobbin 3+3 pin
