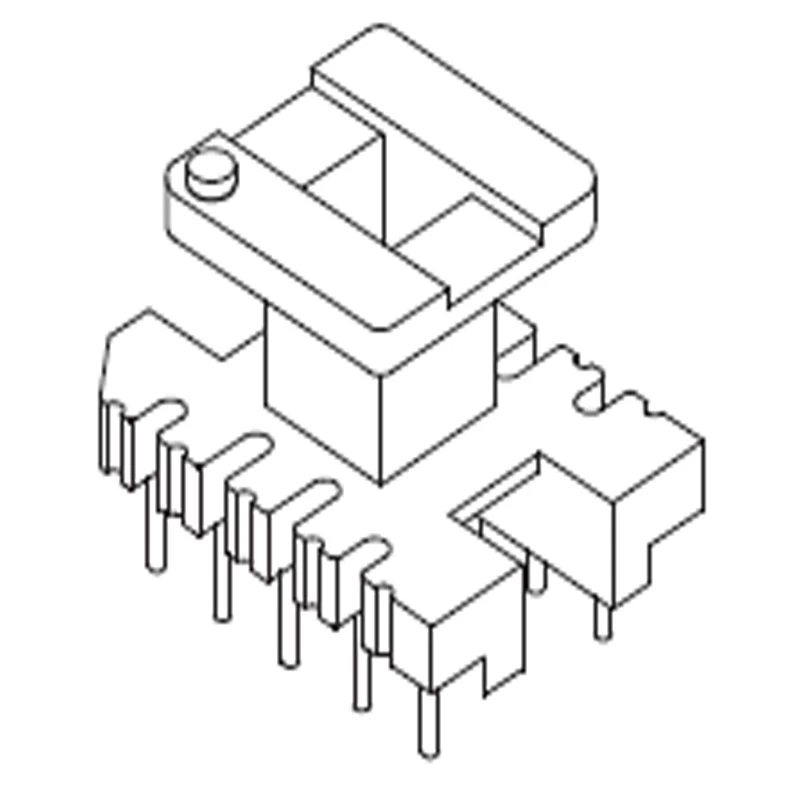

EE19 Vertical Transformer Bakelite Bobbin for Ferrite Core Pin 5+5

Vertical EE19 transformer bobbin. 5+5 pin EE19 bobbin made of phenolic material. Parallel distance=10.2mm. Pin Pitch=4mm. Bobbin Size=22.1mmX15.5mmX16.9mm. Dip bobbin. UL REC: 94V-0



Competitive price and best service EE19 type transformer bobbin, vertical winding bobbin 5+5 pin. We provide samples and custom design, any requests, welcome to contact us.



Quick Details

Part Number: MCT-EE1935(V5+5P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EE19 Vertical Transformer Bakelite Bobbin for Ferrite Core Pin 5+5

Product Range: Transformers, inductors, coils, bobbins, magnetic cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

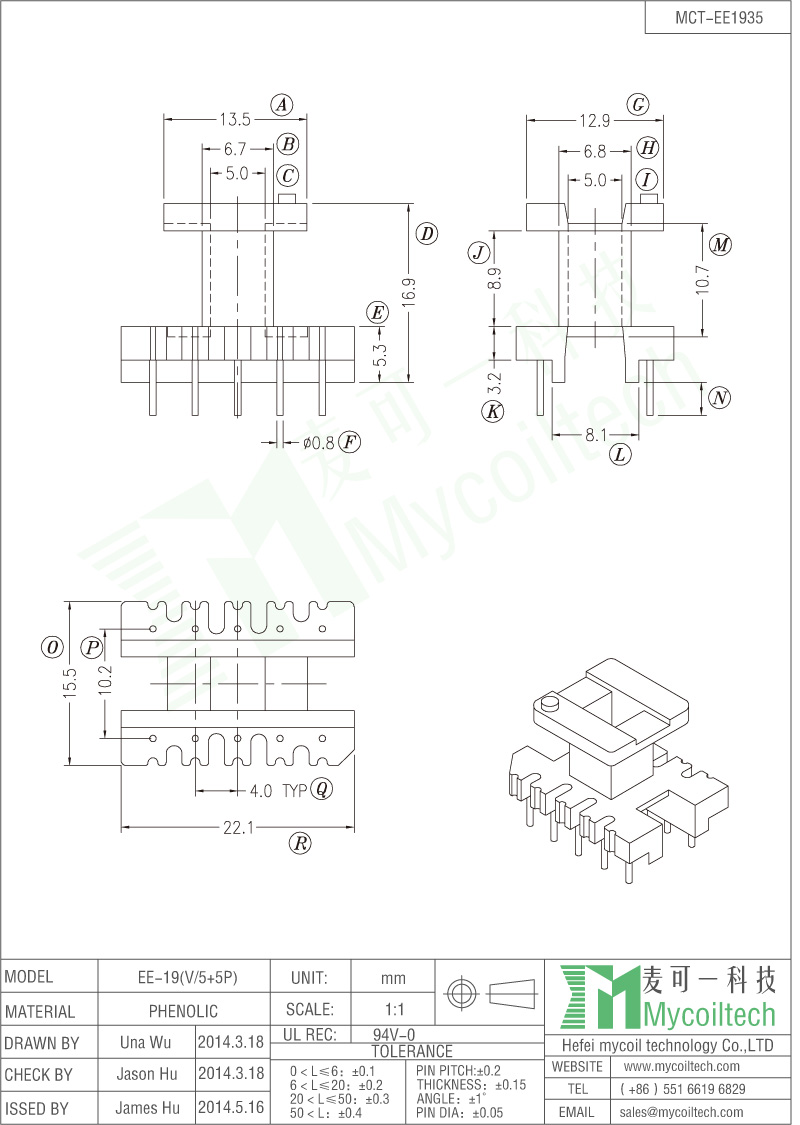

Good quality 10 pin EE19 transformer bobbin(coil former)
