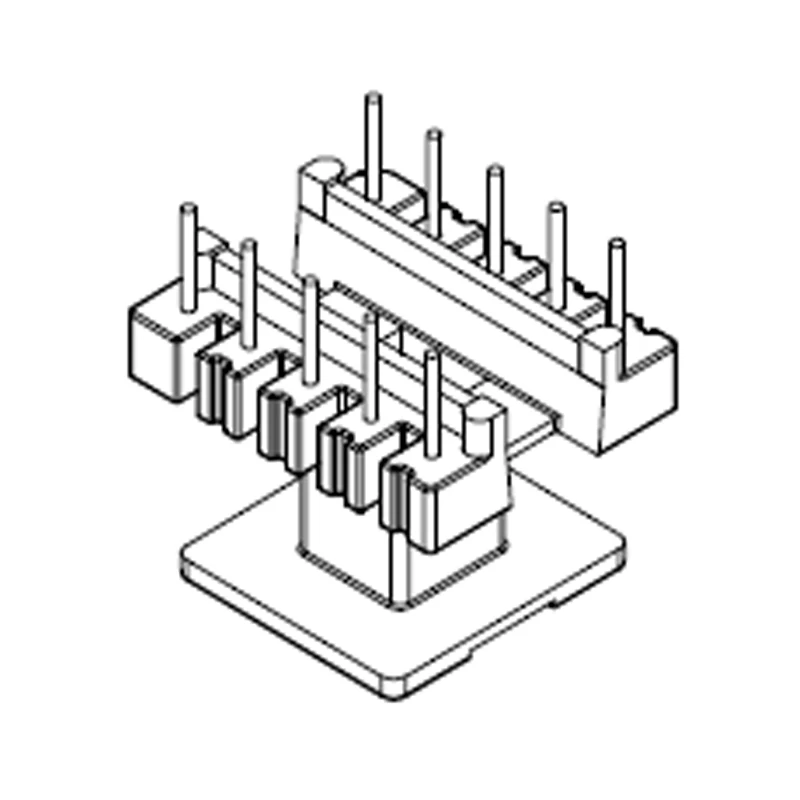

EE25 Ferrite Core Bobbin For Power Transformer

EE25 vertical bobbin pin 5+5. EE25 phenolic transformer bobbin. Bobbin Size=25mmX20.5mmX19.4mm. Pin Pitch=5mm. Parallel Distance=15.2mm. DIP transformer bobbin. UL REC:94V-0.



2018 popular transformer design, EE25 vertical 5+5 pin transformer bobbin, factory price and best quality, we can send samples for your testing, we also can make new bobbin tooling to meet different dimensions.


Quick Details

Part Number: MCT-EE2504

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: EE25 Ferrite Core Bobbin For Power Transformer

Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

Applications: switching power supply transformers, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.


Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

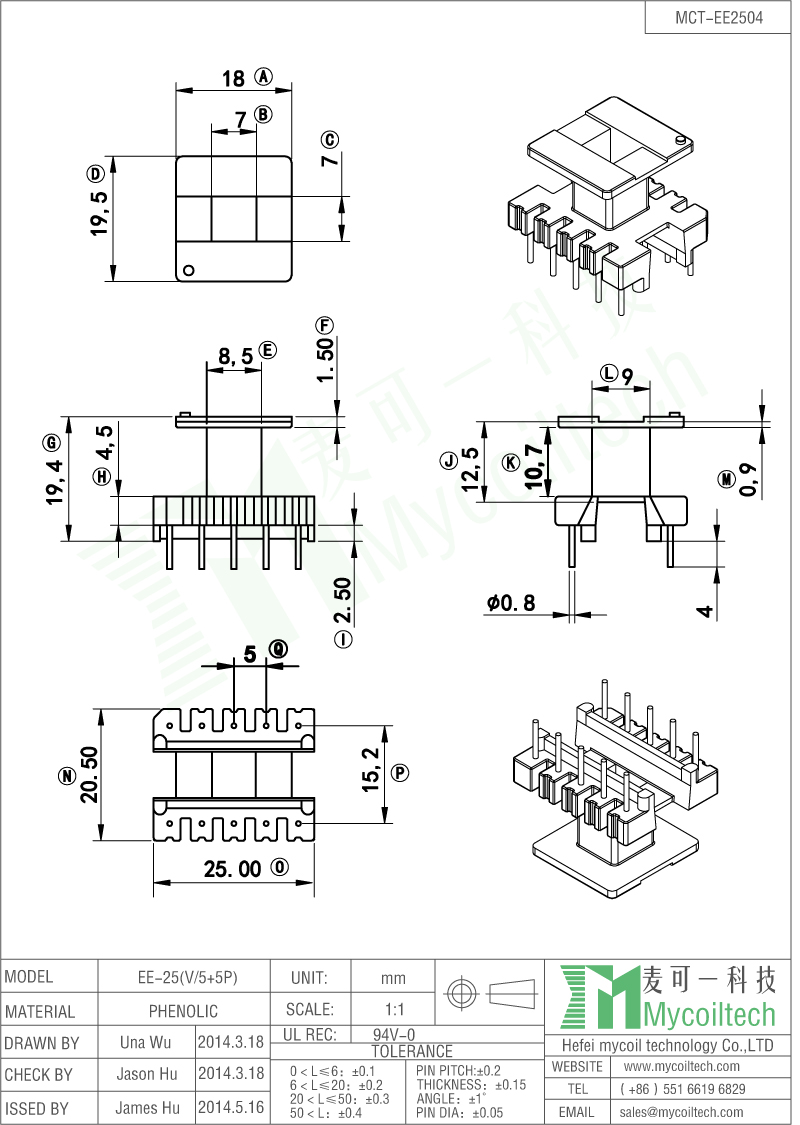

Product Specification

EE25 Transformer Bobbin Manufacturer
