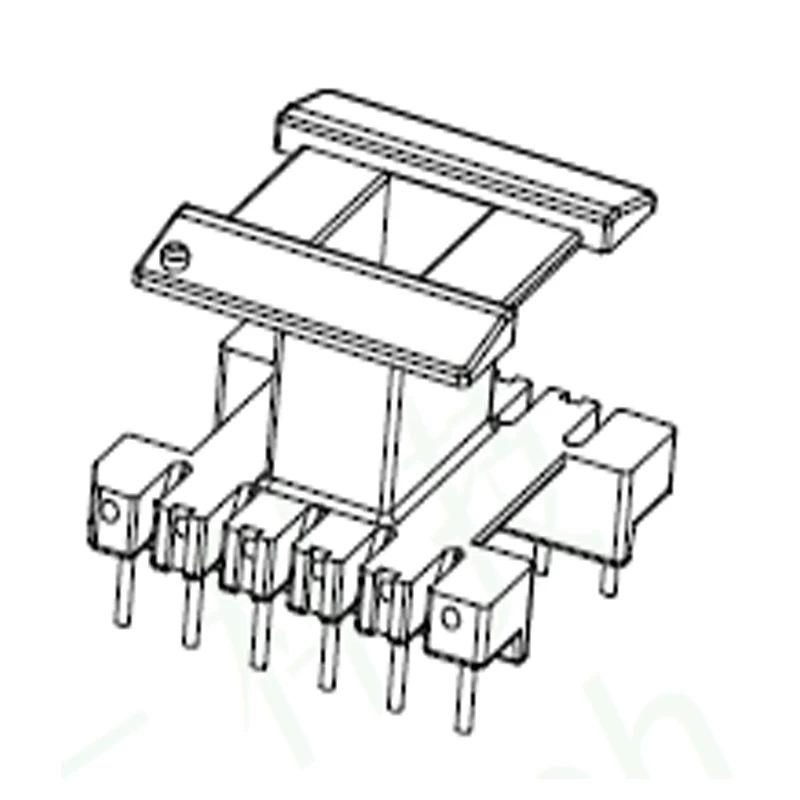

EE25 Vertical Transformer Bobbin 6+6 Pin Single Slot

6+6 pin EE25 vertical coil bobbin. Pin Pitch=4.5mm. Parallel Distance=20.7mm. Bobbin Size=27.3mmX27mmX18.8mm. EE25 PA66 material beige transformer bobbin. DIP transformer bobbin. UL REC:94V-0.



2018 popular EE25 single slot transformer bobbin pin 6+6, horizontal or vertical type transformer bobbin. We can provide free samples for testing.


Quick Details

Part Number: MCT-EE2515

Brand Name: MCT

Material: PA66

Color: Beige

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: EE25 Vertical Transformer Bobbin 6+6 Pin Single Slot

Product Range: Transformers, toroidal inductor, coils, bobbins, magnetic cores.

Applications: switching power supply transformers, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.


Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

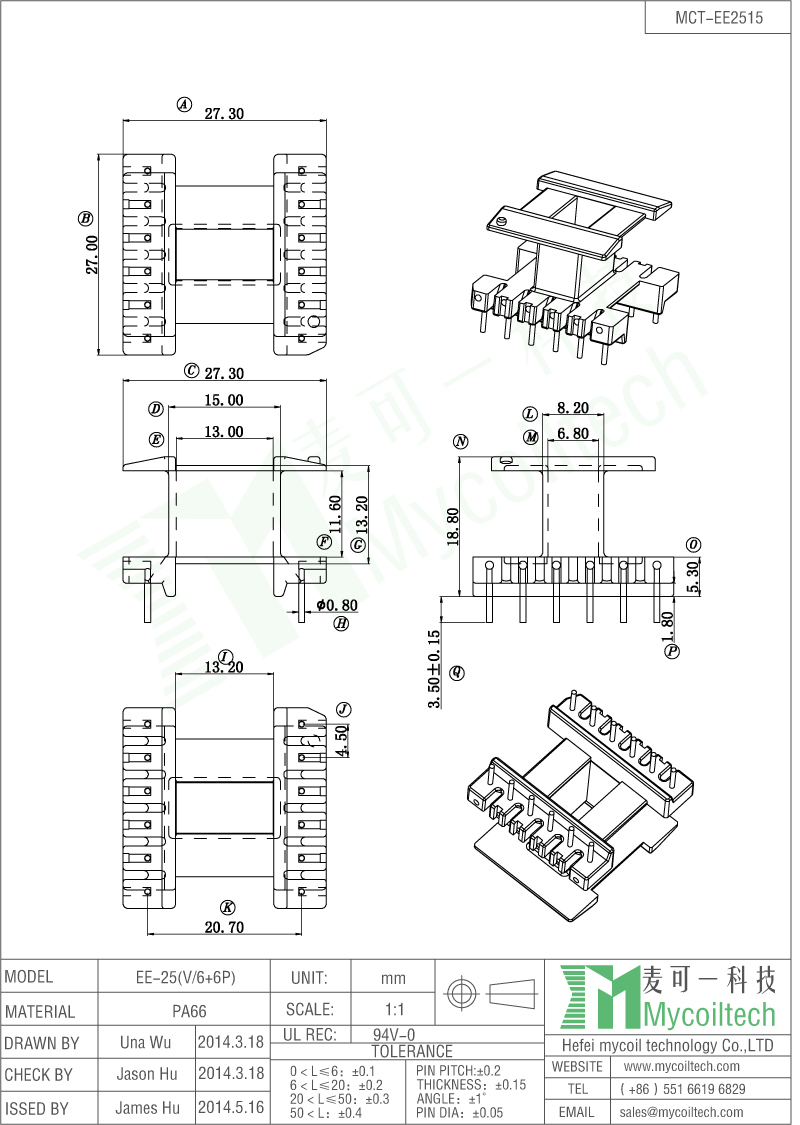

Product Specification

Vertical transformer bobbin EE25
