EE28 6+6 Pin Bobbin For High Frequency Transformer

EE28 bobbin four slots. 6+6 pin horizontal bobbin EE28. Bobbin Size=40.2mmX26.1mmX21.0mm. Pin Pitch=4.6mm. Parallel Distance=27.7mm. EE28 lead free transformer bobbin. DIP transformer bobbin. UL REC:94V-0.



Best selling soft ferrite core bobbin, good quality and competitive price, we accept small order and OEM service. Welcome for customized products.


Quick Details

Part Number: MCT-EE2857

Brand Name: MCT

Material: PA66-70G33L

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: EE28 6+6 Pin Bobbin For High Frequency Transformer

Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

Applications: switching power supply transformers, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.


Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

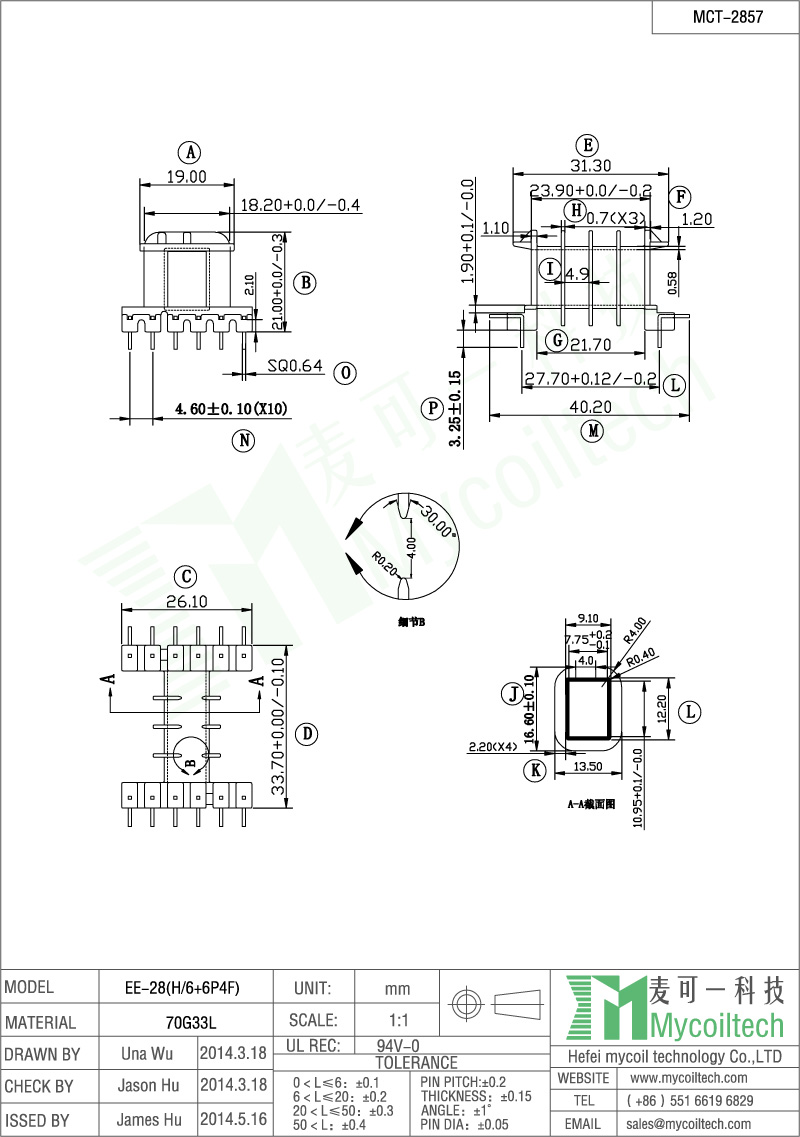

Product Specification

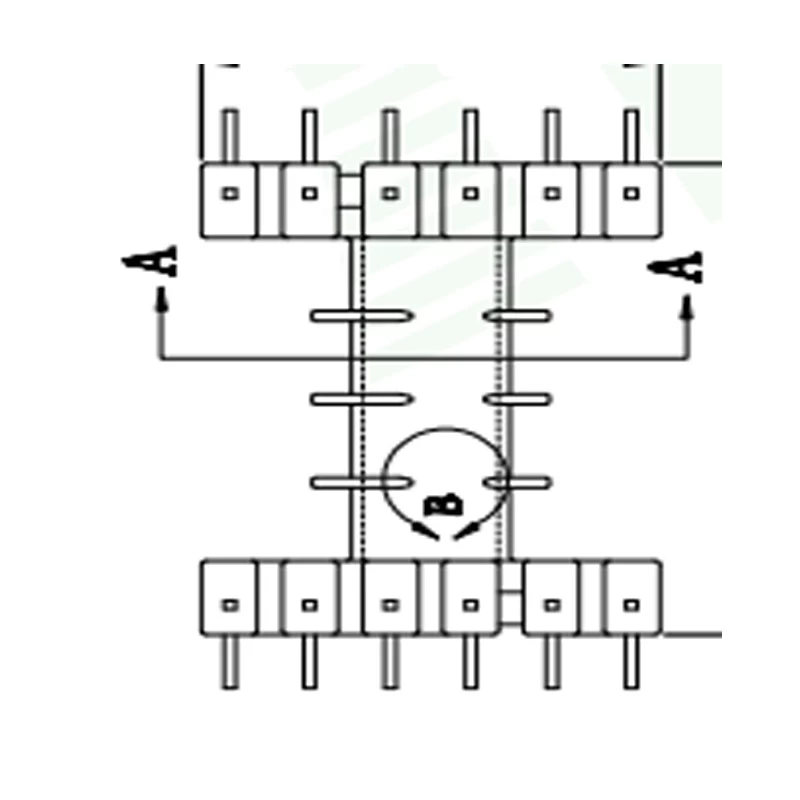

EE28 horizontal 6+6 pin bobbin
