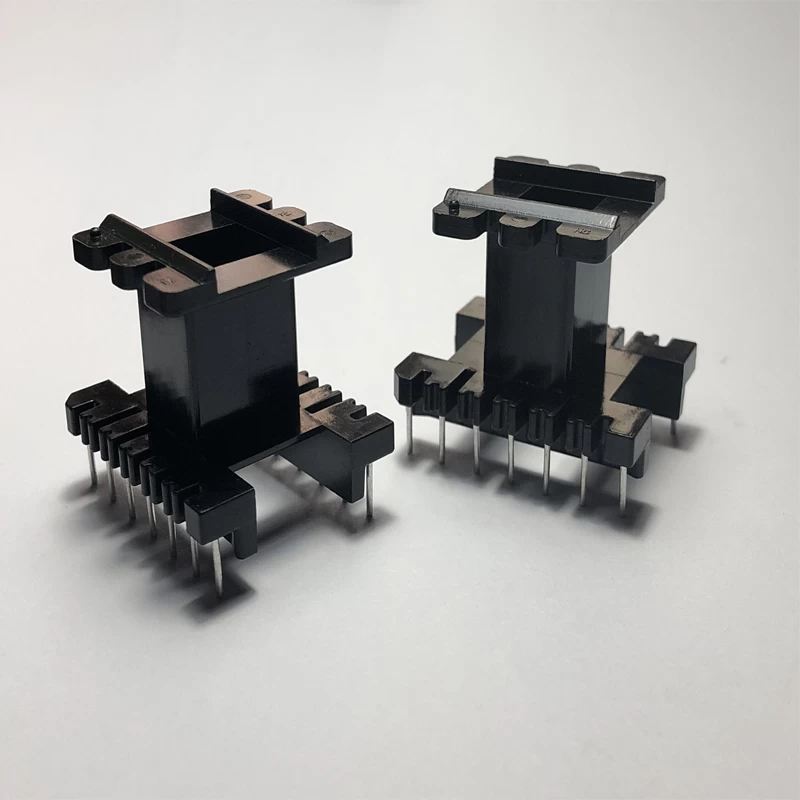

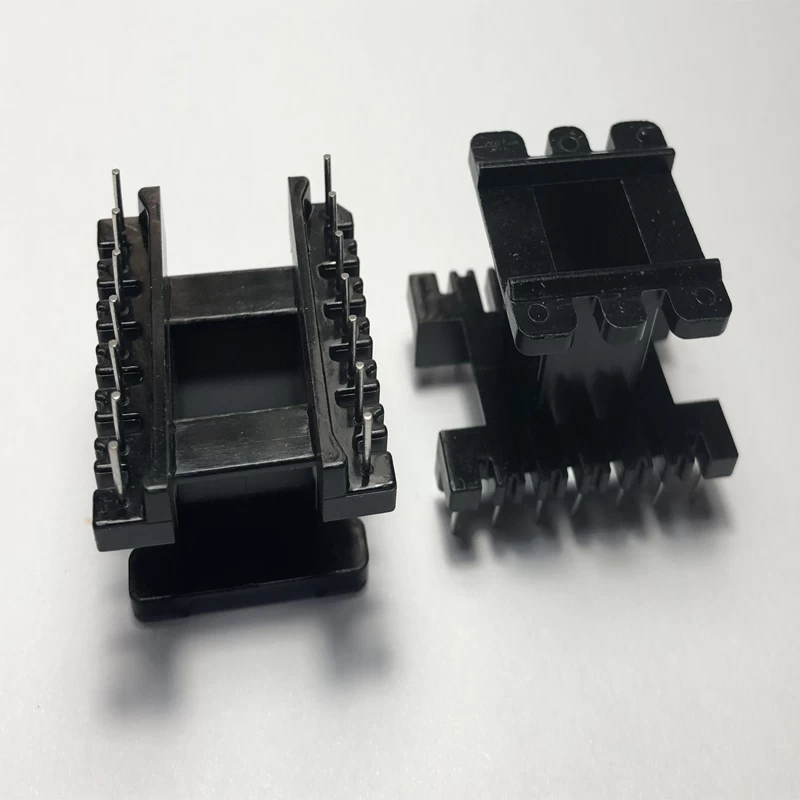

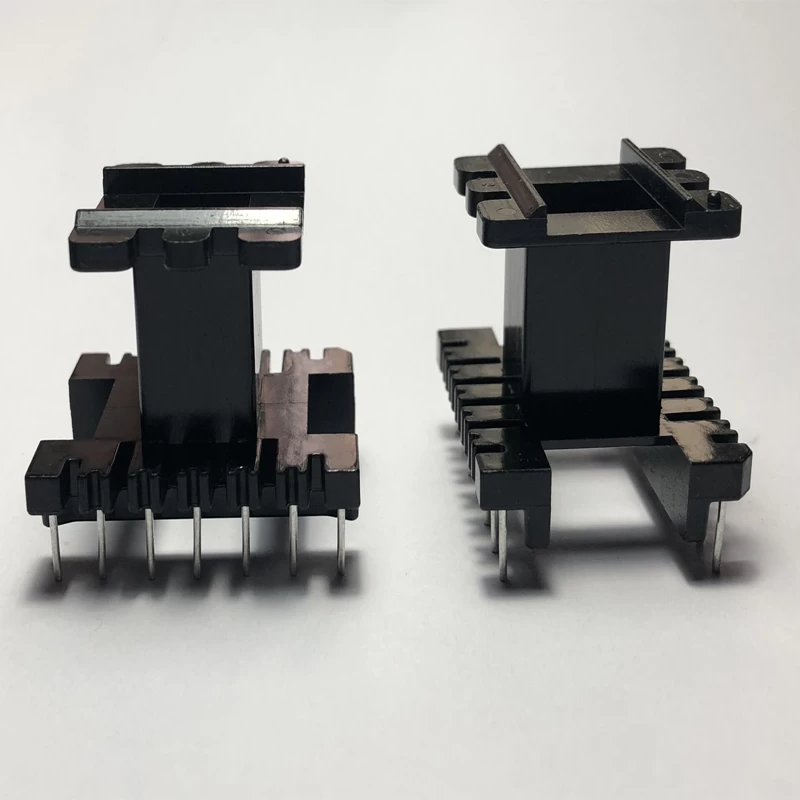

EE33 High Power Ferrite Core Bobbin 14 Pins

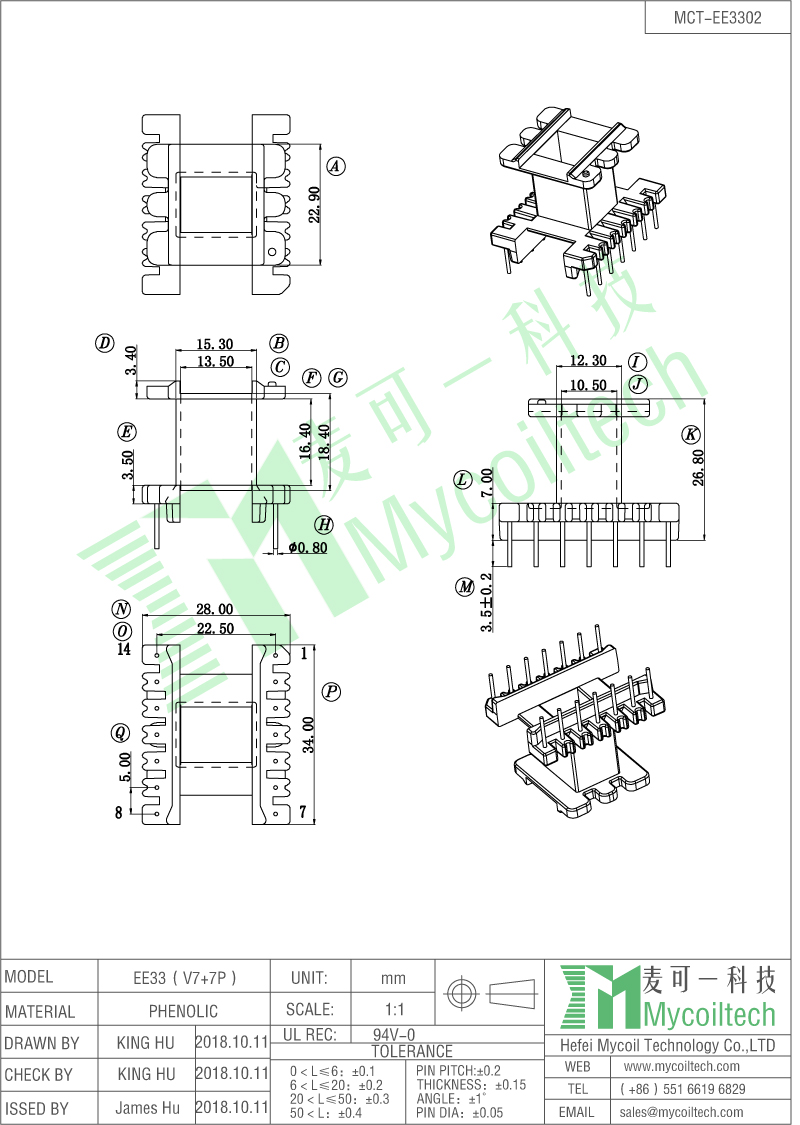

Supply EE33 bobbin for PCB mounting transformer. Vertical type EE33 ferrite coil. Customized pins and transformer. Bobbin Size=34.0mmX28.0mmX26.8mm. Pin Pitch=5.0mm. Parallel distance=22.5mm. DIP transformer phenolic material bobbin.



Factory direct selling EE33 power supply transformer, 7+7 pin vertical coil, matched ferrite cores also available.


Quick Details

Part Number: MCT-EE3302

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EE33 High Power Ferrite Core Bobbin 14 Pins

Applications: switching power supply transformers, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype ID:  live:sales003_125

Contact: Miss Lily



Product Specification

High voltage transformer EE33
