EEL25 Horizontal High Frequency Transformer Bakelite Bobbin 7+7 Pin

EEL25 horizontal bakelite bobbin. High frequency EEL25 coil former. Phenolic bobbin. Parallel distance=27.2mm. Pin pitch=4mm. Bobbin Size=32.8mmX30.9mmX19.9mm. Dip bobbin. We can make bobbin tooling.



Hot selling EEL25 high frequency bobbin(coil former), good quality 7+7 pin EEL25 horizontal coil bobbin. Custom design acceptable, we can provide samples for the testing, any requests, welcome to contact us.


Quick Details

Part Number: MCT-EEL2501(H7+7P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EEL25 Horizontal High Frequency Transformer Bakelite Bobbin 7+7 Pin

Product Range: Transformers, inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

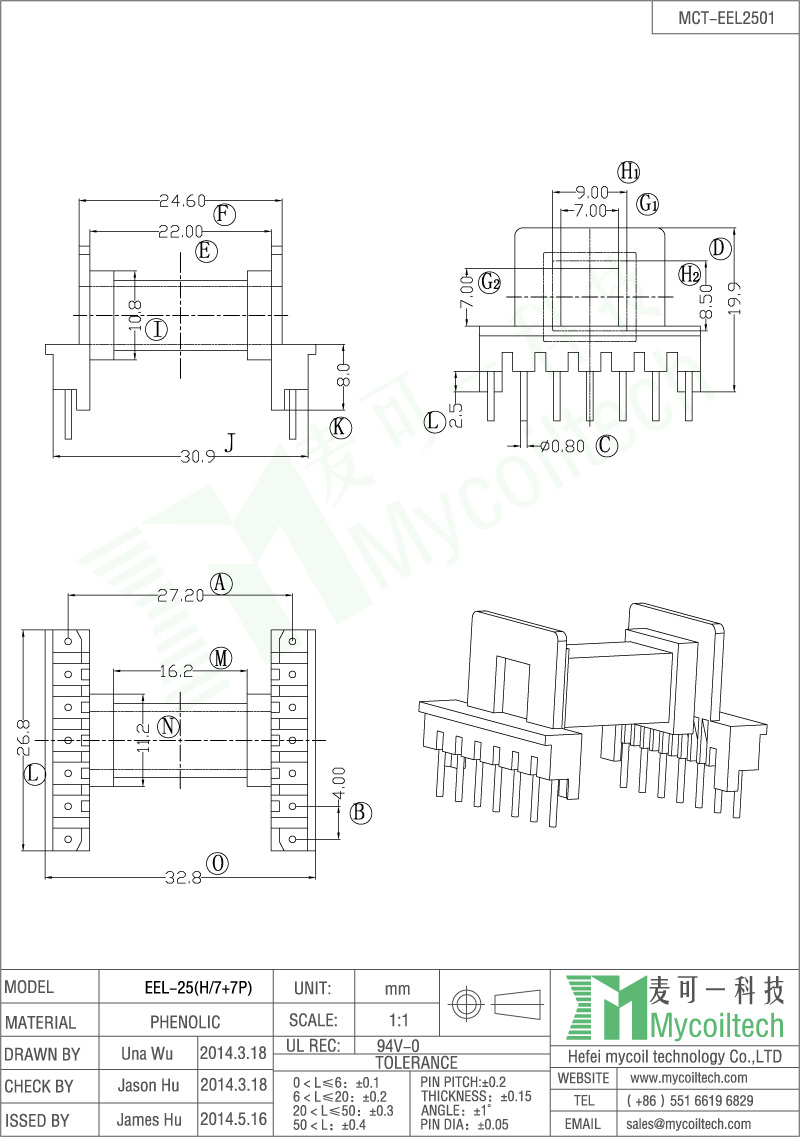

Lead Free EEL25 Bobbins Horizontal 7+7 Pin Bobbin
