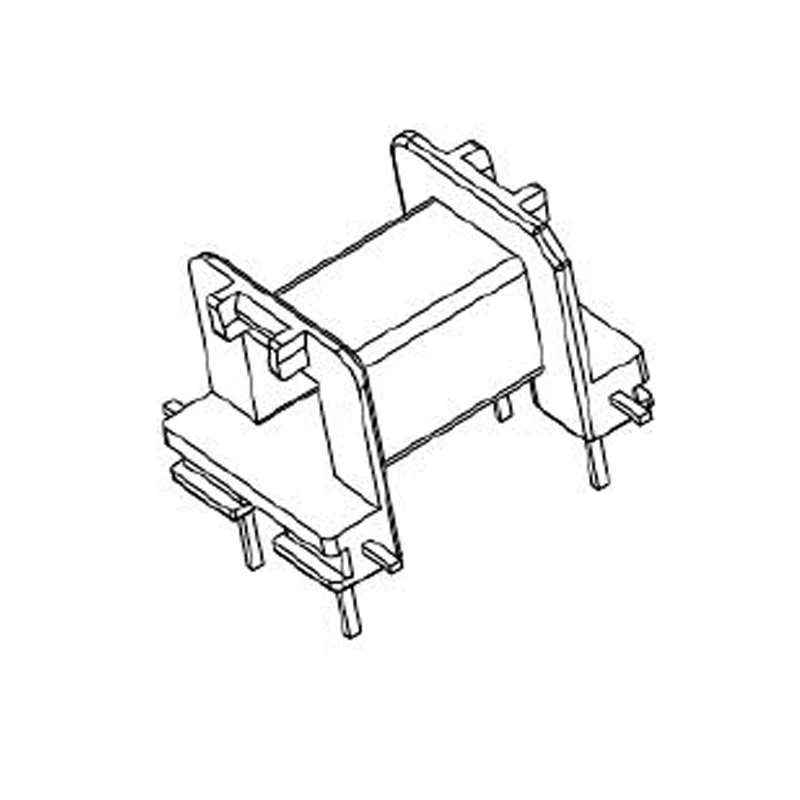

EF12.6 Horizontal High Power Transformer Bobbin

EF12.6 high frequency current transformer for amplifier and electronics. 5+5 pins horizontal coil former. Bobbin Size=12.8mmX11.7mmX8.3mm. Pin pitch=5.0mm. Parallel Distance=10.0mm. We can make new tooling to meet special size. Use export standard carton with strong pallet to package.



2+2 pins L pin transformer bobbin, EF12.6 horizontal L pin bobbin, final electronic transformer and matched ferrite cores are available.


Quick Details

Part No: MCT-EF12.6-07

Brand Name: MCT

Material: Phenolic

Color: Black, White

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF12.6 Horizontal High Power Transformer Bobbin

Standard parts: Transformers, Inductor, current transformers, magnetic cores.

Applications: Switching power supply transformer, LED drive transformer, flyback transformer.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: We use TNT/Fedex/UPS/DHL for goods door to door service, By air,By ship, etc.


Product Specification

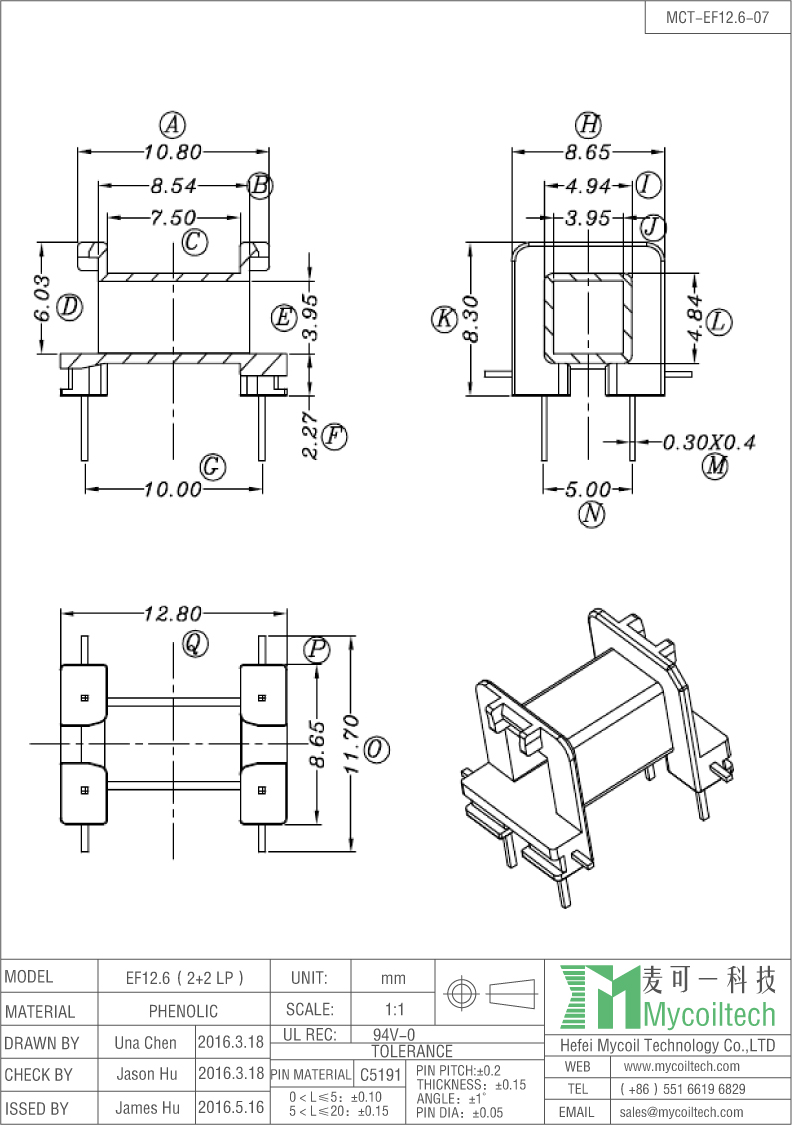

DIP transformer bobbin EF12.6


For more details, welcome to contact us.
