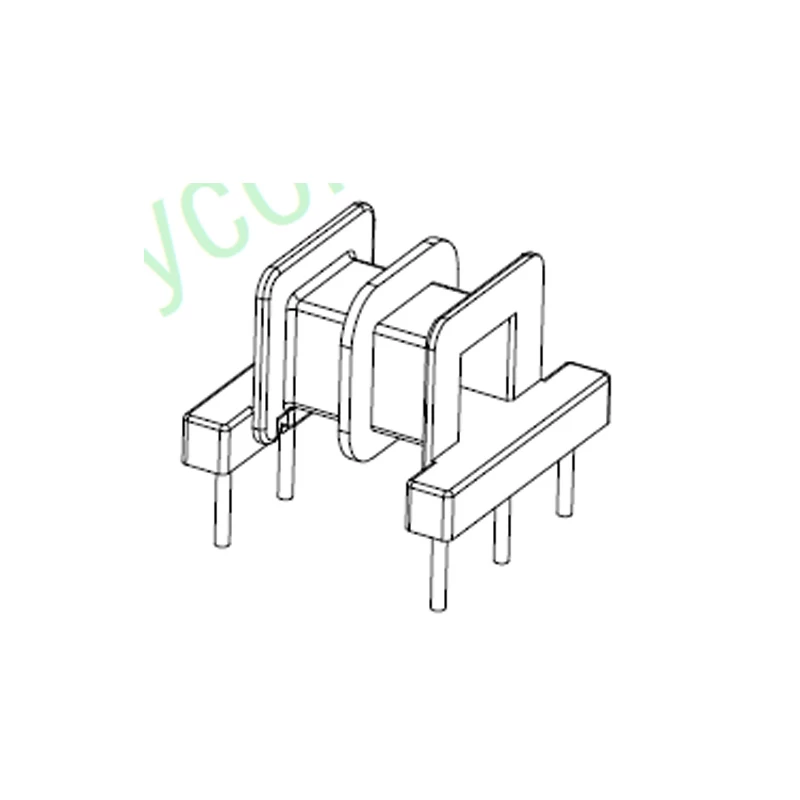

EF12.6 Transformer Bobbin Horizontal Bobbin With 4+4 Pins

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0

Pin Pitch=5.05mm Parallel Distance=10.3mm

Size=13mmX12.8mmX8.3mm







we have a research team consists of five engineers so we are able to design the products according to customer's need.custom made and design service is available.



Quick Details

Place of Origin: Hefei,China(Mainland)

Custom Made: Available

Material:Phenolic

Part Number: MCT-EF12.6-05(H4+4P)

Brand Name: MCT

Color: black

Certification: ISO9001,ROHS,CE

Packing: Carton,can be customized

OEM: Available

Lead Time: 25 days after payment

Logo: Can be customized

MOQ: Any quantity


Part Information

Product Name: EF12.6 Transformer Bobbin Horizontal Bobbin With 4+4 Pins.

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air ,By ship ,etc.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.


Contact: Miss Qian Gao

Email: qian.gao@mycoiltech.com

Skype: live:qian.gao_5

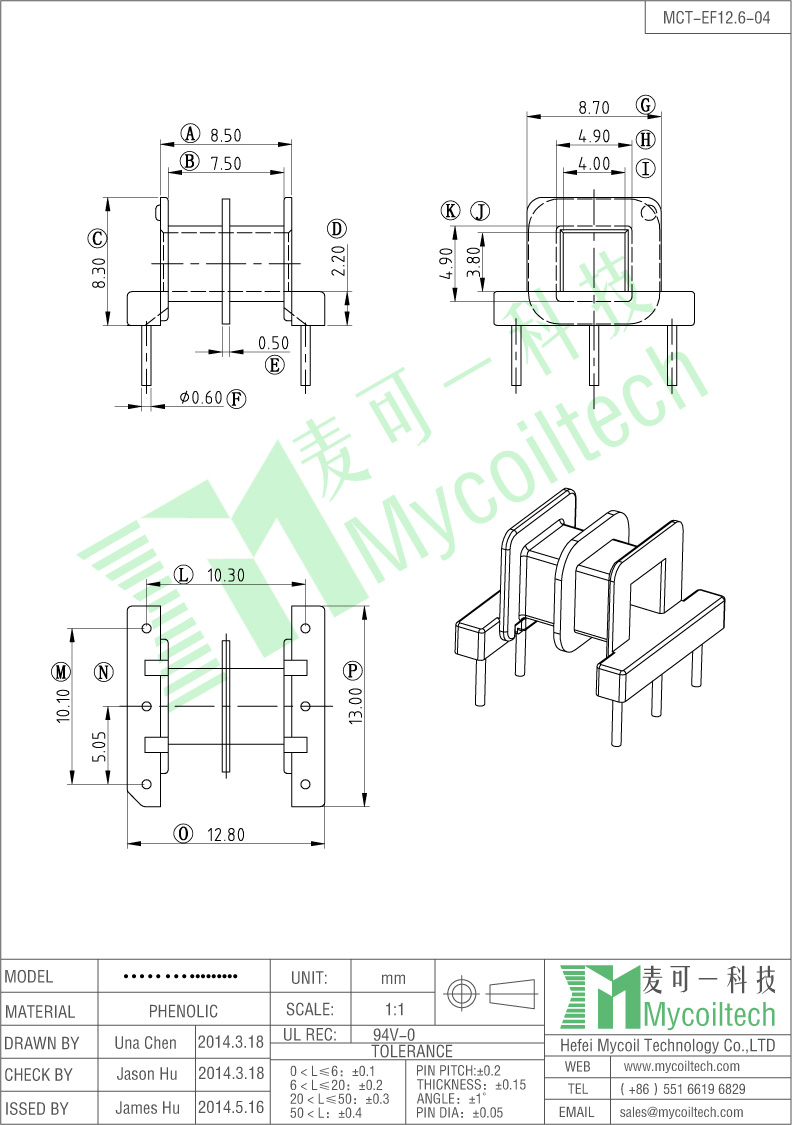

Product SpecificationEF12.6 Transformer Bobbin Horizontal Bobbin
