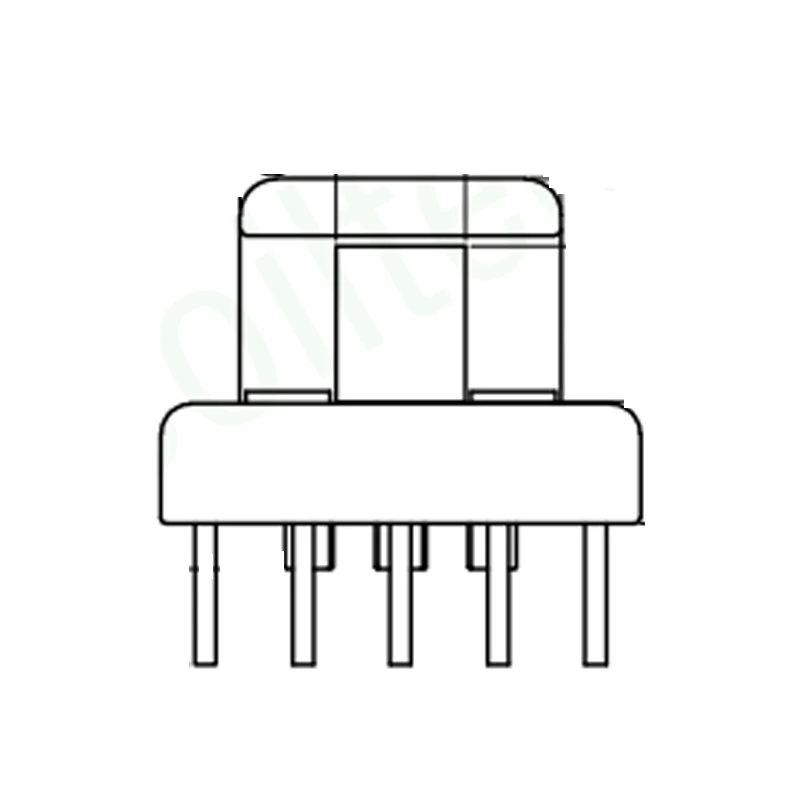

EF16 Horizontal Transformer Bobbin Dip Bobbin With 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0

Pin Pitch=3.25mm Parallel Distance=15.5mm

Size=18.6mmX16mmX11.5mm



EF16 transformer bobbin ,horizontal Bobbin,5+5 pins,dip bobbin,custom made is available,for transformers inductors choke coils,if any requests send us email.



Quick Details

Place of Origin:Hefei,China(Mainland)



Custom Made: Available



Material:Phenolic

Part Number: MCT-EF1634(H5+5P)



Brand Name: MCT



Color: black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name: EF16 Horizontal Transformer Bobbin Dip Bobbin With 5+5 Pins.

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air ,By ship ,etc.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Miss Qian Gao

Email: qian.gao@mycoiltech.com

Skype: live:qian.gao_5

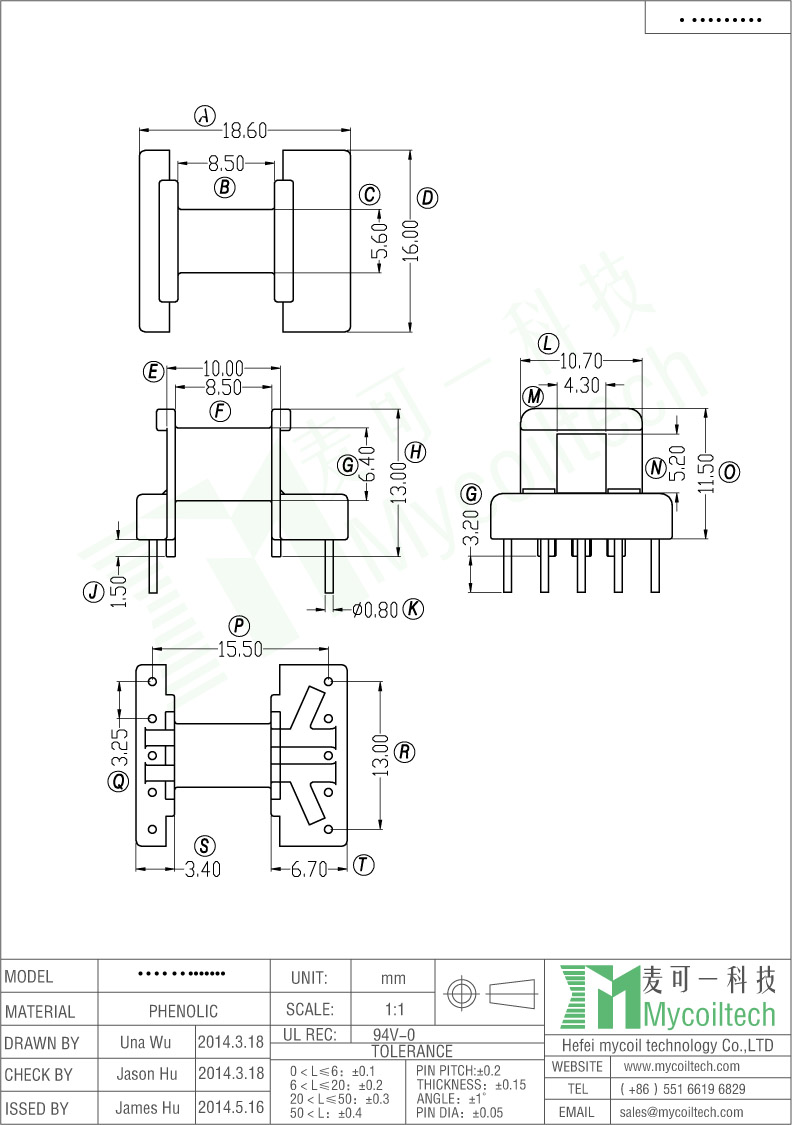

Product SpecificationEF16 Horizontal Transformer Bobbin Dip Bobbin
