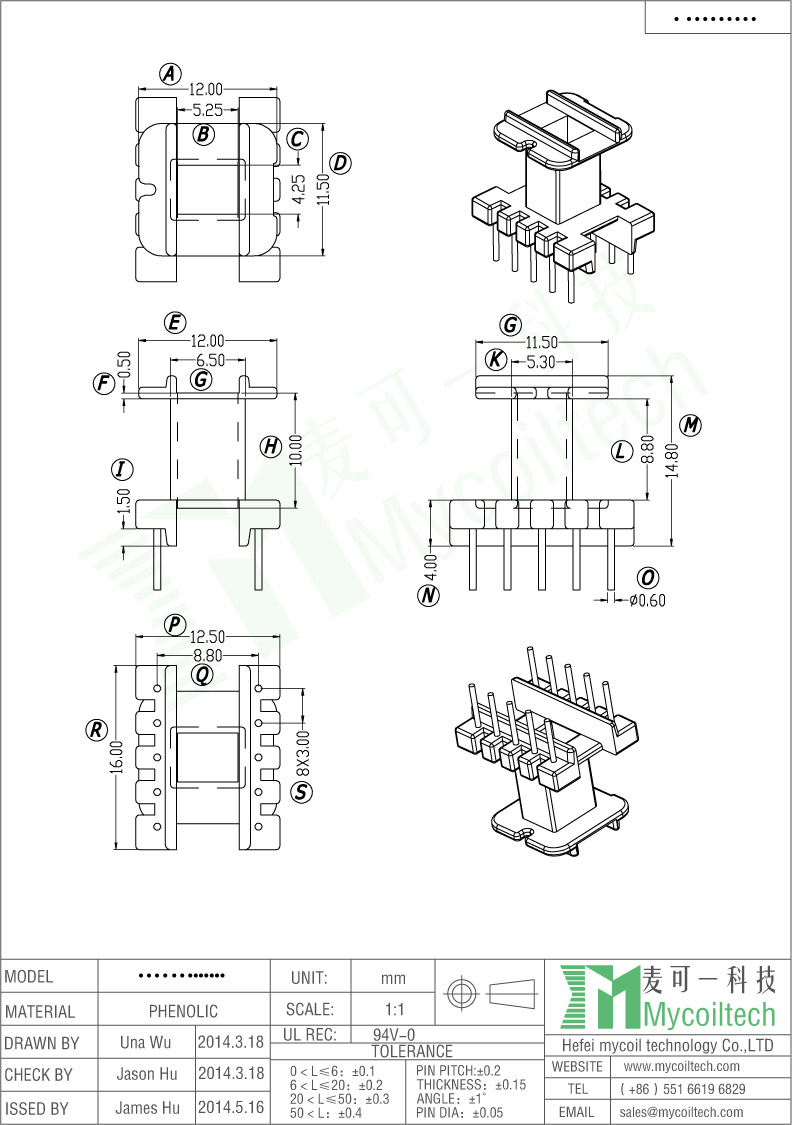

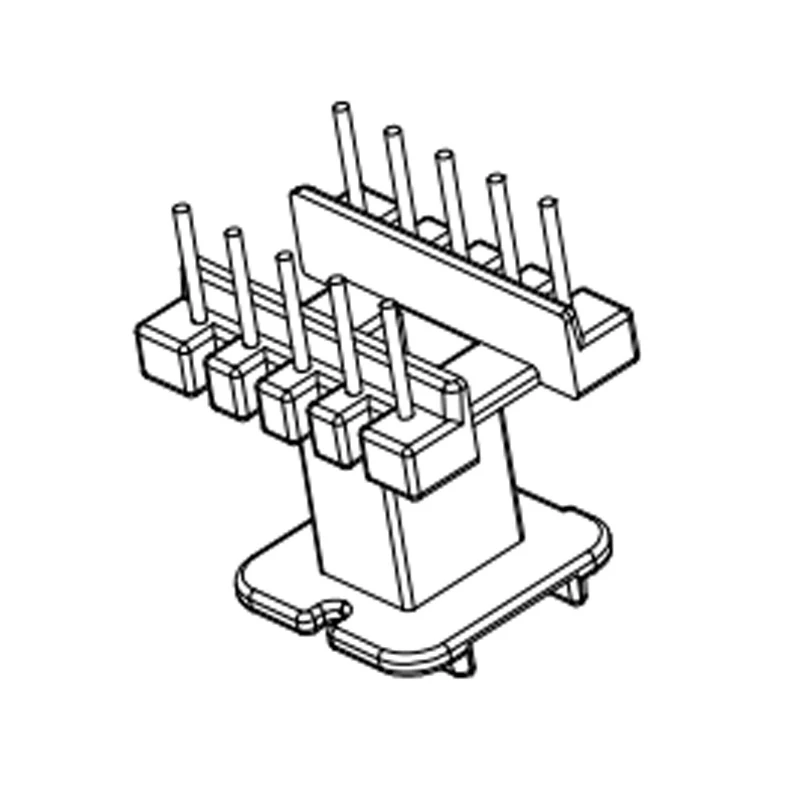

EF16 Vertical Transformer Bobbin Dip Bobbin Phenolic Material

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0

Pin Pitch=3mm Parallel Distance=8.8mm

Size=16mmX12.5mmX14.8mm



EF16 bobbin ,vertical Bobbin,5+5 pins,for transformers inductors choke coils,we located in HeFei which is one of the largest electric components manufactures in AnHui province.



Quick Details

Place of Origin:Hefei,China(Mainland)



Custom Made: Available



Material:Phenolic

Part Number: MCT-EF1650(V5+5P)



Brand Name: MCT



Color: black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name: EF16 Vertical Transformer Bobbin Dip Bobbin Phenolic Material.

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air ,By ship ,etc.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Miss Qian Gao

Email: qian.gao@mycoiltech.com

Skype: live:qian.gao_5



Product Specification

EF16 Vertical Transformer Bobbin Dip Bobbin
