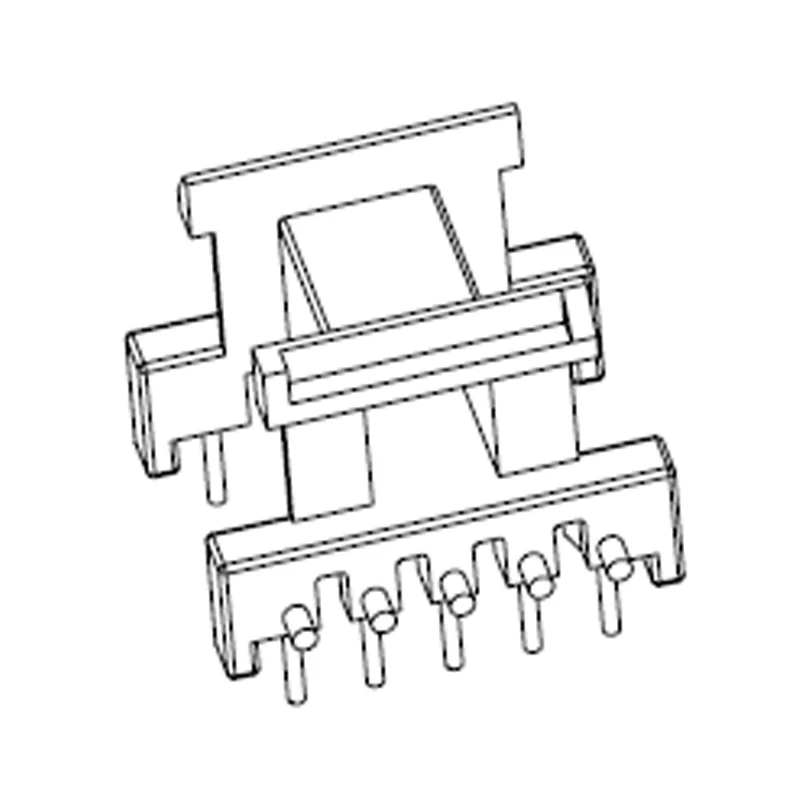

EF20 Ferrite Core Bobbin 5+5 Pins Horizontal Bobbin

Horizontal EF20 bobbin 5+5 pins. Single slot EF20 transformer bobbin. Bobbin Size=22mmX21.5mmX16.6mm. Parallel Distance=15.2mm. Pin pitch=3.8mm. Phenolic material EF20 bobbin. DIP transformer bobbin.



Transformer bobbin factory direct selling 5+5 pin EF20 horizontal bobbin, fast delivery time and good product service, custom design and OEM service also acceptable.


Quick Details

Part No: MCT-EF2006

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF20 Ferrite Core Bobbin 5+5 Pins Horizontal Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

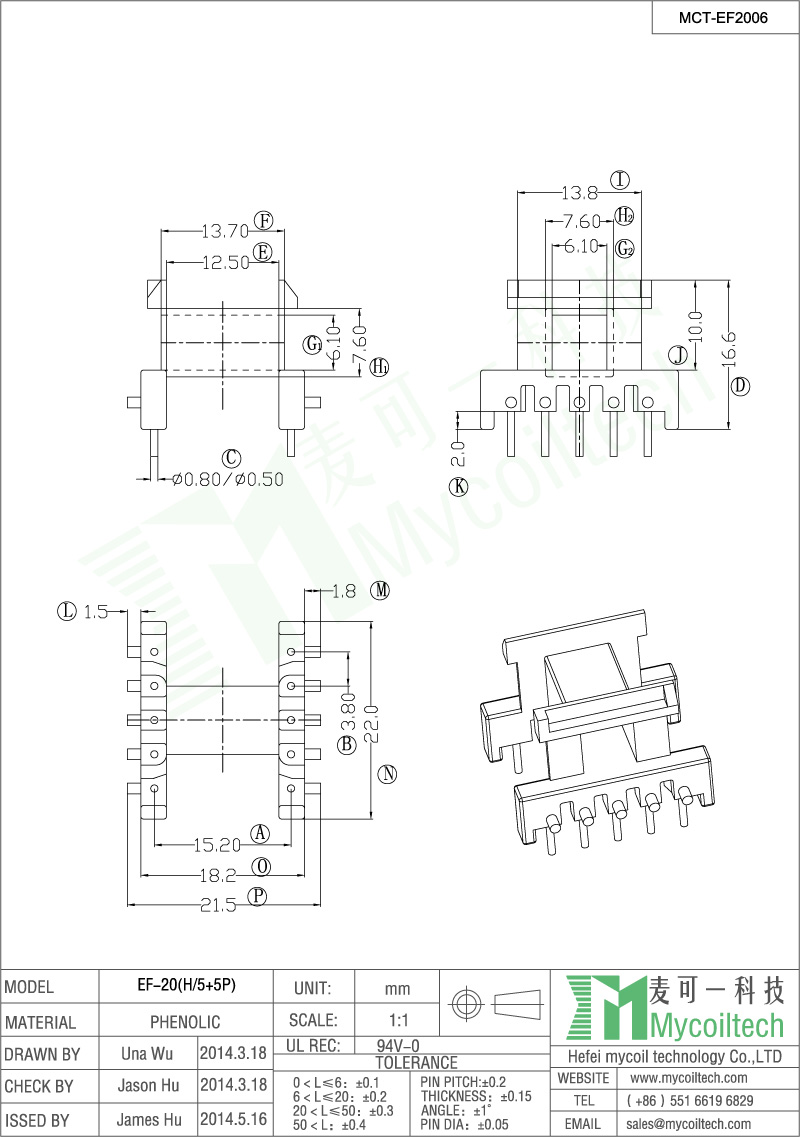

Product Specification

EF2006 horizontal bobbin 10 pin
